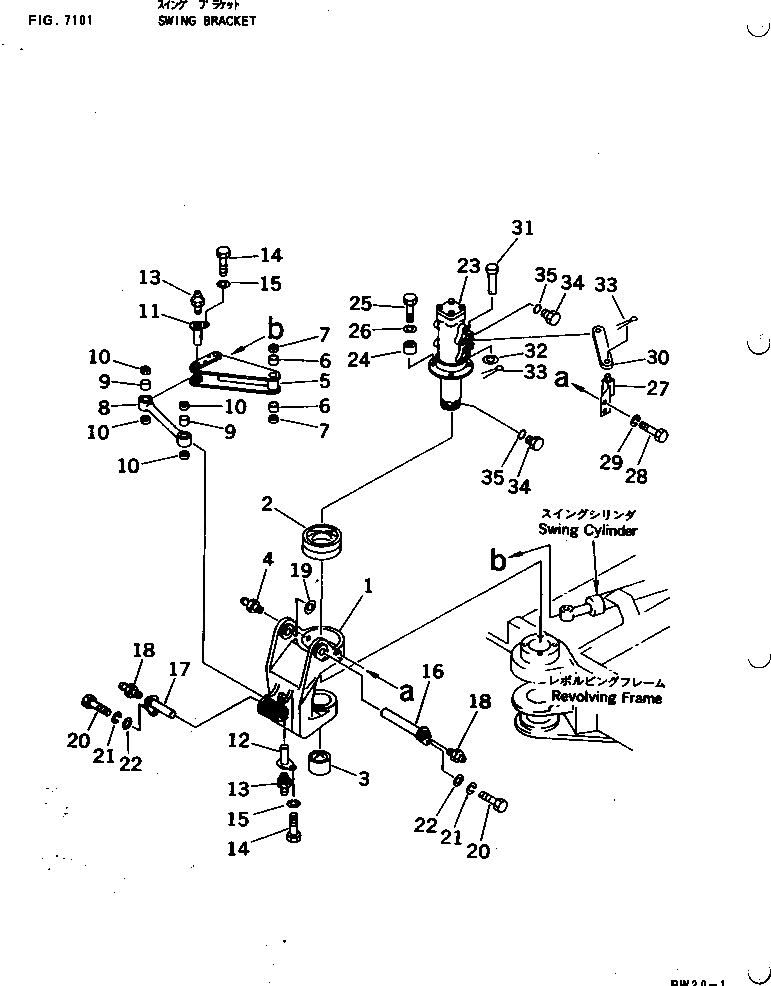

Запчасти Komatsu PW30T-1 ПОВОРОТН. БЛОК РАБОЧЕЕ ОБОРУДОВАНИЕ

|1

20R-70-00130

SWING BRACKET ASS'Y

1

BRACKET

2

20S-70-21420

BUSHING

3

20S-70-21430

BUSHING

4

07020-00000

FITTING,GREASE

|5

20S-70-00150

LINK ASS'Y

5

LINK

6

07143-10304

BUSHING

7

07145-00035

SEAL,DUST

|8

20S-70-00170

ROD ASS'Y

8

ROD

9

07143-10304

BUSHING

10

07145-00035

SEAL,DUST

11

20S-70-21360

PIN

12

20S-70-21350

PIN

13

07020-00000

FITTING,GREASE

14

01010-51225

BOLT

15

01602-21236

WASHER,SPRING

16

20R-70-11163

PIN

17

20R-70-11171

PIN

18

07020-00000

FITTING,GREASE

19

20R-70-11260

SPACER¤ 1.0MM

20

01010-51230

BOLT

21

01602-21236

WASHER,SPRING

22

01643-31232

WASHER

23

703-07-13102

SWIVEL JOINT ASS'Y,(SEE FIG.7111)

|23

703-07-13101

SWIVEL JOINT ASS'Y,(SEE FIG.7111)

24

207-54-15180

SPACER

25

01010-51025

BOLT

26

01602-21030

WASHER,SPRING

27

20S-60-21410

BRACKET

28

01010-51025

BOLT

29

01602-21030

WASHER,SPRING

30

20S-60-21420

LINK

31

201-60-11230

PIN

32

01641-21626

WASHER

33

04050-14025

PIN,COTTER

34

07040-11812

PLUG

35

07002-11823

O-RING
