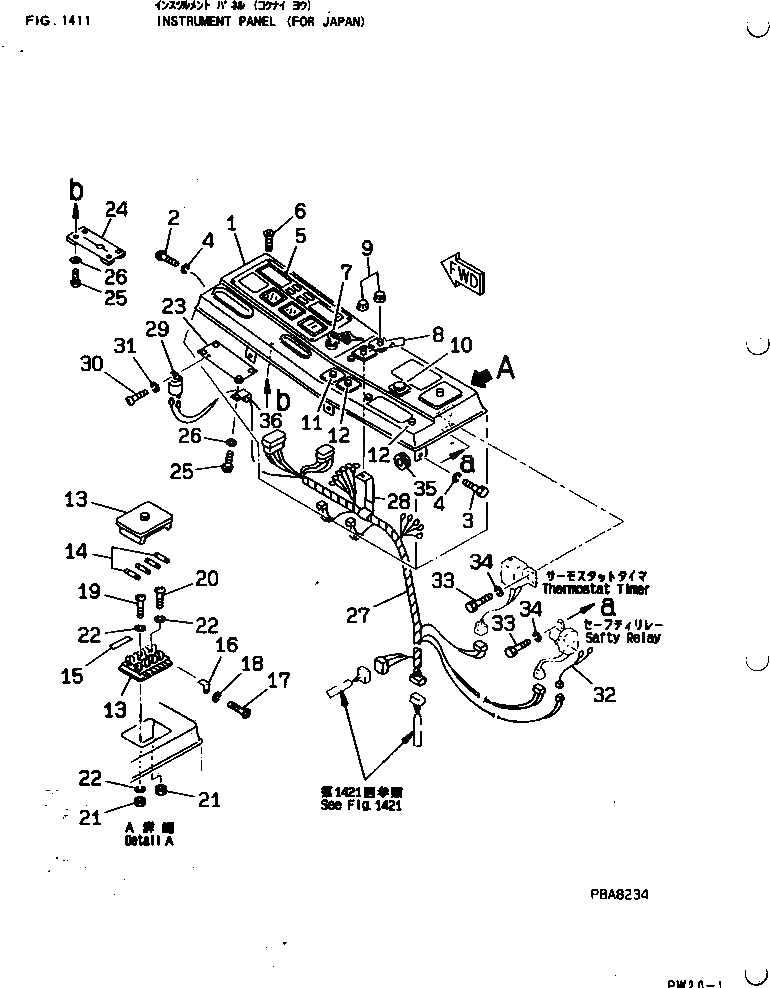

Запчасти Komatsu PW30T-1 ПАНЕЛЬ ПРИБОРОВ (ДЛЯ ЯПОН.) КОМПОНЕНТЫ ДВИГАТЕЛЯ И ЭЛЕКТРИКА

1

20S-06-21260

PANEL

2

01220-40820

SCREW

3

01010-50820

BOLT

4

01602-20825

WASHER,SPRING

5

20S-06-21240

GAUGE ASS'Y,(SEE FIG.1413)

6

01224-70520

SCREW

7

08086-20000

SWITCH,STARTING

8

205-06-71331

SWITCH,LAMP

9

205-06-71650

KNOB

10

09415-01610

CAP

11

09415-01008

CAP

12

09415-00706

CAP

13

20S-06-21130

BOX,FUSE

14

08040-02000

FUSE¤ 20A

15

150-06-14290

TERMINAL

16

20S-06-21150

PLATE

17

01220-40406

SCREW

18

01601-20410

WASHER,SPRING

19

01220-40525

SCREW

20

01220-40520

SCREW

21

01580-10504

NUT

22

01601-20513

WASHER,SPRING

23

21E-06-12110

COVER

24

20S-06-21170

PLATE

25

01220-40510

SCREW

26

362-54-23680

WASHER

27

21E-06-13222

WIRE ASS'Y

|27

21E-06-13221

WIRE ASS'Y

|27

21E-06-13220

WIRE ASS'Y

28

20S-06-21180

CLIP

29

08077-21201

FLASHER

30

01220-40408

SCREW

31

01601-20410

WASHER,SPRING

32

20S-06-21380

WIRE

33

01010-50610

BOLT

34

01602-20619

WASHER,SPRING

35

08037-02512

GROMMET

36

08035-01510

CLIP
