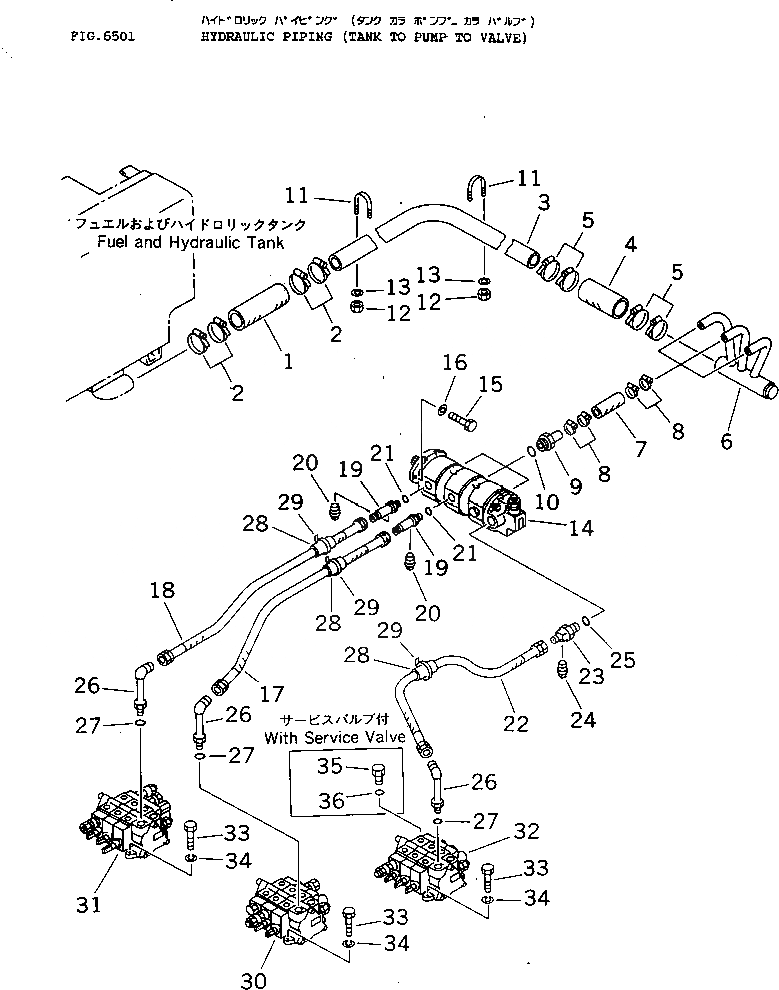

Запчасти Komatsu PW30T-1 ГИДРОЛИНИЯ (ИЗ БАКА В НАСОС - КЛАПАН) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

1

07260-04117

HOSE

2

07281-00609

CLAMP

3

21E-62-11121

TUBE

4

07260-04114

HOSE

5

07281-00609

CLAMP

6

21E-62-11190

TUBE

7

21E-62-11140

HOSE

8

07281-00359

CLAMP

9

21E-62-11180

NIPPLE

10

22W-62-13420

O-RING

11

07283-24346

CLIP

12

01599-01011

NUT

13

01643-31032

WASHER

14

21E-60-12110

PUMP ASS'Y,(SEE FIG.6101)

15

07372-21030

BOLT

16

01643-31032

WASHER

17

21E-62-11230

HOSE

18

20T-62-61220

HOSE

19

20T-62-61210

NIPPLE

20

07042-30108

PLUG

21

07000-12018

O-RING

22

07108-20405

HOSE

23

21E-62-11220

NIPPLE

24

07042-30108

PLUG

25

22W-62-13420

O-RING

26

21E-62-11210

ELBOW

27

07000-12014

O-RING

28

20S-62-23240

CUSHION

29

08034-00519

BAND

30

21E-60-12220

VALVE ASS'Y,FRONT L.H. (SEE FIG.6201)

31

21E-60-12210

VALVE ASS'Y,FRONT R.H. (SEE FIG.6211)

32

21E-60-12230

VALVE ASS'Y,REAR (SEE FIG.6221)

|32

21F-60-12250

VALVE ASS'Y,(SEE FIG.6225)

|32

21F-60-12230

VALVE ASS'Y,(SEE FIG.6227)

33

01010-50830

BOLT

34

01602-20825

WASHER,SPRING

35

21F-60-12240

PLUG,(FOR SERVICE VALVE)

36

07000-12014

O-RING,(FOR SERVICE VALVE)
