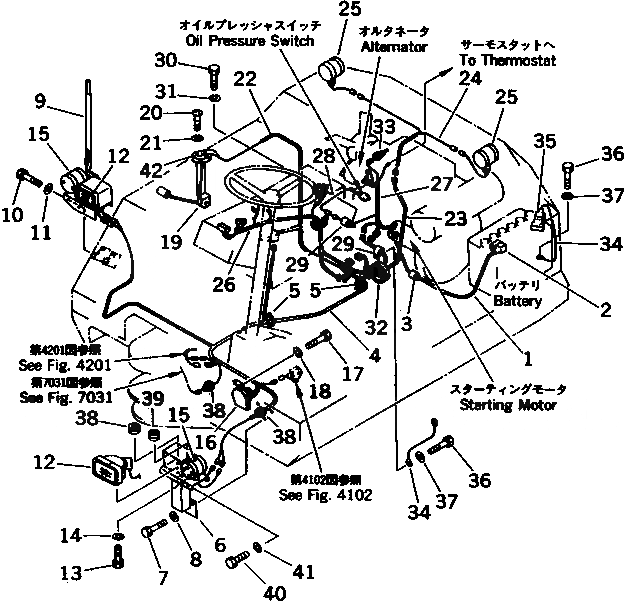

Запчасти Komatsu PW30-1 ЭЛЕКТРИКА(№79-) КОМПОНЕНТЫ ДВИГАТЕЛЯ И ЭЛЕКТРИКА

1

20S-06-21430

WIRE

2

20S-06-13230

CAP

3

08036-02514

CLIP

4

21E-06-13211

WIRE ASS'Y

5

08034-00536

BAND

6

21E-06-11141

BRACKET,L.H.

7

01010-50825

BOLT

8

01643-30823

WASHER

9

21E-06-11151

BRACKET,R.H.

10

01010-51020

BOLT

11

01643-31032

WASHER

12

21E-06-11120

LAMP,HEAD

|12

EDBY-2047210-2

BULB

13

01010-50610

BOLT

14

01642-20608

WASHER

15

21E-06-11130

LAMP,TURN SIGNAL

|15

SRBF141-45771A

BULB

16

362-06-23190

HORN

17

01010-50816

BOLT

18

01602-20825

WASHER,SPRING

19

21E-06-11110

SENSOR,FUEL

20

01220-40408

SCREW

21

01601-20410

WASHER,SPRING

22

08017-30705

CONDUIT,FLEXIBLE

23

21E-06-13160

WIRE

24

21E-06-13170

WIRE ASS'Y

25

21E-06-11130

LAMP,TURN SIGNAL

|25

SRBF141-45771A

BULB

26

21E-06-13222

WIRE ASS'Y

27

21E-06-13192

WIRE ASS'Y

28

20S-06-13210

WIRE

29

08036-01414

CLIP

30

01010-51016

BOLT

31

01602-21030

WASHER,SPRING

32

08037-05016

GROMMET

33

198-06-11940

SENSOR,WATER TEMPERATURE

34

20R-06-11240

WIRE

35

08038-22009

CAP

36

01010-51016

BOLT

37

01642-21016

WASHER

38

08037-01008

GROMMET

39

08037-01610

GROMMET

40

01010-50610

BOLT

41

01643-30823

WASHER

42

08038-00519

CAP
