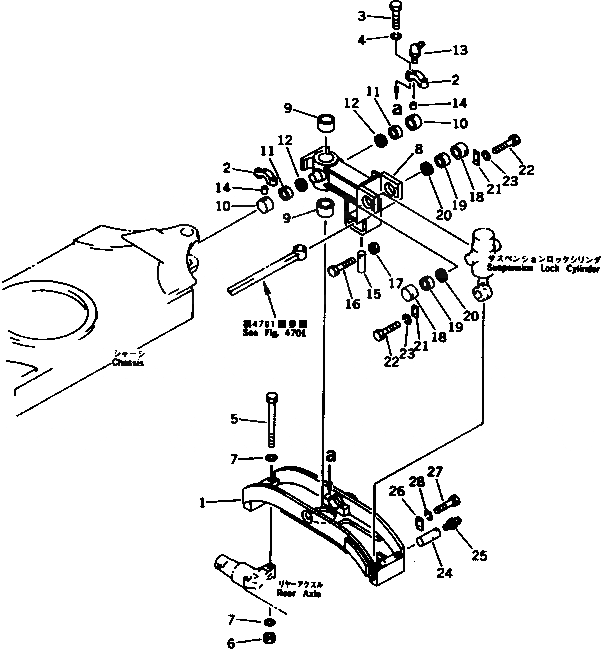

Запчасти Komatsu PW30-1 ШАССИ (/) СИСТЕМА УПРАВЛЕНИЯ¤ ОСНОВНАЯ РАМА И ШАССИ

|$0

21E-47-00061

FRAME ASS'Y,REAR

|$1

21E-47-00060

FRAME ASS'Y,REAR

|$$3

(21E-47-00061,21E-47-00051)

1

FRAME,REAR

1

FRAME,REAR

2

130-54-61420

CAP

3

01010-51460

BOLT

4

01602-21442

WASHER,SPRING

5

01011-52485

BOLT

6

01598-02425

NUT

7

01643-22460

WASHER

|$11

21E-47-00051

SUPPORT ASS'Y

|$12

21E-47-00050

SUPPORT ASS'Y

|$$14

(21E-47-00051,21E-47-00061)

8

SUPPORT

8

SUPPORT

9

07143-10606

BUSHING

10

130-54-61440

HOUSING

11

130-54-61450

BUSHING

12

07145-00045

SEAL,DUST

13

07020-00675

FITTING,GREASE

14

170-70-15190

PIN,DOWEL

15

21E-47-11280

PIN

16

01010-51075

BOLT

17

01598-01011

NUT

18

21E-47-11180

CAP

19

130-54-61450

BUSHING

20

07145-00045

SEAL,DUST

21

04082-00306

LOCK

22

01010-51225

BOLT

23

01602-21236

WASHER,SPRING

24

103-70-21320

PIN

25

07020-00000

FITTING,GREASE

26

113-70-21280

LOCK

27

01010-51020

BOLT

28

01602-21030

WASHER,SPRING
