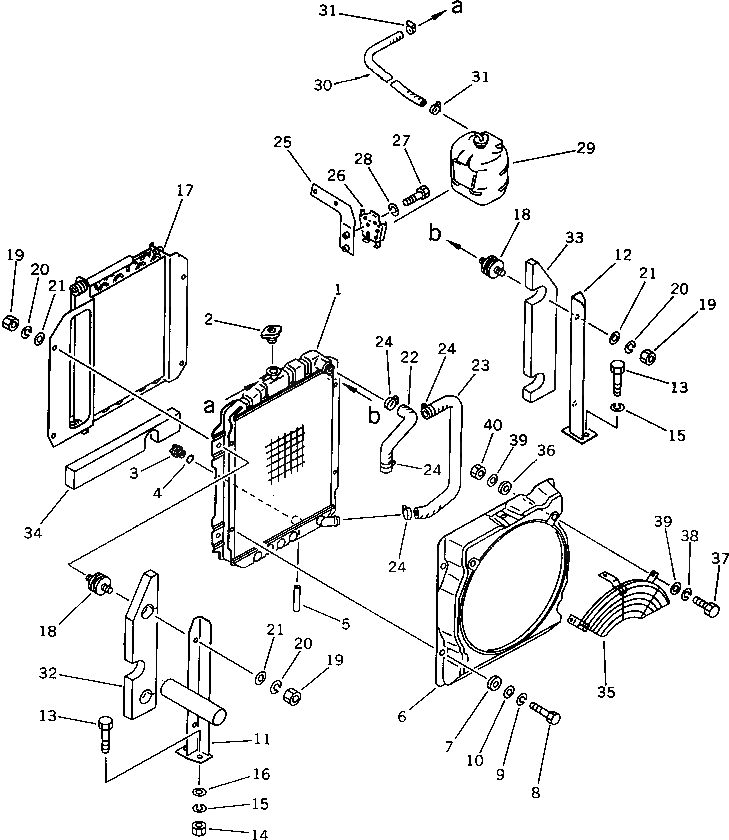

Запчасти Komatsu PW30-1 РАДИАТОР И ТРУБЫ(№-7) КОМПОНЕНТЫ ДВИГАТЕЛЯ И ЭЛЕКТРИКА

|$0

21E-03-00010

RADIATOR ASS'Y

1

20S-03-11212

CORE ASS'Y

2

20S-03-11250

CAP

3

20N-03-11181

PLUG

4

07000-01007

O-RING

5

07270-00820

TUBE

6

20S-03-21110

SHROUD

7

20S-03-11270

COLLAR

8

01010-50820

BOLT

9

01602-20825

WASHER,SPRING

10

01643-30823

WASHER

11

21E-03-11120

BRACKET,L.H.

12

20S-03-21150

BRACKET,R.H.

13

01010-51025

BOLT

14

01580-11008

NUT

15

01602-21030

WASHER,SPRING

16

01643-31032

WASHER

17

21E-03-11210

COOLER,OIL

18

20S-03-11331

CUSHION

19

01580-11008

NUT

20

01602-21030

WASHER,SPRING

21

01643-31032

WASHER

22

20S-03-12121

HOSE

23

20S-03-12111

HOSE

24

07281-00489

CLAMP

25

21E-03-11220

BRACKET

26

362-03-14120

BRACKET

27

01010-50616

BOLT

28

01602-20619

WASHER,SPRING

29

362-03-14110

TANK

29

362-03-31160

CAP

30

21K-03-12660

HOSE

31

07281-00137

CLAMP

32

21E-03-11230

SEAT

33

20S-03-21160

SEAT

34

21E-03-11240

SEAT

35

20S-03-21120

NET

36

20S-03-11270

COLLAR

37

01010-50820

BOLT

38

01602-20825

WASHER,SPRING

39

01643-30823

WASHER

40

01580-10806

NUT
