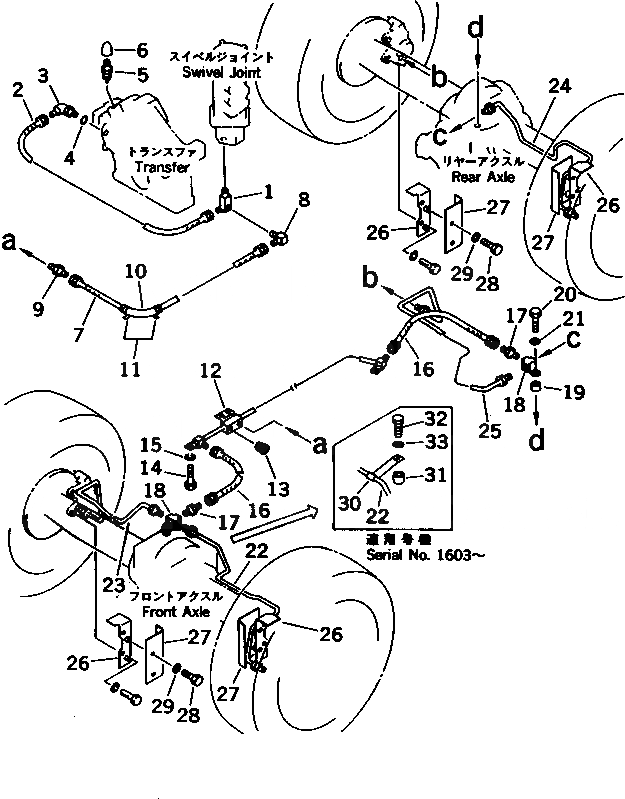

Запчасти Komatsu PW30-1 ТОРМОЗНАЯ ГИДРОЛИНИЯ (/) (С НАВЕСОМ ИЛИ КАБИНА) СИСТЕМА УПРАВЛЕНИЯ¤ ОСНОВНАЯ РАМА И ШАССИ

1

21F-43-17460

ELBOW

2

21E-62-14570

HOSE

2

07108-20205

HOSE

2

07108-20305

HOSE

3

20N-63-66190

ELBOW

3

07235-10315

ELBOW

4

07002-12034

O-RING

5

20B-27-11210

BLEEDER

6

362-43-18170

CAP

7

07108-20206

HOSE

8

234-60-22672

ELBOW

9

07238-10210

CONNECTOR

10

203-62-41150

COVER

11

08034-00519

BAND

12

21E-43-17531

TUBE

13

07043-00211

PLUG

14

01010-51020

BOLT

15

01602-21030

WASHER,SPRING

16

07108-20204

HOSE

17

21E-43-17450

NIPPLE

18

362-43-18740

JOINT

19

201-03-29160

SPACER

20

01010-50835

BOLT

21

01641-20812

WASHER

22

21E-43-17411

TUBE,L.H., FRONT

23

21E-43-17421

TUBE,R.H., FRONT

24

21E-43-17441

TUBE,L.H., REAR

25

21E-43-17431

TUBE,R.H., REAR

26

21E-43-17551

BRACKET

27

21E-43-17560

COVER

28

01010-51225

BOLT

29

01643-31232

WASHER

30

21F-43-19190

CLIP

31

201-03-29160

SPACER

32

01010-50835

BOLT

33

01643-30823

WASHER

1

21F-43-17460

ELBOW

2

21E-62-14570

HOSE

2

07108-20205

HOSE

2

07108-20305

HOSE

3

20N-63-66190

ELBOW

3

07235-10315

ELBOW

4

07002-12034

O-RING

5

20B-27-11210

BLEEDER

6

362-43-18170

CAP

7

07108-20206

HOSE

8

234-60-22672

ELBOW

9

07238-10210

CONNECTOR

10

203-62-41150

COVER

11

08034-00519

BAND

12

21E-43-17531

TUBE

13

07043-00211

PLUG

14

01010-51020

BOLT

15

01602-21030

WASHER,SPRING

16

07108-20204

HOSE

17

21E-43-17450

NIPPLE

18

362-43-18740

JOINT

19

201-03-29160

SPACER

20

01010-50835

BOLT

21

01641-20812

WASHER

22

21E-43-17411

TUBE,L.H., FRONT

23

21E-43-17421

TUBE,R.H., FRONT

24

21E-43-17441

TUBE,L.H., REAR

25

21E-43-17431

TUBE,R.H., REAR

26

21E-43-17551

BRACKET

27

21E-43-17560

COVER

28

01010-51225

BOLT

29

01643-31232

WASHER

30

21F-43-19190

CLIP

31

201-03-29160

SPACER

32

01010-50835

BOLT

33

01643-30823

WASHER
