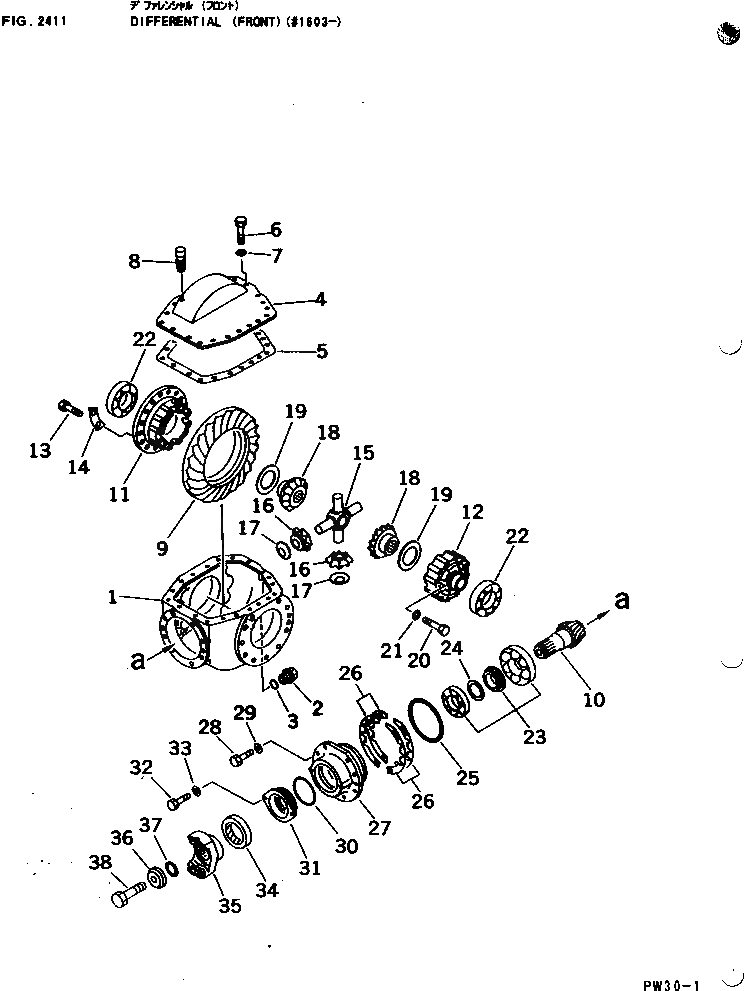

Запчасти Komatsu PW30-1 ДИФФЕРЕНЦ. (ПЕРЕДН.)(№-) ПЕРЕДАЧА¤ МОСТ И ПОВОРОТН.

|$0

21E-22-00020

AXLE ASS'Y

|$$2

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2411 TO 2413.

1

21E-22-15110

CASE

2

07044-12412

PLUG

3

07002-02434

O-RING

4

21E-22-11120

COVER

5

21E-22-11130

GASKET

6

01010-50820

BOLT

7

01643-30823

WASHER

8

07030-01030

BREATHER

|$10

21E-21-00110

GEAR ASS'Y

9

GEAR

10

SHAFT

|$13

21E-21-00120

CASE ASS'Y

11

CASE

12

CASE

13

01050-81435

BOLT

14

01643-31445

WASHER

15

20G-22-11420

SPIDER

16

20G-22-11410

PINION

17

20G-22-11440

WASHER

18

21E-21-11260

GEAR

19

20G-22-11450

WASHER

20

01010-51070

BOLT

21

01643-31032

WASHER

22

06002-32011

BEARING

23

362-21-11200

BEARING ASS'Y

24

362-21-11340

SPACER (NO.3)

24

362-21-11210

SPACER (NO.0)

24

362-21-11220

SPACER (NO.1)

24

362-21-11230

SPACER (NO.2)

25

07000-05145

O-RING

26

362-21-05010

SHIM KIT

26

SHIM, 0.15MM

26

SHIM, 0.20MM

26

SHIM, 0.50MM

27

362-21-11110

CAGE

28

01010-51235

BOLT

29

01643-31232

WASHER

30

07000-02105

O-RING

31

362-21-11120

CAGE

32

01010-50820

BOLT

33

01643-30823

WASHER

34

07012-10065

SEAL,OIL

35

21E-22-11150

YOKE

36

21E-21-13270

PLATE

37

07000-75042

O-RING

38

01050-51685

BOLT
