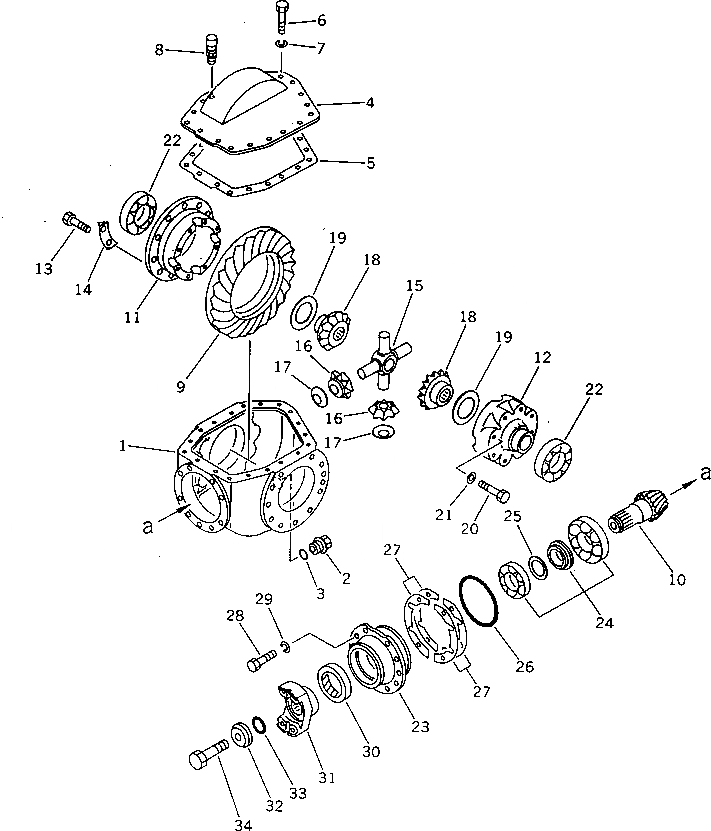

Запчасти Komatsu PW30-1 ДИФФЕРЕНЦ. (ПЕРЕДН. И ЗАДН.)(№-) ПЕРЕДАЧА¤ МОСТ И ПОВОРОТН.

|$0

21E-22-00011

AXLE ASS'Y

|$1

21E-22-00010

AXLE ASS'Y

|$$3

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2401 TO 2403.

1

21E-22-11110

CASE

2

07044-12412

PLUG

3

07002-02434

O-RING

4

361-22-11120

COVER

5

361-22-11130

GASKET

6

01010-50820

BOLT

7

01602-20825

WASHER,SPRING

8

07030-01030

BREATHER

|$11

361-22-00011

GEAR ASS'Y

9

GEAR

10

SHAFT

|$14

361-21-00011

CASE ASS'Y

|$15

361-21-00010

CASE ASS'Y

11

CASE

11

CASE

12

CASE

12

CASE

13

01050-61225

BOLT

14

361-21-11410

LOCK

15

361-21-11380

SPIDER

16

361-21-11270

GEAR

17

361-21-11320

BUSHING

18

361-21-11260

GEAR

19

361-21-11330

BUSHING

20

01010-50865

BOLT

21

01643-30823

WASHER

22

06002-30210

BEARING

23

361-21-11110

CAGE

24

361-21-11200

BEARING

25

361-21-11520

SPACER (NO. K)

25

361-21-11210

SPACER (NO. 0)

25

361-21-11220

SPACER (NO. 1)

25

361-21-11230

SPACER (NO. 2)

26

07000-02115

O-RING

27

361-21-05010

SHIM ASS'Y

27

SHIM, 0.15MM

27

SHIM, 0.2MM

27

SHIM, 0.5MM

28

01010-51030

BOLT

29

01602-21030

WASHER,SPRING

30

07012-10062

SEAL,OIL

31

361-15-13280

YOKE

32

361-21-11710

PLATE

33

07000-73035

O-RING

34

01050-61490

BOLT
