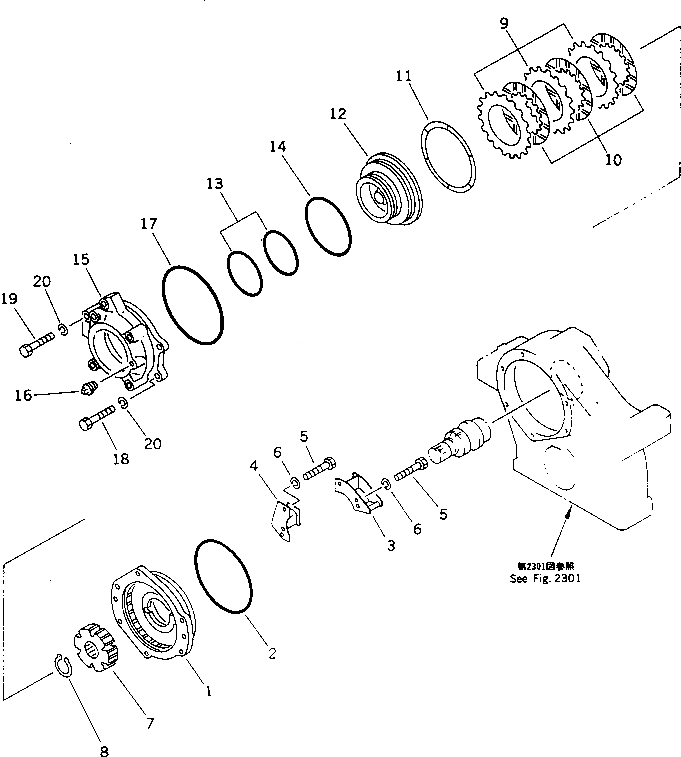

Запчасти Komatsu PW30-1 ЦЕНТР. ТОРМОЗ. ПЕРЕДАЧА¤ МОСТ И ПОВОРОТН.

|$0

21E-14-00010

TRANSFER ASS'Y

|$$2

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2301 AND 2302.

1

21F-33-11120

HOUSING

2

07000-05175

O-RING

3

21E-33-11210

COVER

4

21E-33-11220

COVER

5

01010-50816

BOLT

6

01602-20825

WASHER,SPRING

7

21E-33-11110

GEAR

8

04064-04018

RING,SNAP

9

361-33-11280

PLATE

10

363-33-11170

DISK

11

362-33-11211

SPRING

12

362-33-11163

PISTON

13

07000-15100

O-RING

14

07000-15140

O-RING

15

21F-33-11130

HOUSING

16

07042-20108

PLUG

17

07000-05180

O-RING

18

01010-51050

BOLT

19

01010-51075

BOLT

20

01602-21030

WASHER,SPRING
