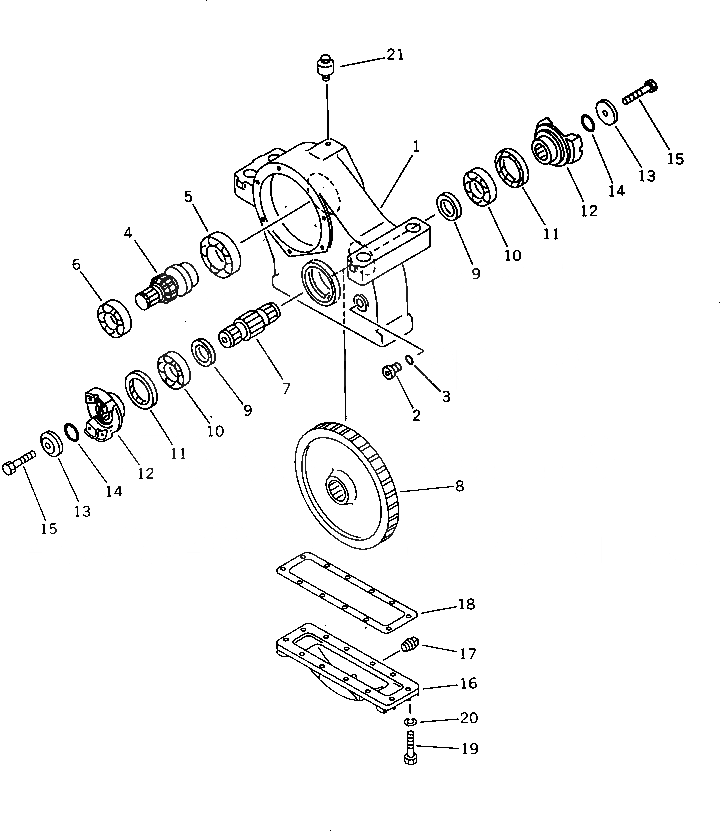

Запчасти Komatsu PW30-1 ПЕРЕДАЧА ПЕРЕДАЧА¤ МОСТ И ПОВОРОТН.

|$0

21E-14-00010

TRANSFER ASS'Y

|$$2

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2301 AND 2302.

1

21E-14-11110

CASE

2

07040-12414

PLUG

3

07002-02434

O-RING

4

21E-14-11130

SHAFT

5

06040-06211

BEARING

6

06044-00208

BEARING

7

21E-14-11150

SHAFT

8

21E-14-11140

GEAR

9

21E-14-11160

SPACER

10

06040-06208

BEARING

11

07012-00062

SEAL,OIL

12

361-15-13280

YOKE

13

361-15-13270

PLATE

14

07000-73035

O-RING

15

01050-51270

BOLT

16

21E-14-11120

COVER

17

07042-00415

PLUG

18

21E-14-11170

GASKET

19

01010-51030

BOLT

20

01602-21030

WASHER,SPRING

21

07030-00252

BREATHER
