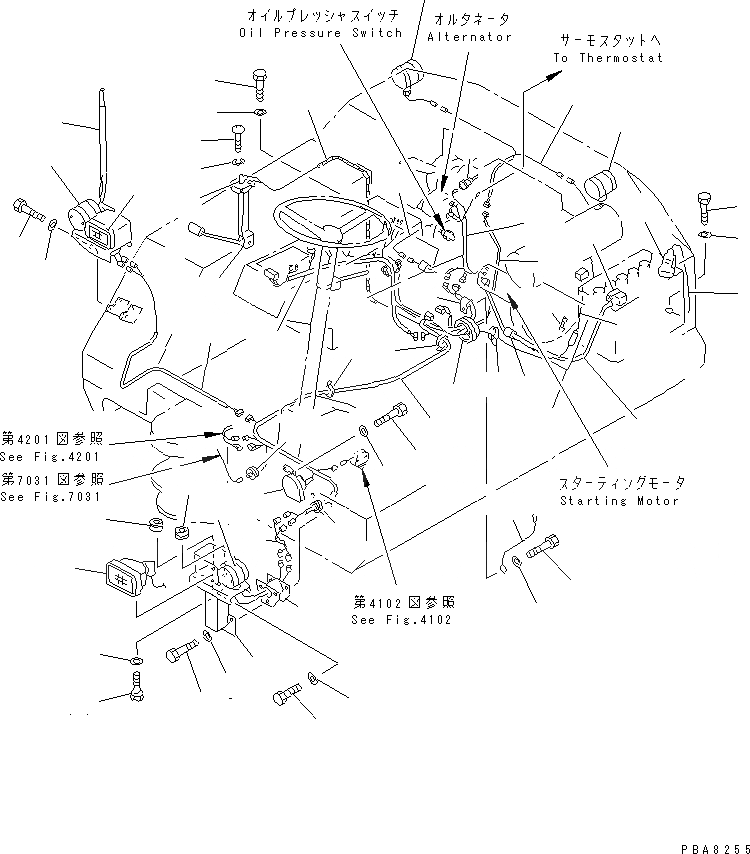

Запчасти Komatsu PW30-1 ЭЛЕКТРИКА (ДЛЯ КАБИНЫ) (КРОМЕ ЯПОН.) КОМПОНЕНТЫ ДВИГАТЕЛЯ И ЭЛЕКТРИКА

1

20S-06-21430

WIRE

2

20S-06-13230

CAP

3

08036-02514

CLIP

4

21E-06-13211

WIRE ASS'Y

4

21E-06-13210

WIRE ASS'Y

5

08034-00536

BAND

6

21E-06-13180

WIRE ASS'Y

6A

21F-06-13110

WIRE ASS'Y

7

21E-06-11141

BRACKET,L.H.

7A

21E-06-11210

BRACKET

8

01010-50825

BOLT

9

01643-30823

WASHER

10

21E-06-11151

BRACKET,R.H.

11

01010-51020

BOLT

12

01643-31032

WASHER

13

21E-06-11120

LAMP,HEAD

13

EDBY-2047210-2

BULB

14

01010-50610

BOLT

15

01642-20608

WASHER

16

21E-06-11130

LAMP,TURN SIGNAL

16

SRBF141-45771A

BULB

17

362-06-23190

HORN

18

01010-50816

BOLT

19

01641-20812

WASHER

20

21E-06-11110

SENSOR,FUEL

21

01220-40408

SCREW

22

01601-20410

WASHER,SPRING

23

08017-30705

CONDUIT,FLEXIBLE

24

21E-06-13222

WIRE ASS'Y

24

21E-06-13221

WIRE ASS'Y

24

21E-06-13220

WIRE ASS'Y

25

21E-06-13192

WIRE ASS'Y

25

21E-06-13190

WIRE ASS'Y

26

20S-06-13210

WIRE

27

08036-01414

CLIP

28

01010-51016

BOLT

29

01641-21016

WASHER

30

08037-05016

GROMMET

31

198-06-11940

SENSOR,WATER TEMPERATURE

32

20R-06-11240

WIRE

33

08038-22009

CAP

34

01010-51016

BOLT

35

01642-21016

WASHER

36

21E-06-13160

WIRE

37

21F-06-13170

WIRE ASS'Y

38

21F-06-11150

LAMP ASS'Y,TURN SIGNAL

38

SRBF004-41290A

BULB

39

21E-06-13230

WIRE

40

08040-01000

FUSE, 10A

41

08034-00414

BAND

42

08037-01008

GROMMET

43

08037-01610

GROMMET

44

01010-50610

BOLT

45

01643-30823

WASHER

46

08038-00519

CAP
