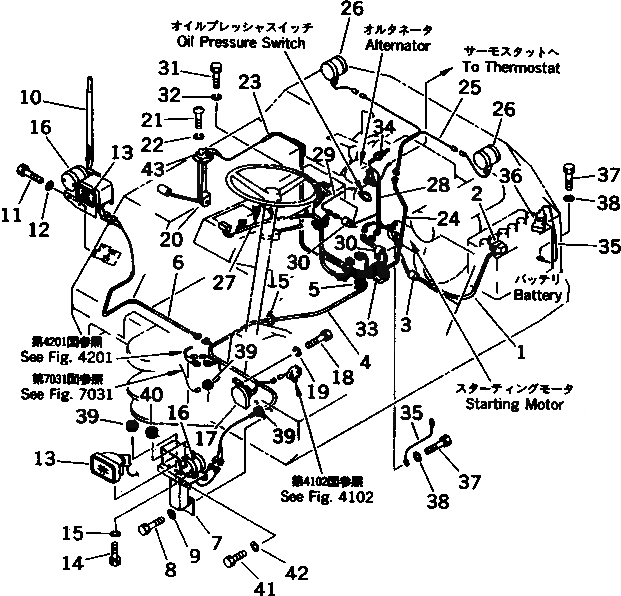

Запчасти Komatsu PW30-1 ЭЛЕКТРИКА(№-78) КОМПОНЕНТЫ ДВИГАТЕЛЯ И ЭЛЕКТРИКА

1

20S-06-21430

WIRE

2

20S-06-13230

CAP

3

08036-02514

CLIP

4

21E-06-13211

WIRE ASS'Y

4

21E-06-13210

WIRE ASS'Y

5

08034-00536

BAND

6

21E-06-13180

WIRE ASS'Y

7

21E-06-11141

BRACKET,L.H.

8

01010-50825

BOLT

9

01643-30823

WASHER

10

21E-06-11151

BRACKET,R.H.

11

01010-51020

BOLT

12

01643-31032

WASHER

13

21E-06-11120

LAMP,HEAD

13

EDBY-2047210-2

BULB

14

01010-50610

BOLT

15

01642-20608

WASHER

16

21E-06-11130

LAMP,TURN SIGNAL

16

SRBF141-45771A

BULB

17

362-06-23190

HORN

18

01010-50816

BOLT

19

01602-20825

WASHER,SPRING

20

21E-06-11110

SENSOR,FUEL

21

01220-40408

SCREW

22

01601-20410

WASHER,SPRING

23

08017-30705

CONDUIT,FLEXIBLE

24

21E-06-13160

WIRE

25

21E-06-13170

WIRE ASS'Y

26

21E-06-11130

LAMP,TURN SIGNAL

26

SRBF141-45771A

BULB

27

21E-06-13221

WIRE ASS'Y

27

21E-06-13220

WIRE ASS'Y

28

21E-06-13190

WIRE ASS'Y

29

20S-06-13210

WIRE

30

08036-01414

CLIP

31

01010-51016

BOLT

32

01602-21030

WASHER,SPRING

33

08037-05016

GROMMET

34

198-06-11940

SENSOR,WATER TEMPERATURE

35

20R-06-11240

WIRE

36

08038-22009

CAP

37

01010-51016

BOLT

38

01642-21016

WASHER

39

08037-01008

GROMMET

40

08037-01610

GROMMET

41

01010-50610

BOLT

42

01643-30623

WASHER

43

08038-00519

CAP
