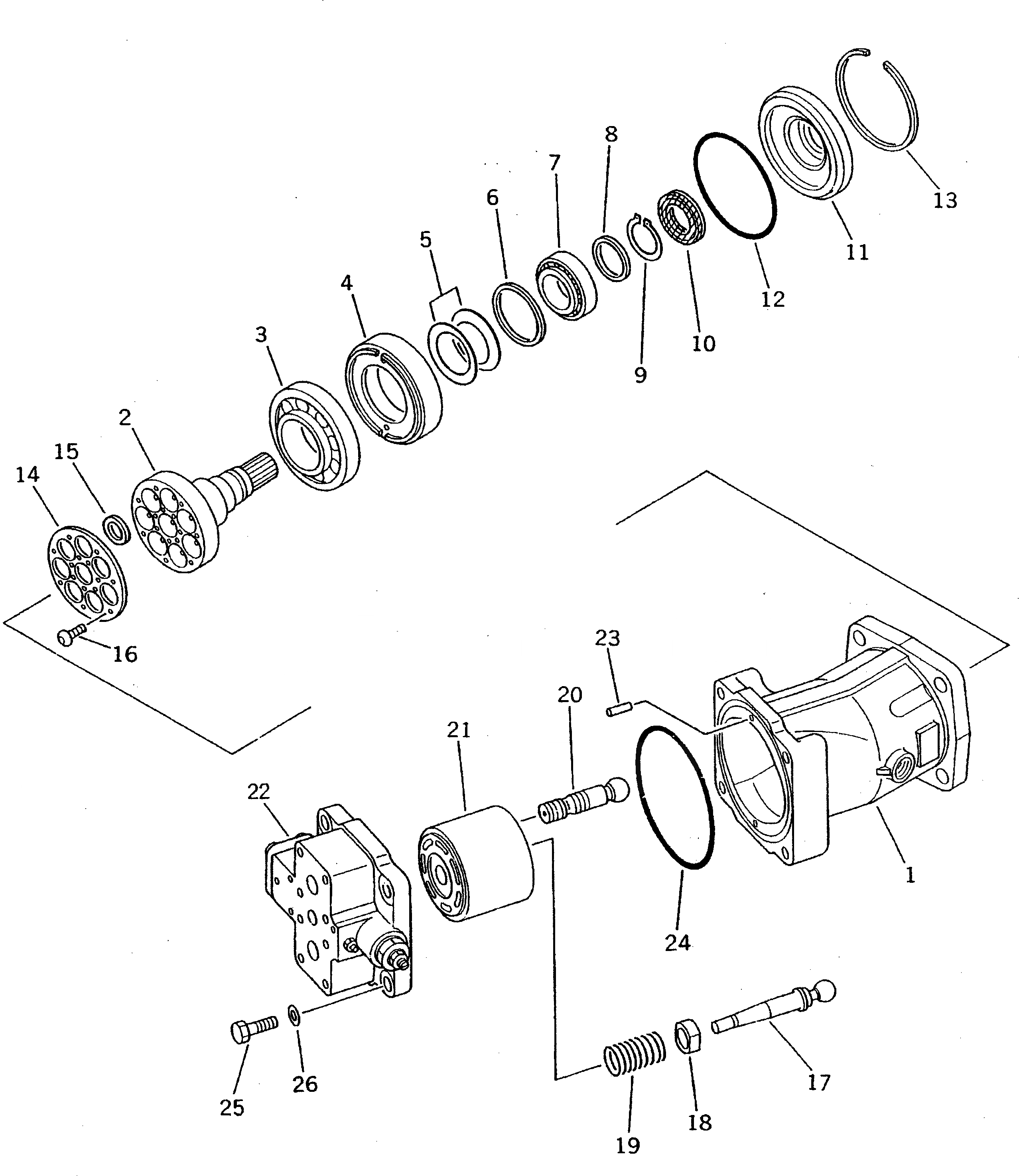

Запчасти Komatsu PW30-1 МОТОР ХОДА (МОТОР /) (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

706-86-00601

MOTOR ASS'Y,TRAVEL

|$$2

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.6301 TO 6305.

|$2

706-86-40501

MOTOR ASS'Y

|$$4

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.6302 AND 6303.

1

706-86-40811

CASE

2

706-86-40870

SHAFT,DRIVE

3

706-86-40880

BEARING

4

706-86-40061

PLATE

5

706-86-40050

SPRING

6

706-86-40040

SPACER

7

706-86-40890

BEARING

8

706-86-40030

SPACER, 5.0MM

9

04064-04518

RING,SNAP

10

706-86-40920

SEAL,OIL

11

706-86-40020

COVER

12

07000-02135

O-RING

13

706-86-40010

RING,SNAP

14

706-76-40263

RETAINER

15

706-76-40251

HOLDER

16

706-75-41271

SCREW

17

706-86-40080

SHAFT,CENTER

18

706-86-40130

RING,CENTER

19

706-86-40110

SPRING

20

706-76-42160

PISTON ASS'Y

21

706-86-40091

BLOCK,CYLINDER

22

706-86-00010

END COVER ASS'Y,END

23

04020-01024

PIN,DOWEL

24

07000-05175

O-RING

25

01010-61855

BOLT

26

01643-31845

WASHER
