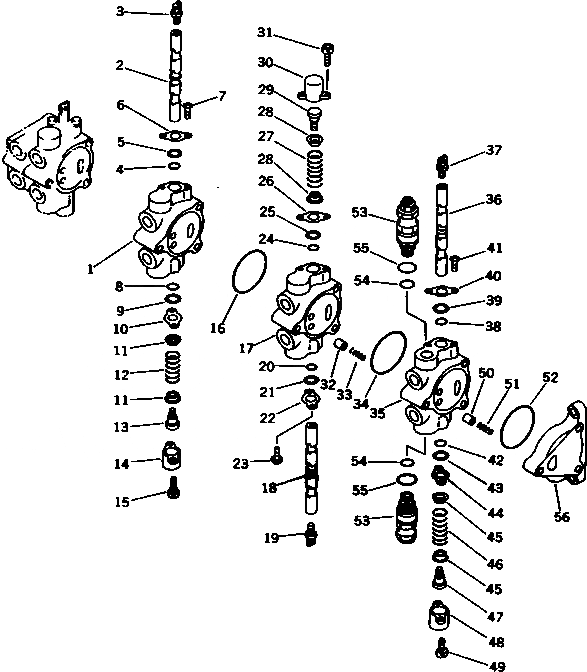

Запчасти Komatsu PW30-1 УПРАВЛЯЮЩ. КЛАПАН¤ ЗАДН. (/) (С СЕРВИСНЫМ КЛАПАНОМ) (КРОМЕ ЯПОН.) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ
№
Артикул
Название
Примечание
Количество
|$0
21F-60-12230
VALVE ASS'Y,REAR
|$$2
THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.6227 AND 6228.
|$2
KB21013-21516
SPOOL SECTION ASS'Y
1
HOUSING
2
SPOOL
3
KB21011-22253
HEAD
4
KB95111-01200
O-RING (K3)
5
KB21011-22151
WIPER (K3)
6
KB21011-21152
SEAL
7
KB91311-50102
SCREW
8
KB95111-01200
O-RING (K3)
9
KB21011-22151
WIPER (K3)
10
KB21011-21152
SEAL
11
KB21011-21251
SEAT,SPRING
12
KB21011-22457
SPRING
13
KB21011-22351
SCREW
14
KB21011-21851
CAP
15
KB92702-05121
BOLT
16
KB95151-05500
O-RING,CHECK (K3)
|$19
KB21013-21444
SPOOL SECTION ASS'Y
17
HOUSING
18
SPOOL
19
KB21011-22253
HEAD
20
KB95111-01200
O-RING (K3)
21
KB21011-22151
WIPER (K3)
22
KB21011-21152
SEAL
23
KB91311-50102
SCREW
24
KB95111-01200
O-RING (K3)
25
KB21011-22151
WIPER (K3)
26
KB21011-21152
SEAL
27
KB21011-21251
SEAT,SPRING
28
KB21011-22451
SPRING
29
KB21011-22351
SCREW
30
KB21011-21851
CAP
31
KB92702-05121
BOLT
32
KB21011-21052
VALVE,CHECK
33
KB21011-22452
SPRING
34
KB95121-05500
O-RING (K3)
|$38
KB21013-21525
SPOOL SECTION ASS'Y
35
HOUSING
36
SPOOL
37
KB21011-22253
HEAD
38
KB95111-01200
O-RING (K3)
39
KB21011-22151
WIPER (K3)
40
KB21011-21152
SEAL
41
KB91311-50102
SCREW
42
KB95111-01200
O-RING (K3)
43
KB21011-22151
WIPER (K3)
44
KB21011-21152
SEAL
45
KB21011-21251
SEAT,SPRING
46
KB21011-22451
SPRING
47
KB21011-22351
SCREW
48
KB21011-21851
CAP
49
KB92702-05121
BOLT
50
KB21011-21052
VALVE,CHECK
51
KB21011-22452
SPRING (K3)
52
KB95121-05500
O-RING
53
KB21013-20905
RELIEF VALVE ASS'Y,(185KG/CM2)
54
KB95113-01400
O-RING (K4)
55
KB95113-01800
O-RING (K4)
56
KB21011-20351
OUTLET SECTION
Выбрано товаров: 61
