Артикул
Название
Примечание
Количество
|$0
21F-60-12250
VALVE ASS'Y,REAR
|$$2

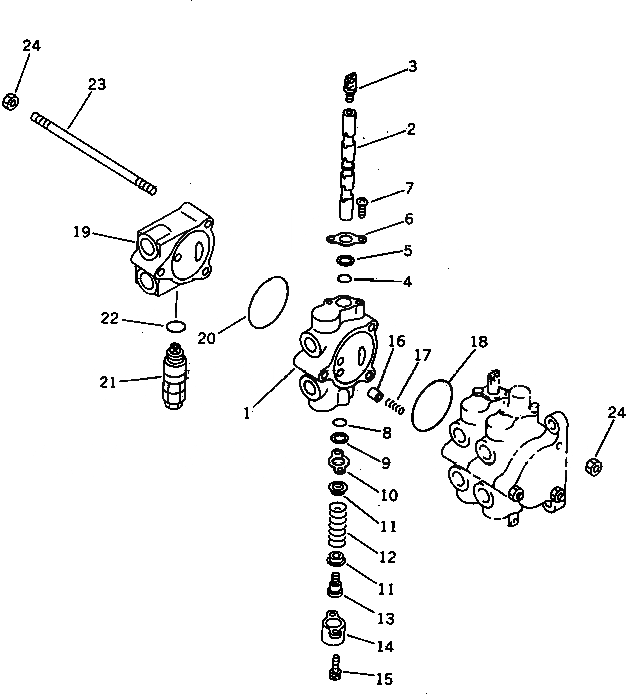

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.6225 AND 6226.
|$2
KB21013-21518
SPOOL SECTION ASS'Y
1
HOUSING
2
SPOOL
3
KB21011-22253
HEAD
4
KB95111-01200
O-RING (K3)
5
KB21011-22151
WIPER (K3)
6
KB21011-21152
SEAL
7
KB91311-50102
SCREW
8
KB95111-01200
O-RING (K3)
9
KB21011-22151
WIPER (K3)
10
KB21011-21152
SEAL
11
KB21011-21251
SEAT,SPRING
12
KB21011-22451
SPRING
13
KB21011-22351
SCREW
14
KB21011-21851
CAP
15
KB92702-05121
BOLT
16
KB21011-21052
VALVE,CHECK
17
KB21011-22452
SPRING
18
KB95121-05500
O-RING (K3)
|$21
KB21013-20161
INLET SECTION ASS'Y
19
KB21011-20156
HOUSING
20
KB95121-05500
O-RING
21
KB21013-30664
RELIEF VALVE ASS'Y
22
KB21001-00036
O-RING
23
KB21031-30104
STUD
24
KB93328-08652
NUT
Выбрано товаров: 28
