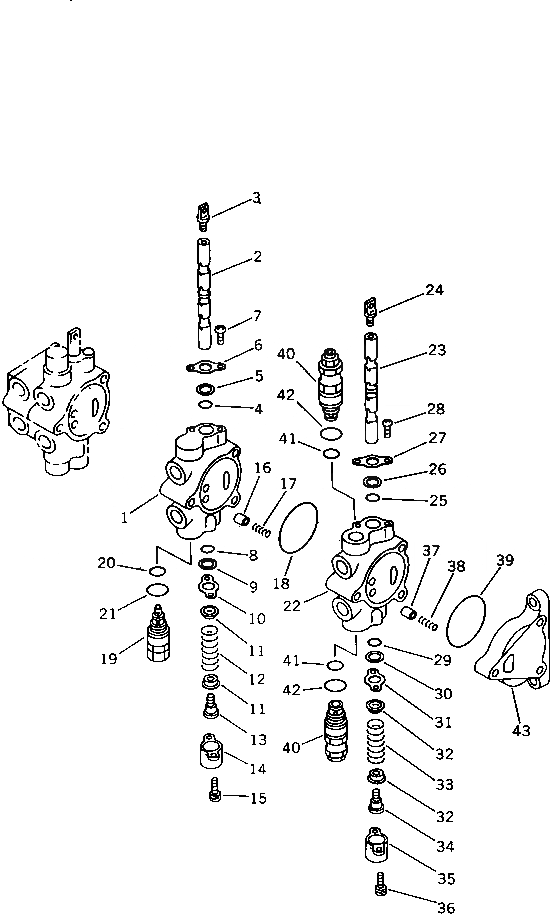

Запчасти Komatsu PW30-1 УПРАВЛЯЮЩ. КЛАПАН¤ ПЕРЕДН. ПРАВ. (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

21E-60-12210

VALVE ASS'Y,FRONT R.H.

|$$2

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.6211 AND 6212.

|$2

KB21013-21514

SPOOL SECTION ASS'Y

1

HOUSING

2

SPOOL

3

KB21011-22253

HEAD

4

KB95111-01200

O-RING (K3)

5

KB21011-22151

WIPER (K3)

6

KB21011-21152

SEAL

7

KB91311-50102

SCREW

8

KB95111-01200

O-RING (K3)

9

KB21011-22151

WIPER (K3)

10

KB21011-21152

SEAL

11

KB21011-21251

SEAT,SPRING

12

KB21011-22451

SPRING

13

KB21011-22351

SCREW

14

KB21011-21851

CAP

15

KB92702-05121

BOLT

16

KB21011-21052

VALVE,CHECK

17

KB21011-22452

SPRING

18

KB95121-05500

O-RING (K3)

19

KB21013-20901

RELIEF VALVE ASS'Y

20

KB95113-01400

O-RING (K4)

21

KB95113-01800

O-RING (K4)

|$24

KB21013-21515

SPOOL SECTION ASS'Y

22

HOUSING

23

SPOOL

24

KB21011-22253

HEAD

25

KB95111-01200

O-RING (K3)

26

KB21011-22151

WIPER (K3)

27

KB21011-21152

SEAL

28

KB91311-50102

SCREW

29

KB95111-01200

O-RING (K3)

30

KB21011-22151

WIPER (K3)

31

KB21011-21152

SEAL

32

KB21011-21251

SEAT,SPRING

33

KB21011-22451

SPRING

34

KB21011-22351

SCREW

35

KB21011-21851

CAP

36

KB92702-05121

BOLT

37

KB21011-21052

VALVE,CHECK

38

KB21011-22452

SPRING

39

KB95121-05500

O-RING (K3)

40

KB21013-20905

RELIEF VALVE ASS'Y

41

KB95113-01400

O-RING (K4)

42

KB95113-01800

O-RING (K4)

43

KB21011-20351

OUTLET SECTION
