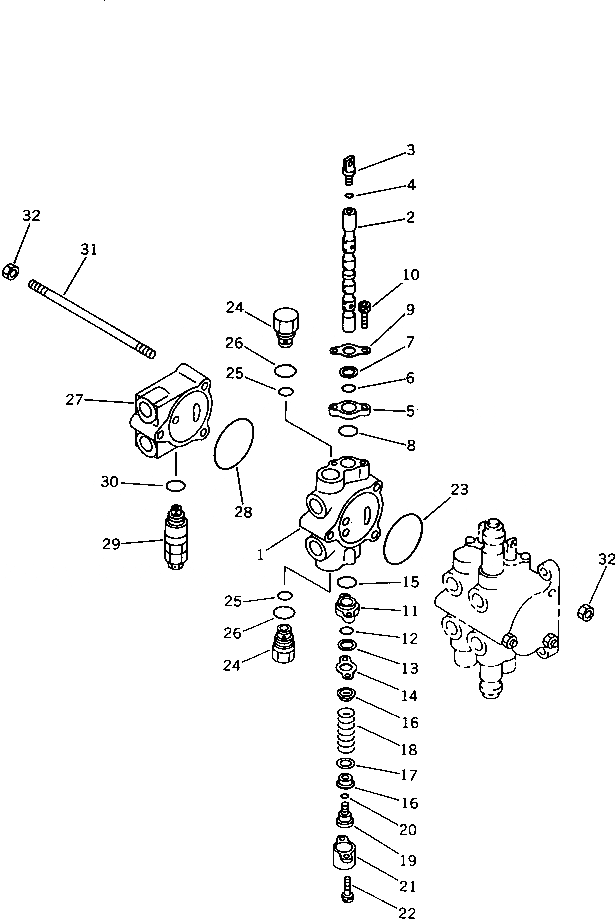

Запчасти Komatsu PW30-1 УПРАВЛЯЮЩ. КЛАПАН¤ ПЕРЕДН. ПРАВ. (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

21E-60-12210

VALVE ASS'Y,FRONT R.H.

|$$2

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.6211 AND 6212.

|$2

KB21013-21521

SPOOL SECTION ASS'Y

1

HOUSING

2

SPOOL

3

KB21011-22258

HEAD

4

KB95151-00500

O-RING (K2)

5

KB21011-20655

SPACER

6

KB95111-01200

O-RING (K2)

7

KB21011-22151

WIPER (K2)

8

KB95111-01800

O-RING (K2)

9

KB21011-21152

SEAL

10

KB92702-05201

BOLT

11

KB21011-20655

SPACER,SPRING

12

KB95111-01200

O-RING (K2)

13

KB21011-22151

WIPER (K2)

14

KB21011-21152

SEAL

15

KB95111-01800

O-RING (K2)

16

KB21011-21251

SEAT

17

KB21011-22651

COLLAR

18

KB21011-22457

SPRING

19

KB21011-22360

SCREW

20

KB95151-00500

O-RING (K2)

21

KB21011-21851

CAP

22

KB92702-05201

BOLT

23

KB95121-05500

O-RING (K2)

24

KB21013-20903

SUCTION VALVE ASS'Y

25

KB95113-01400

O-RING (K4)

26

KB95113-01800

O-RING (K4)

|$29

KB21013-20161

INLET SECTION ASS'Y

27

KB21011-20156

HOUSING

28

KB95121-05500

O-RING

29

KB21013-30664

RELIEF VALVE ASS'Y

30

KB21001-00036

O-RING

31

KB21031-30104

STUD

32

KB93328-08652

NUT
