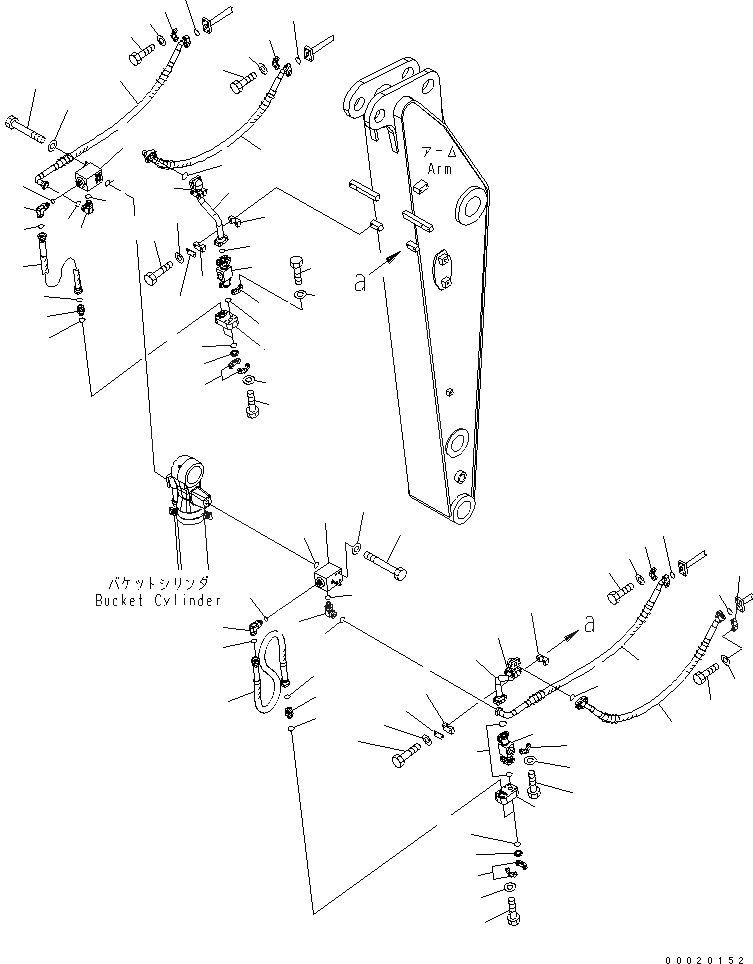

Запчасти Komatsu PW220-7K РУКОЯТЬ (.8M) (ГРЕЙФЕРН. ЛИНИИ)(№K-K) РАБОЧЕЕ ОБОРУДОВАНИЕ

1

20K-970-5410

HOSE

2

20K-970-5420

HOSE

3

07000-13025

O-RING

4

07371-30640

FLANGE,SPLIT

5

07372-21035

BOLT

6

01643-51032

WASHER

7

02782-10628

ELBOW

8

02896-11018

O-RING

9

07002-12434

O-RING

10

20K-970-3120

VALVE

11

20K-970-3130

VALVE

12

07000-13025

O-RING

13

01010-81090

BOLT

14

01010-81080

BOLT

15

01643-51032

WASHER

16

02782-10628

ELBOW

17

02896-11018

O-RING

18

07002-12434

O-RING

19

02777-206A9

HOSE

20

02781-00628

UNION

21

02896-11018

O-RING

22

07002-12434

O-RING

23

20K-970-5380

HOSE

24

20K-970-5390

HOSE

25

07000-13025

O-RING

26

07371-30640

FLANGE,SPLIT

27

07372-21030

BOLT

28

01643-51032

WASHER

29

20K-970-5171

TUBE

30

20K-62-32721

PLATE

31

20K-62-32711

CLAMP

32

01010-80860

BOLT

33

01643-30823

WASHER

34

20Y-970-K551

VALVE

35

07000-13025

O-RING

36

07371-30640

FLANGE,SPLIT

37

07372-21035

BOLT

38

01643-51032

WASHER

39

20G-970-3152

PLATE

|39

20G-970-3151

PLATE

|39

20G-970-3150

PLATE

40

07378-10600

HEAD

41

07000-13025

O-RING

42

07371-30640

FLANGE,SPLIT

43

07372-21030

BOLT

44

01643-51032

WASHER
