Заказать запчасти

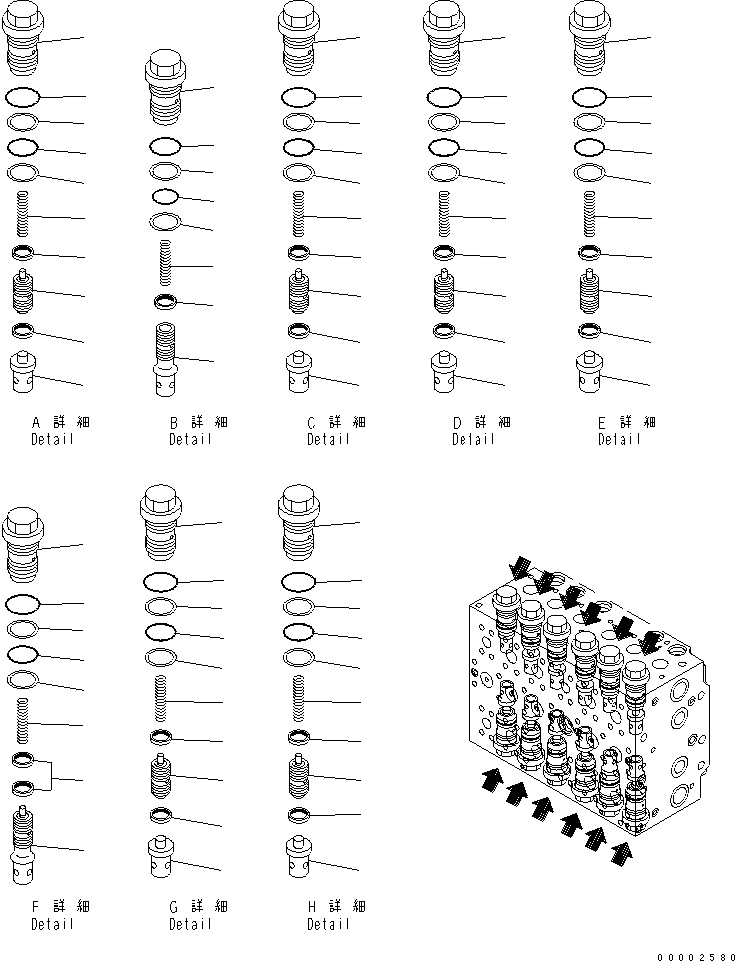

Запчасти Komatsu PW220-7H ОСНОВН. КЛАПАН (9-СЕКЦИОНН.) (/) (ДЛЯ TWO-ЧАСТИ СТРЕЛА) Y ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ
№
Артикул
Название
Примечание
Количество
|$1
723-49-21101
VALVE ASSEMBLY
|$3
BODY SUB ASSEMBLY
1
723-46-41110
VALVE
2
723-46-41190
VALVE
|$7
723-46-40100
VALVE ASSEMBLY
3
SLEEVE
4
PISTON SUB ASSEMBLY
5
SPRING
6
SEAL
7
700-93-11320
O-RING
8
723-46-41950
RING
9
07002-13634
O-RING
|$15
723-46-42700
VALVE ASSEMBLY
10
SLEEVE
11
VALVE
12
SPRING
13
SEAL
14
700-93-11320
O-RING
15
723-46-41950
RING
16
07002-13634
O-RING
|$23
723-46-41100
VALVE ASSEMBLY
17
SLEEVE
18
PISTON SUB ASSEMBLY
19
SPRING
20
SEAL
21
700-93-11320
O-RING
22
723-46-41950
RING
23
07002-13634
O-RING
|$31
723-46-45100
VALVE ASSEMBLY
24
SLEEVE
25
PISTON SUB ASSEMBLY
26
SPRING
27
SEAL
28
700-93-11320
O-RING
29
723-46-41950
RING
30
07002-13634
O-RING
|$39
723-46-46300
VALVE ASSEMBLY
31
SLEEVE
32
PISTON SUB ASSEMBLY
33
SPRING
34
SEAL
35
700-93-11320
O-RING
36
723-46-41950
RING
37
07002-13634
O-RING
|$47
723-46-43400
VALVE ASSEMBLY
38
SLEEVE
39
VALVE SUB ASSEMBLY
40
SPRING
41
SEAL
42
700-93-11320
O-RING
43
723-46-41950
RING
44
07002-13634
O-RING
|$55
723-46-43100
VALVE ASSEMBLY
45
SLEEVE
46
PISTON SUB ASSEMBLY
47
SPRING
48
SEAL
49
700-93-11320
O-RING
50
723-46-41950
RING
51
07002-13634
O-RING
|$63
723-46-46101
VALVE ASSEMBLY
52
SLEEVE
53
PISTON SUB ASSEMBLY
54
SPRING
55
SEAL
56
700-93-11320
O-RING
57
723-46-41950
RING
58
07002-13634
O-RING
Выбрано товаров: 68
