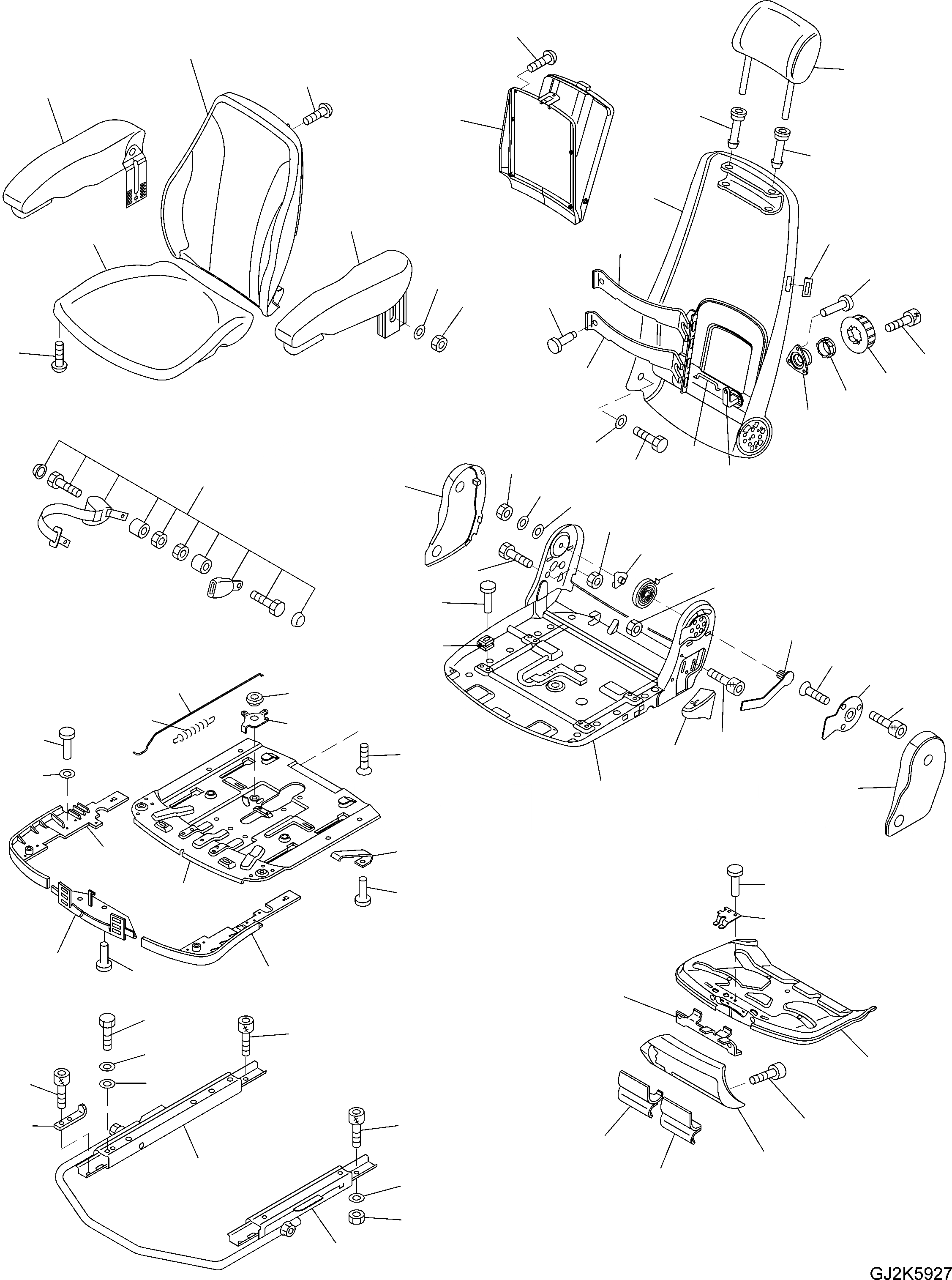

Запчасти Komatsu PW220-7H OPERATORґS СИДЕНЬЕ ASSEMBLY, / (МЕХАНИЧ. ПОДВЕСКА) Y ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|$1

20K-57-31151

SEAT ASSEMBLY

1

20K-57-31180

SEAT

2

20K-57-31190

SEAT

3

20K-57-31410

SCREW

4

20K-57-31210

NUT

5

20K-57-31220

SCREW

6

20K-57-31440

REST

7

20K-57-31460

WASHER

8

20K-57-31470

SCREW

9

20K-57-31230

ROD

10

20K-57-31480

RIVET

11

20K-57-31240

PLATE

12

20K-57-32210

SCREW

13

20K-57-31490

WASHER

14

20K-57-31560

PLATE

15

20K-57-31570

RIVET

16

20K-57-31580

SHEET

17

20K-57-31590

BLOCK

18

20K-57-31610

BOX

19

20K-57-31620

COVER KIT

20

20K-57-31630

BRACKET KIT

21

20K-57-31640

RIVET

22

20K-57-31650

WASHER

23

20K-57-33340

COVER LHS

24

20K-57-31670

BEARING

25

20K-57-31680

SPRING

26

20K-57-31690

PLATE

27

20K-57-31710

SCREW

28

20K-57-31720

SCREW

29

20K-57-31730

NUT

30

20K-57-31740

LEVER

31

20K-57-31750

HANDLE

32

20K-57-31760

PLATE

33

20K-57-31770

SCREW

34

20K-57-33350

COVER RHS

35

20K-57-31790

SEAT

36

20K-57-31810

SHEET

37

20K-57-31820

LATCH

38

20K-57-31830

COVER

39

20K-57-31840

HANDLE

40

20K-57-31850

HANDLE

41

20K-57-31260

REST

42

20K-57-31870

BUSHING

43

20K-57-31270

SUPPORT

44

20K-57-31280

SCREW

45

20K-57-31290

HANDLE

46

20K-57-31310

WHEEL

47

20K-57-31320

RIVET

48

20K-57-31330

BRAKE

49

20K-57-31340

CARRIER

50

20K-57-31890

SCREW

51

20K-57-31910

RIVET

52

20K-57-33320

COVER

53

20K-57-31930

ROD

54

20K-57-31940

SPRING

55

20K-57-31950

BUSHING

56

20K-57-31960

SCREW

57

20K-57-31970

LEVER

58

20K-57-33360

ARM REST RHS

59

20K-57-33370

ARM REST LHS

60

20K-57-31350

RAIL KIT

61

20K-57-32120

SCREW

62

20K-57-32130

SCREW

63

20K-57-31360

BRACKET

64

20K-57-32140

SEAT BELT KIT

65

20K-57-31370

NUT
