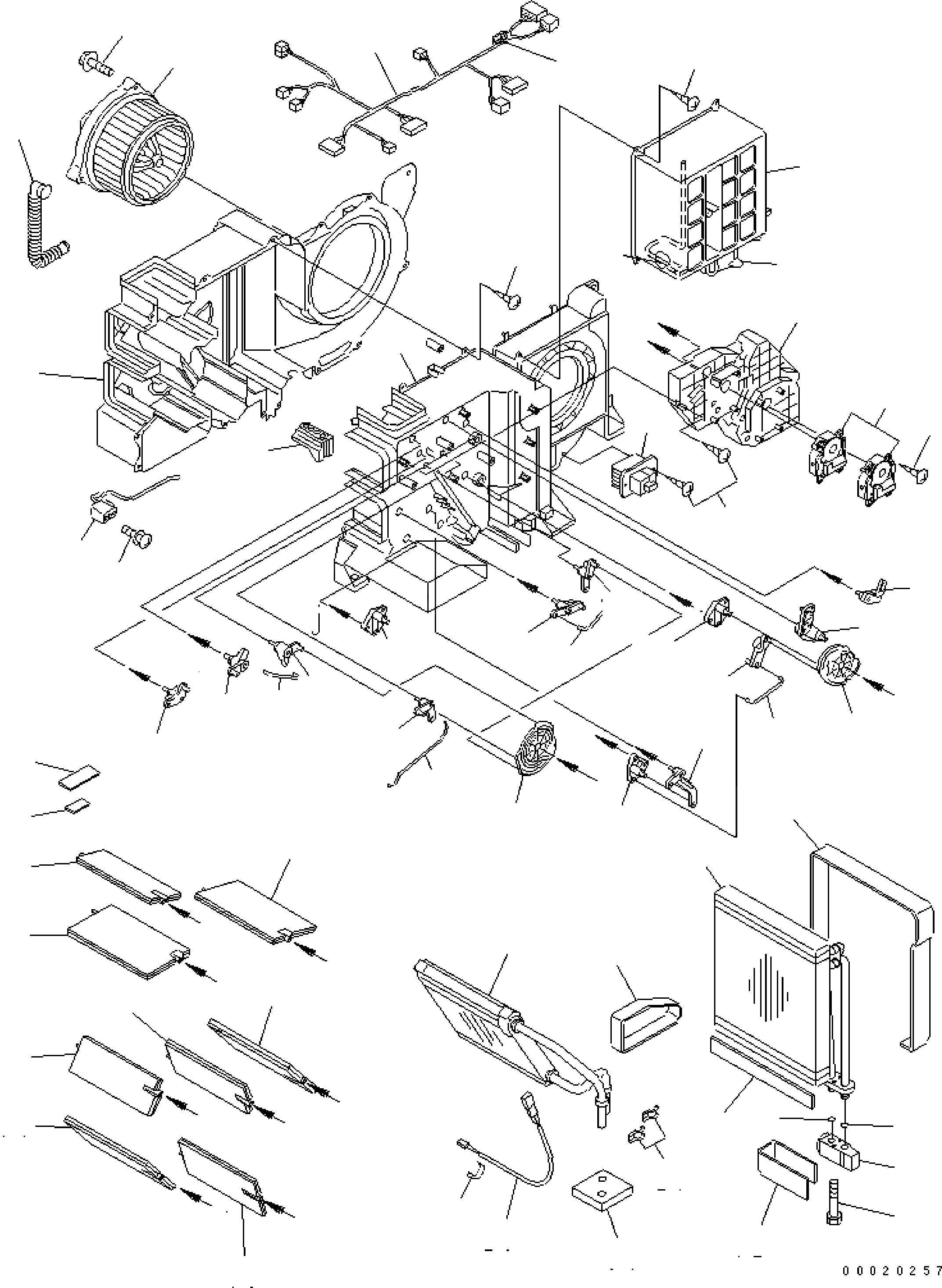

Запчасти Komatsu PW220-7E0 БЛОК ASSEMBLY (С КОНДИЦИОНЕРОМ) Y ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|$1

208-979-7610

AIR CONDITIONER

1

ND245450-5112

CASE

2

ND245450-5121

CASE

3

ND116576-3810

PLATE

4

ND116576-3820

PLATE

|$6

ND446010-3131

EVAPORATOR ASSEMBLY, PARTS

5

ND446600-0990

EVAPORATOR

6

ND949142-0020

O-RING

7

ND949142-0030

O-RING

8

ND447500-1482

VALVE

9

ND949046-3100

BOLT

10

ND146657-8841

PACKING

11

ND146657-9811

PACKING

12

ND146657-8850

PACKING

13

ND116140-0050

CORE

14

ND116660-7570

DOOR

15

ND116650-6850

DOOR

16

ND116780-2481

LEVER

17

ND116780-2491

LEVER

18

ND116780-2501

LEVER

19

ND116780-2510

LEVER

20

ND116781-3000

LEVER

21

ND116780-2521

LEVER

22

ND116662-7670

SHAFT

23

ND116662-7681

SHAFT

24

ND116576-3851

PLATE

25

ND116576-3861

PLATE

26

ND063800-0300

MOTOR

27

ND017231-0700

CLAMP

28

ND170400-4670

SENSOR

29

ND145511-0040

HOLDER

30

ND077800-0750

TRANSISTOR

31

ND146340-0531

BOX

32

ND063600-4580

MOTOR

33

ND077500-5650

THERMISTOR

34

ND146657-8860

PACKING

35

ND116340-7030

MOTOR

36

205-979-7260

PIPE

37

ND949008-0330

SCREW

38

ND949001-1730

SCREW

39

ND246470-2451

HARNESS

40

ND93950-05003

FUSE

41

ND113550-0780

THERMOSTAT

42

ND91370-04101

SCREW

43

ND146667-0300

PACKING

44

ND146667-0380

PACKING

45

ND146667-0440

PACKING
