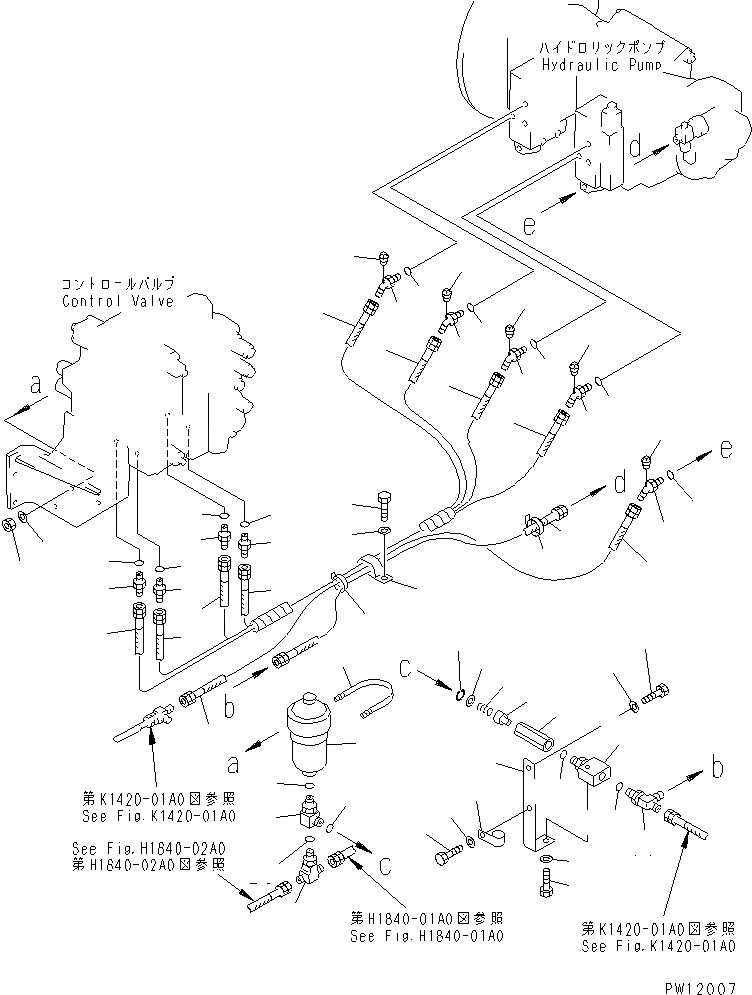

Запчасти Komatsu PW210-1 OLSS ТРУБЫ (ДЛЯ WRIST УПРАВЛ-Е) ГИДРАВЛИКА

|$1

205-62-74150

HOSE ASS'Y

1

07108-20212

HOSE,(YELLOW)

2

205-62-71770

HOSE,(GREEN)

3

07108-20211

HOSE,(RED)

4

205-62-74290

HOSE,(BLUE)

5

07236-50210

ELBOW

6

07002-11423

O-RING

7

07042-30108

PLUG

8

07230-20210

UNION

8

07230-10210

UNION

9

07002-11423

O-RING

10

07102-20413

HOSE

11

20X-62-21450

ELBOW

11A

07002-02034

O-RING

11B

205-62-71681

TEE

12

205-62-71880

BRACKET

13

01010-81225

BOLT

13

01010-51225

BOLT

14

01643-31232

WASHER

15

01010-81225

BOLT

15

01010-51225

BOLT

16

01643-31232

WASHER

|$26

205-60-64300

CHECK VALVE ASS'Y

17

205-60-64290

BODY

18

205-60-51390

POPPET

19

205-60-51410

SPRING

20

205-60-51420

SEAT

21

04065-01410

RING,SNAP

22

205-62-71671

TEE

23

07002-02034

O-RING

24

205-60-71152

ACCUMULATOR

24

205-60-71151

ACCUMULATOR

25

07283-28981

CLIP

26

01643-31232

WASHER

27

01599-01214

NUT

28

208-26-11611

TEE

29

07002-01423

O-RING

30

21T-06-12650

CLIP

31

01010-81265

BOLT

31

01010-51265

BOLT

32

01643-31232

WASHER

33

21K-03-11190

CLIP

34

01010-81225

BOLT

34

01010-51225

BOLT

35

01643-31232

WASHER

36

08034-00519

BAND

37

205-62-74290

HOSE

37

205-62-71770

HOSE

38

07236-50210

ELBOW

39

07002-01423

O-RING

40

07042-30108

PLUG
