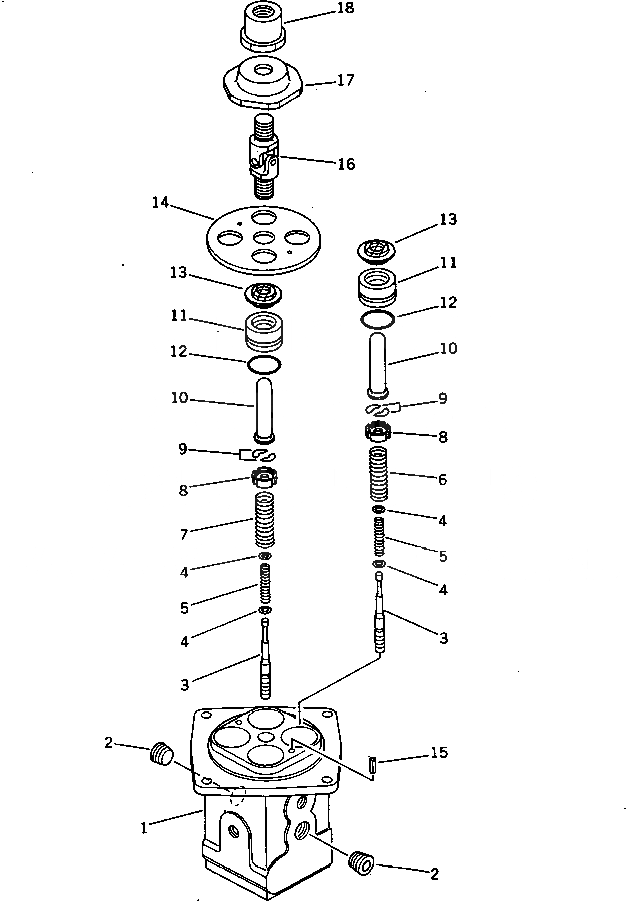

Запчасти Komatsu PW210-1 КЛАПАН PPC(ДЛЯ РАБОЧ. ОБОРУД-Я) (WRIST УПРАВЛ-Е) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|$3

702-16-53001

VALVE ASS'Y

|$4

702-16-53000

VALVE ASS'Y

|$5

702-16-59000

VALVE ASS'Y

1

BODY,VALVE

1

BODY

2

07043-50312

PLUG

3

VALVE

4

702-16-51140

SHIM, 0.30MM

4

702-16-51140

SHIM, 0.30MM

5

702-16-51150

SPRING

6

702-16-51180

SPRING

7

702-16-51190

SPRING

8

702-16-51161

RETAINER

8

702-16-51160

RETAINER

9

702-16-51170

COLLAR

10

702-16-51210

PISTON

11

702-16-51220

COLLAR

12

07000-02020

O-RING

13

702-16-51270

SEAL

14

702-16-51231

PLATE

14

702-16-51230

PLATE

15

04025-00312

PIN,SPRING

16

702-16-51240

JOINT

17

702-16-51250

DISK

18

702-16-51260

NUT
