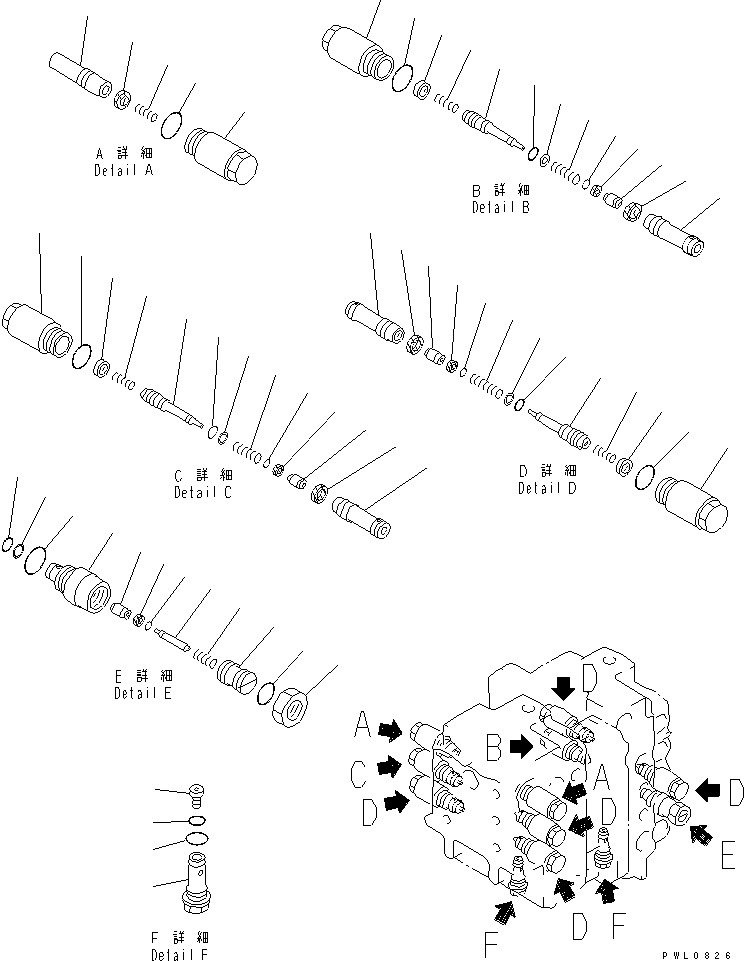

Запчасти Komatsu PW210-1 ОСНОВН. КЛАПАН (/8) (ДЛЯ OFFSET СТРЕЛА)(№-) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|$1

709-79-12700

MAIN VALVE ASS'Y

|$3

709-70-62200

VALVE ASS'Y

1

SLEEVE

2

POPPET

3

SPRING

4

PISTON

5

SCREW

6

NUT

7

SEAL

8

O-RING

9

700-22-11410

O-RING

10

700-80-64220

RING,BACK-UP

11

07002-03034

O-RING

12

O-RING

|$16

709-70-61201

VALVE ASS'Y,SUCTION AND SAFETY

13

SLEEVE

14

VALVE

15

POPPET

16

PISTON

17

SEAL

18

NUT

19

SPRING

20

SEAL

21

O-RING

22

07002-03034

O-RING

23

O-RING

24

RING,BACK-UP

25

SPRING

|$30

709-70-61101

VALVE ASS'Y,SUCTION AND SAFETY

26

SLEEVE

27

VALVE

28

POPPET

29

PISTON

30

SEAL

31

NUT

32

SPRING

33

SEAL

34

O-RING

35

07002-03034

O-RING

36

O-RING

37

RING,BACK-UP

38

SPRING

|$44

709-70-61601

VALVE ASS'Y,SUCTION AND SAFETY

39

SLEEVE

40

VALVE

41

POPPET

42

PISTON

43

SEAL

44

NUT

45

SPRING

46

SEAL

47

O-RING

48

07002-03034

O-RING

49

O-RING

50

RING,BACK-UP

51

SPRING

|$58

700-81-81000

VALVE ASS'Y,SUCTION

52

SLEEVE

53

VALVE

54

SPRING

55

SEAL

56

07002-03034

O-RING

|$64

709-70-91300

ORIFICE ASS'Y

57

ORIFICE

58

SENSOR

59

07002-02434

O-RING

60

07000-02014

O-RING
