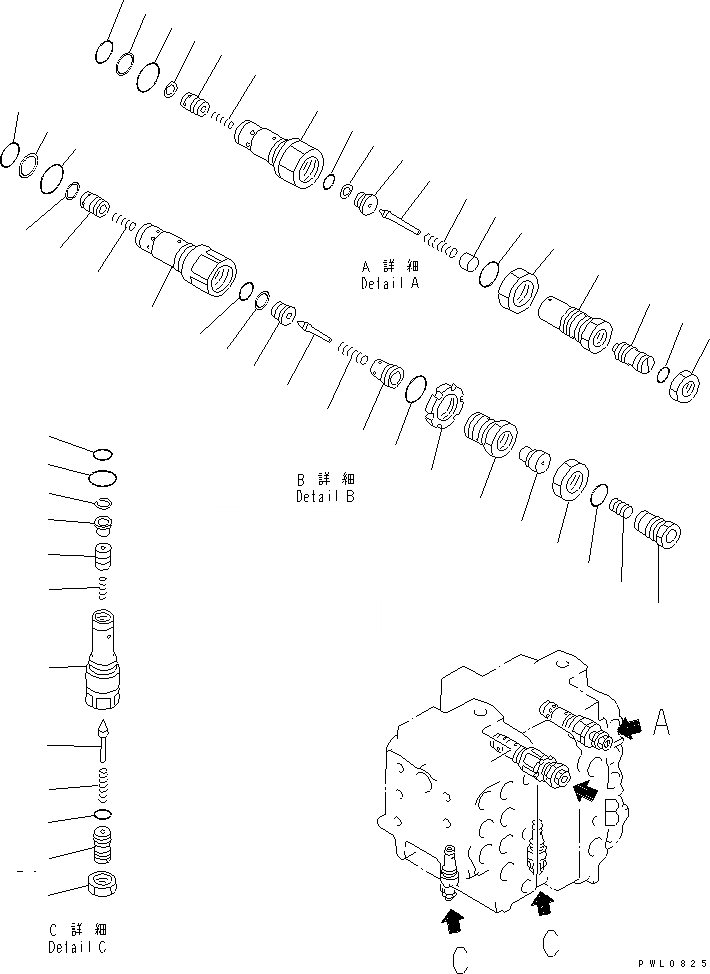

Запчасти Komatsu PW210-1 ОСНОВН. КЛАПАН (/8) (ДЛЯ OFFSET СТРЕЛА)(№-) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|$1

709-79-12700

MAIN VALVE ASS'Y

|$3

709-70-51200

RELIEF VALVE ASS'Y

1

SLEEVE

2

VALVE

3

700-13-31161

O-RING

4

700-80-51190

RING,BACK-UP

5

07002-03334

O-RING

6

RING,SNAP

7

SPRING

8

SEAT

9

O-RING

10

RING,BACK-UP

11

POPPET

12

SPRING

13

RETAINER

14

NUT

15

O-RING

16

HOLDER

17

NUT

18

SCREW

19

O-RING

|$23

709-70-55103

RELIEF VALVE ASS'Y

20

SLEEVE

21

POPPET

22

SPRING

23

SCREW

24

O-RING

25

NUT

26

700-22-11410

O-RING

27

07002-02434

O-RING

28

RING,SNAP

29

VALVE

30

SPRING

31

RETAINER

|$36

709-70-51300

RELIEF VALVE ASS'Y

32

SLEEVE

33

VALVE

34

700-13-31161

O-RING

35

700-80-51190

RING

36

07002-03334

O-RING

37

RING,SNAP

38

SPRING

39

SEAT

40

O-RING

41

RING,BACK-UP

42

POPPET

43

SPRING

44

SLEEVE

45

RETAINER

46

HOLDER

47

O-RING

48

NUT

49

PLUG

50

PISTON

51

O-RING

52

NUT
