Запчасти Komatsu PW210-1 ОСНОВН. КЛАПАН (/7) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

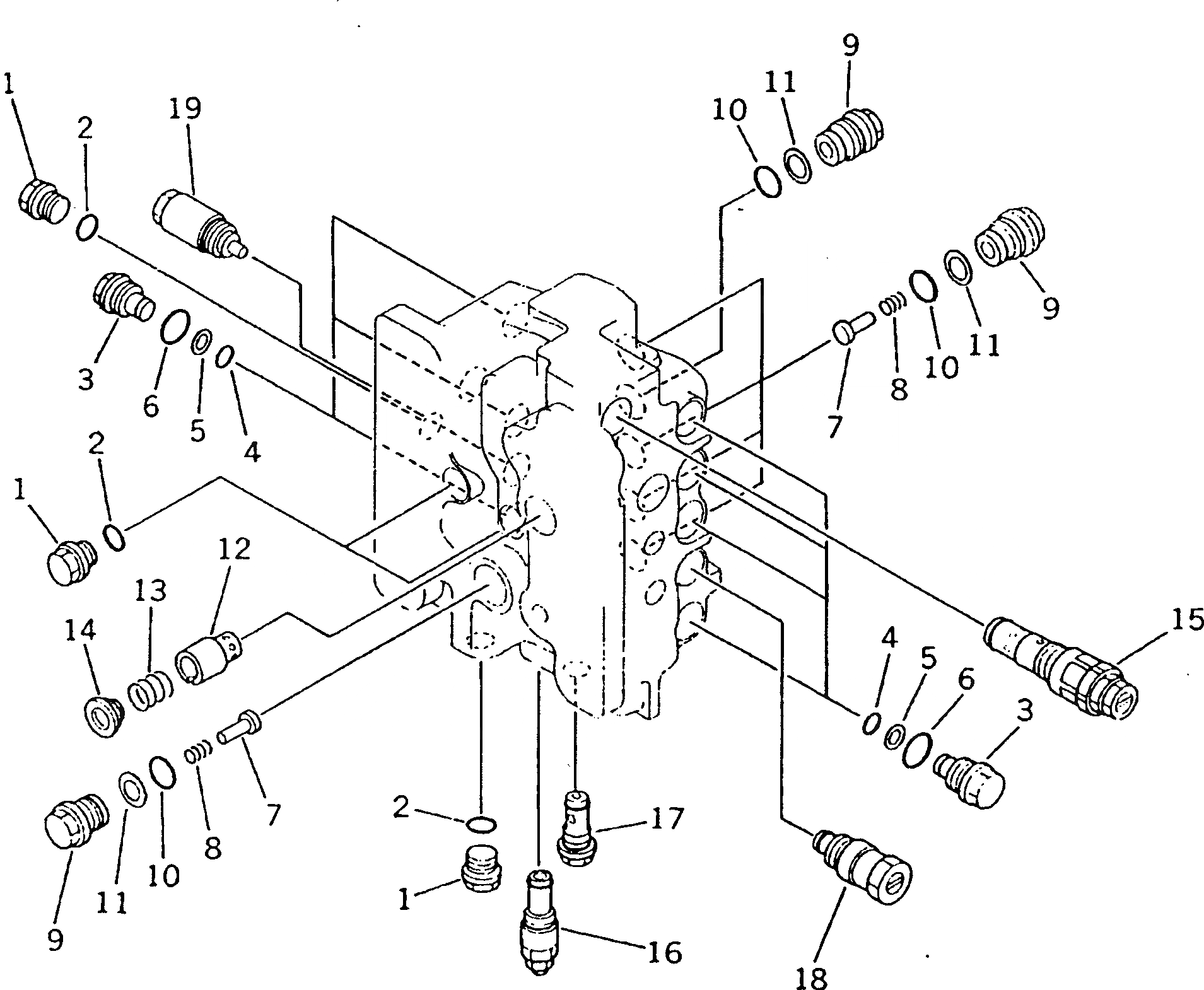

Схема запчастей Komatsu PW210-1 - ОСНОВН. КЛАПАН (/7) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

Артикул

Название

Примечание

Количество

|$7

709-79-12307

CONTROL VALVE ASS'Y

|$8

709-79-12306

CONTROL VALVE ASS'Y

|$9

709-79-12305

CONTROL VALVE ASS'Y

|$10

709-79-12304

CONTROL VALVE ASS'Y

|$11

709-79-12303

CONTROL VALVE ASS'Y

|$12

709-79-12302

CONTROL VALVE ASS'Y

|$13

709-79-12301

CONTROL VALVE ASS'Y

|$15

709-75-92303

VALVE ASS'Y

|$16

709-75-92302

VALVE ASS'Y

|$17

709-75-92301

VALVE ASS'Y

1

700-22-11370

PLUG

2

07002-12434

O-RING

3

700-84-13960

PLUG

4

700-22-11410

O-RING

5

700-80-64220

RING

6

07002-13034

O-RING

7

709-74-92810

VALVE

7

709-75-92210

VALVE

8

709-75-92220

SPRING

9

709-74-92821

PLUG

9

709-74-92820

PLUG

9

709-75-92230

PLUG

10

700-93-11320

O-RING

11

700-93-11330

RING,BACK-UP

12

709-74-92281

VALVE

12

709-74-92280

VALVE

13

709-74-92290

SPRING

14

709-74-92310

SEAT

15

709-70-51200

RELIEF VALVE ASS'Y

16

709-70-55103

RELIEF VALVE ASS'Y

16

709-70-55102

RELIEF VALVE ASS'Y

16

709-70-55101

RELIEF VALVE ASS'Y

17

709-70-91300

ORIFICE ASS'Y

18

709-70-62200

VALVE ASS'Y,SAFETY

19

709-70-61601

VALVE ASS'Y,SUCTION AND SAFETY

19

709-70-61600

VALVE ASS'Y,SUCTION AND SAFETY

Выбрано товаров: 36
