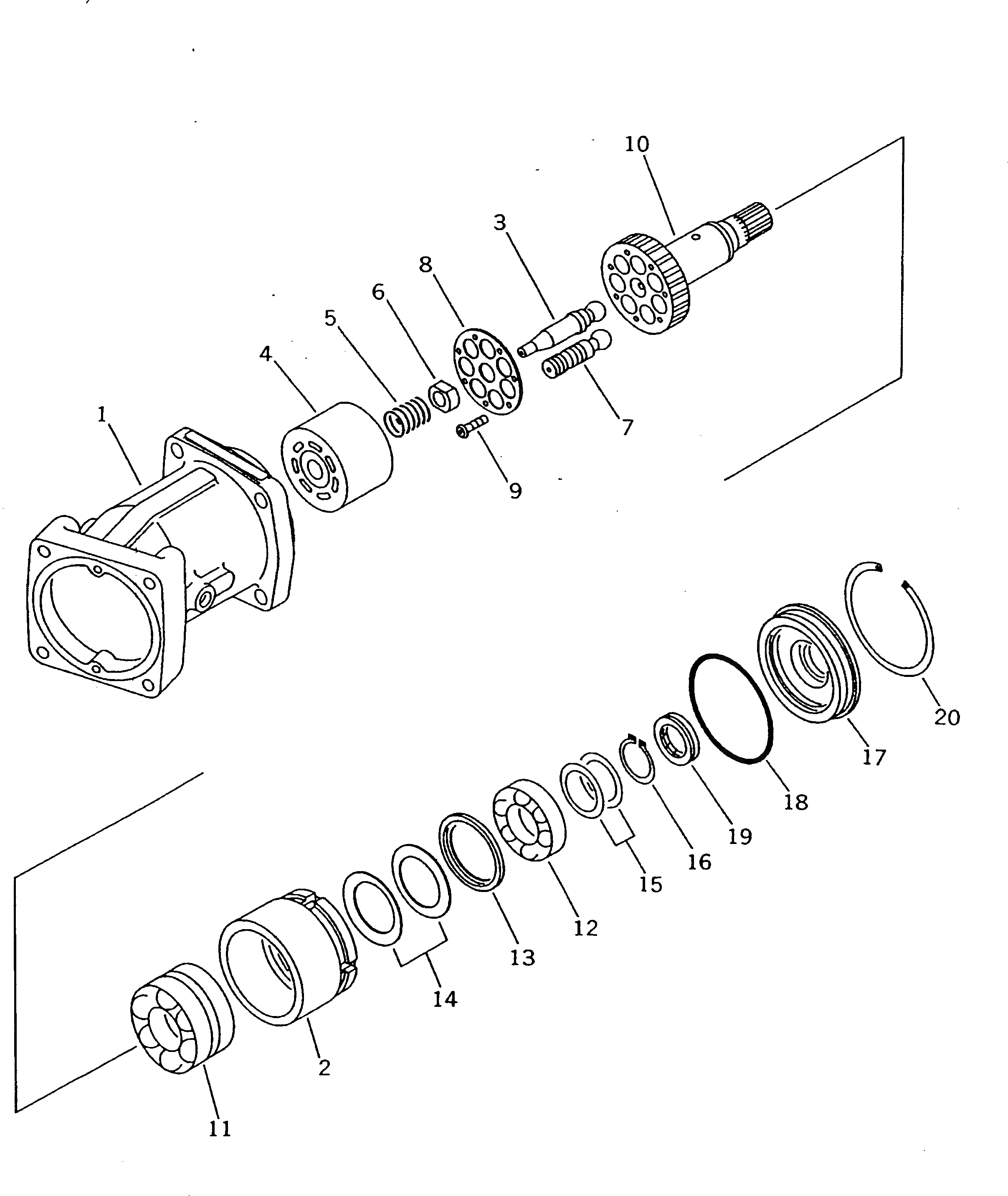

Запчасти Komatsu PW210-1 МОТОР ХОДА (/) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|$2

706-87-01103

MOTOR ASS'Y

|$3

706-87-01102

MOTOR ASS'Y

|$5

706-87-03201

MOTOR ASS'Y

|$6

706-87-03200

MOTOR ASS'Y

1

706-87-41820

CASE

2

706-87-41830

CASE

3

706-77-42081

SHAFT,CENTER

4

706-77-43191

BLOCK

4

706-87-41190

BLOCK,CYLINDER

5

706-77-42110

SPRING

6

706-77-43130

RING

6

706-77-42130

RING,CENTER

7

706-77-42160

PISTON SUB ASS'Y

|$16

706-77-05020

RETAINER KIT

8

RETAINER

9

SCREW

10

706-77-42861

SHAFT,DRIVE

11

706-77-42881

BEARING

11

706-77-42880

BEARING

12

706-77-42890

BEARING

13

706-77-42041

SEAT

14

706-77-42051

SPRING

15

706-77-05010

SPACER KIT

15

SPACER, 2.3MM

15

SPACER, 2.5MM

15

SPACER, 2.7MM

16

04064-06525

RING,SNAP

17

706-87-40230

COVER

18

07000-05160

O-RING

19

706-77-42950

SEAL,OIL

20

706-87-41110

RING,SNAP
