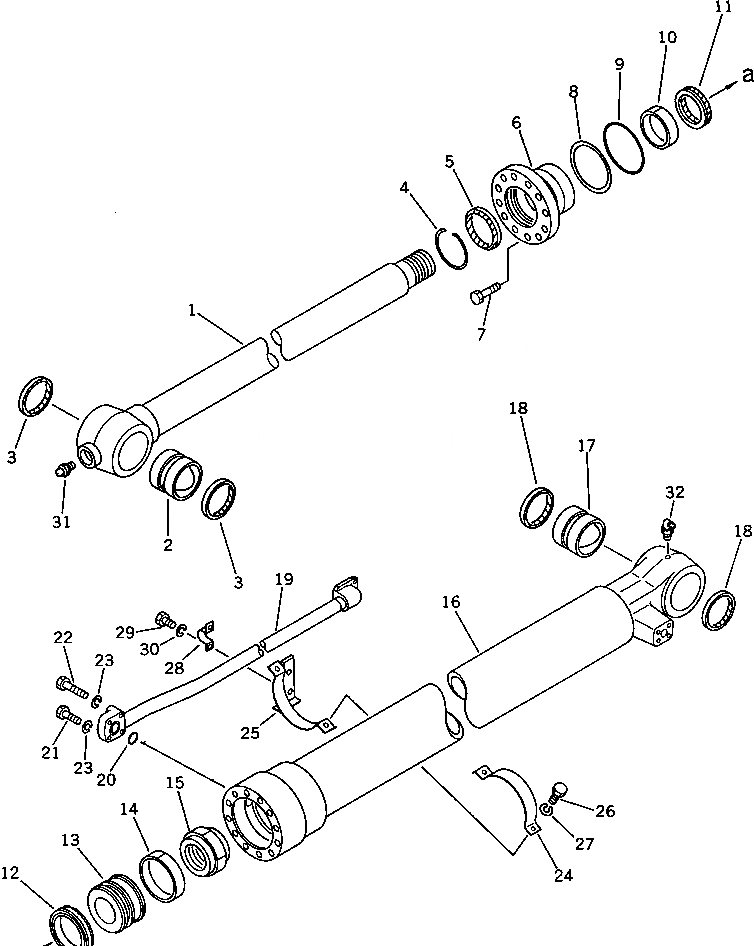

Запчасти Komatsu PW210-1 ЦИЛИНДР КОВША(№-) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|$0

205-63-72100

CYLINDER ASS'Y

1

205-63-72121

ROD,PISTON

2

707-76-70120

BUSHING

3

21K-70-12180

SEAL,DUST (KIT)

4

07179-00097

RING,SNAP

5

144-63-94170

SEAL,DUST (KIT)

6

707-27-11371

HEAD,CYLINDER

7

01010-81655

BOLT

8

07146-02106

RING,BACK-UP (KIT)

9

07000-12105

O-RING (KIT)

10

07177-07530

BUSHING

11

707-51-75211

PACKING,ROD (KIT)

12

707-44-11180

RING,PISTON (KIT)

13

707-36-11460

PISTON

14

07155-01125

RING,WEAR (KIT)

15

707-68-10580

NUT

16

205-63-72141

CYLINDER

17

707-76-70110

BUSHING

18

07145-00070

SEAL,DUST (KIT)

19

205-63-72170

TUBE

20

07000-13030

O-RING (KIT)

21

01010-50845

BOLT

22

01010-50855

BOLT

23

01602-20825

WASHER,SPRING

24

707-88-99110

BAND

25

707-88-99160

BAND

26

01010-51030

BOLT

27

01602-21030

WASHER,SPRING

28

07282-02793

CLAMP

29

01010-51020

BOLT

30

01602-21030

WASHER,SPRING

31

07020-00000

FITTING,GREASE

32

07020-00900

FITTING,GREASE
