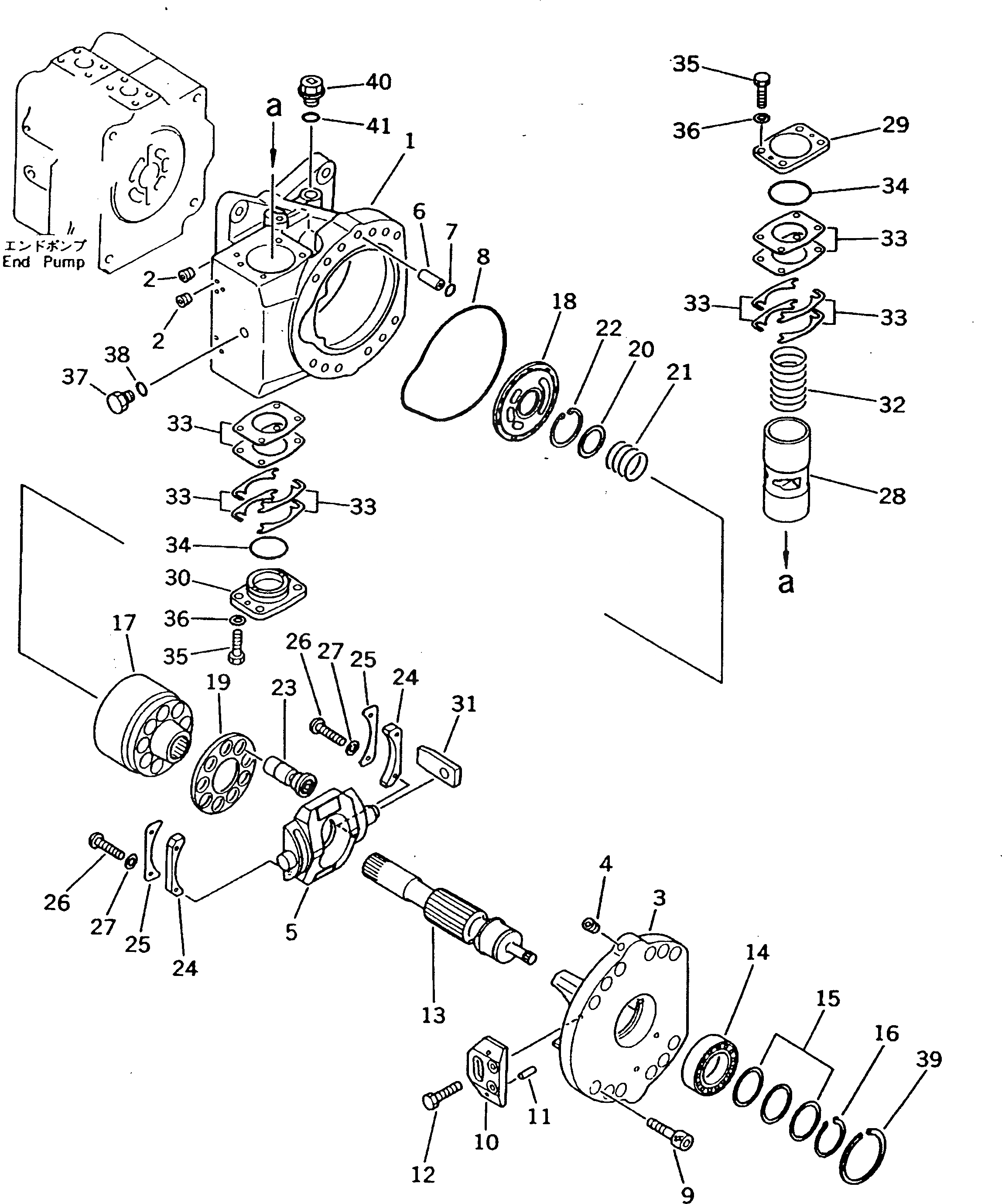

Запчасти Komatsu PW210-1 ОСНОВН. НАСОС (/) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|$2

708-25-02071

PUMP ASS'Y

|$3

708-25-02070

PUMP ASS'Y

|$5

708-25-01250

PUMP SUB ASS'Y

|$6

708-25-00100

CASE ASS'Y,REAR

1

CASE,REAR

2

PLUG

|$9

708-25-00041

CRADLE ASS'Y,REAR

|$10

4708-25-00040

CRADLE ASS'Y,REAR

|$12

708-25-00490

CRADLE SUB ASS'Y,REAR

3

CRADLE,REAR

4

PLUG

5

708-25-13411

CAM,ROCKER

5

4708-25-13410

CAM,ROCKER

6

708-25-12330

JOINT

7

07000-12015

O-RING

8

708-25-12340

O-RING

9

708-25-12350

BOLT

10

708-25-12360

PLATE

11

04020-00820

PIN,DOWEL

12

01010-80816

BOLT

13

708-25-12721

SHAFT

14

708-2L-22150

BEARING

15

708-25-05010

WASHER KIT

15

WASHER, 2.0MM

15

WASHER, 2.1MM

15

WASHER, 2.2MM

16

708-25-12790

RING,SNAP

|$32

708-25-00020

BLOCK ASS'Y

17

BLOCK,CYLINDER

18

PLATE,VALVE

19

708-25-13422

RETAINER,SHOE

20

708-25-13120

WASHER

21

708-25-13130

SPRING

22

708-25-13140

RING,SNAP

23

708-25-13314

PISTON SUB ASS'Y

23

708-25-13311

PISTON SUB ASS'Y

24

708-25-05061

SPACER KIT

24

SPACER, 11.575MM

24

SPACER, 11.540MM

24

SPACER, 11.560MM

25

708-25-13441

RETAINER

26

708-25-13470

SCREW

27

01643-30623

WASHER

28

708-25-14211

PISTON

28

708-25-14111

PISTON

29

708-25-14140

CAP

30

708-25-14150

CAP

31

708-25-14121

SLIDER

31

4708-25-14120

SLIDER

32

708-25-14130

SPRING

33

708-25-05050

SHIM KIT

33

SHIM, 0.1MM

33

SHIM, 0.1MM

33

SHIM, 0.2MM

33

SHIM, 0.5MM

34

07000-02065

O-RING

35

01016-31035

BOLT

36

01643-31032

WASHER

37

720-68-19870

PLUG

38

07002-01223

O-RING

39

708-25-12970

RING,SNAP

40

07044-12412

PLUG

41

07002-02434

O-RING
