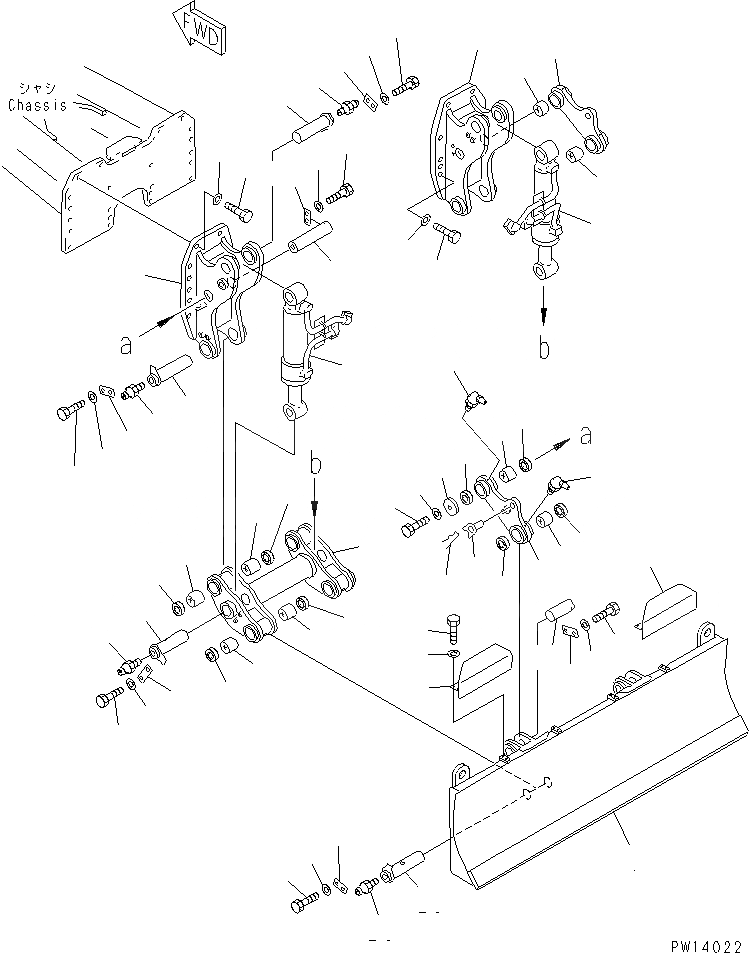

Запчасти Komatsu PW210-1 ОТВАЛ РАБОЧЕЕ ОБОРУДОВАНИЕ

1

20K-910-1111

BLADE

1

20K-910-1110

BLADE

|$3

20K-910-0010

LINK ASS'Y,L.H.

2

LINK

3

07144-10706

BUSHING

|$6

20K-910-0020

LINK ASS'Y,R.H.

4

LINK

5

07144-10706

BUSHING

6

07145-00070

SEAL

7

07020-00675

FITTING,GREASE

8

20K-910-1160

PIN

9

04082-00312

LOCK

10

01010-81230

BOLT

10

01010-51230

BOLT

11

01643-31232

WASHER

12

20K-910-1120

BRACKET,L.H.

13

20K-910-1130

BRACKET,R.H.

14

01010-82470

BOLT

14

01010-52470

BOLT

15

01643-32460

WASHER

16

20K-910-1190

PIN

17

04082-00312

LOCK

18

01010-81230

BOLT

18

01010-51230

BOLT

19

01643-31232

WASHER

20

20K-910-1210

HOLDER

21

01010-81680

BOLT

21

01010-51680

BOLT

22

01643-31645

WASHER

23

20K-910-1310

PIN

24

362-846-2190

PIN

|$34

20K-910-0031

LINK ASS'Y

|$35

20K-910-0030

LINK ASS'Y

25

LINK

26

203-70-42190

BUSHING

26

203-70-32142

BUSHING

27

07145-00070

SEAL

28

20K-910-1140

PIN

29

07020-00000

FITTING,GREASE

30

205-70-66580

PLATE

31

01010-81230

BOLT

31

01010-51230

BOLT

32

01643-31232

WASHER

33

20K-63-X2040

CYLINDER GROUP,L.H.

34

20K-63-X2050

CYLINDER GROUP,R.H.

35

20K-910-1150

PIN

36

07020-00000

FITTING,GREASE

37

205-70-66580

PLATE

38

01010-81230

BOLT

38

01010-51230

BOLT

39

01643-31232

WASHER

40

20K-910-1240

COVER

41

01010-81225

BOLT

41

01010-51225

BOLT

42

01643-31232

WASHER
