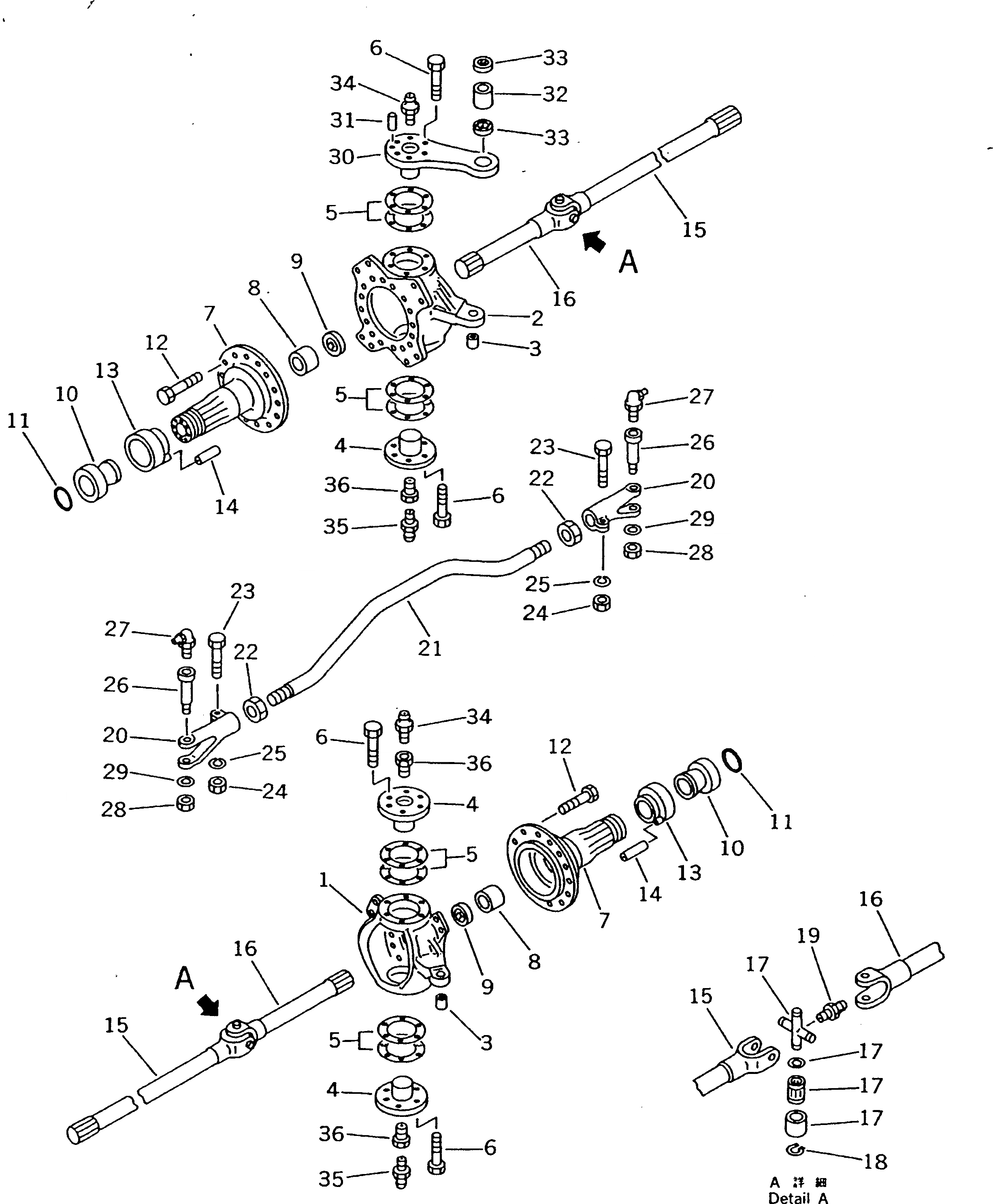

Запчасти Komatsu PW210-1 ПЕРЕДНИЙ МОСТ (КУЛАК И ПОПЕРЕЧНАЯ РУЛЕВ. ТЯГА) НИЖНЯЯ ГИДРОЛИНИЯ И ЛИНИЯ ХОДА

|$1

20K-22-10006

FRONT AXLE ASS'Y

|$2

20K-22-10005

FRONT AXLE ASS'Y

|$3

20K-22-10004

FRONT AXLE ASS'Y

|$4

20K-22-10002

FRONT AXLE ASS'Y

1

20G-22-23512

KNUCKLE,R.H.

1

20G-22-23511

KNUCKLE,R.H.

2

20K-22-13522

KNUCKLE,L.H.

2

20K-22-13521

KNUCKLE,L.H.

2

20K-22-13520

KNUCKLE,L.H.

3

22X-22-13530

BUSHING

4

20G-22-23811

PIN,KING

5

20G-22-13850

SHIM, 0.10MM

5

20G-22-13860

SHIM, 0.15MM

5

20G-22-13870

SHIM, 0.20MM

5

20G-22-13880

SHIM, 0.50MM

6

01010-62055

BOLT

6

01010-62050

BOLT

6

01010-62050

BOLT

7

20K-22-13551

SPINDLE

7

20K-22-13550

SPINDLE

8

20G-22-12570

BUSHING

9

20K-22-12590

SEAL,OIL

9

20G-22-12590

SEAL,OIL

10

20G-22-22730

RETAINER

11

07000-F2100

O-RING

11

07000-32100

O-RING

11

07000-02100

O-RING

12

01010-61840

BOLT

13

20G-22-22780

SCAVENGER

14

07270-00504

TUBE

|$32

20K-22-12512

UNIVERSAL JOINT A.

|$33

20K-22-12511

UNIVERSAL JOINT A.

15

20K-22-12532

SHAFT,YOKE

15

20K-22-12531

SHAFT,YOKE

16

20G-22-22522

SHAFT,YOKE

16

20G-22-12521

SHAFT,YOKE

17

20G-22-22691

SPIDER ASS'Y

18

20G-22-12551

RING,SNAP

19

20G-22-22561

FITTING,GREASE

20

22X-22-13320

CLEVIS

21

20G-22-13311

ROD,TIE

22

01583-03923

NUT

23

01010-61265

BOLT

23

01010-31265

BOLT

24

01580-01210

NUT

25

01602-21236

WASHER,SPRING

25

01602-01236

WASHER,SPRING

26

22X-22-13330

PIN

27

07020-00900

FITTING,GREASE

28

01596-02016

NUT

28

01598-02021

NUT

29

01643-32060

WASHER

30

20K-22-13822

ARM ASS'Y,STEERING

30

20K-22-13821

ARM ASS'Y,STEERING

|$57

#20K-22-13821A

01010-62055(6),20G-68-12733,

|$58

#20K-22-13821B

20G-68-12751)

31

04022-25050

PIN,DOWEL

31

04022-25045

PIN,DOWEL

32

07143-10404

BUSHING

33

07145-00040

SEAL,DUST

34

07020-00675

FITTING,GREASE

34

07020-00000

FITTING,GREASE

35

07020-00675

FITTING,GREASE

36

22X-47-18220

NIPPLE
