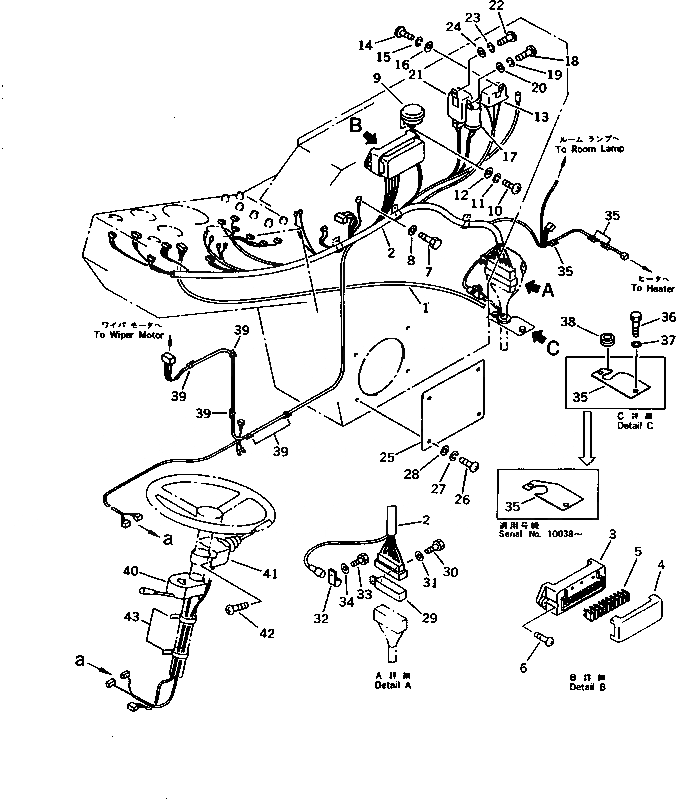

Запчасти Komatsu PW210-1 ПАНЕЛЬ ПРИБОРОВ (ЭЛЕКТРОПРОВОДКА) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

1

08604-45043

CABLE,TACHOMETER(SEE FIG.E0200-03A0)

2

20K-06-11211

WIRING HARNESS

3

195-Z11-2280

BODY

4

195-Z11-2290

COVER

5

205-06-73180

FUSE, 15A

6

01220-40616

SCREW

7

01010-80614

BOLT

7

01010-50614

BOLT

8

01643-30623

WASHER

9

175-06-51210

BUZZER

10

01220-40612

SCREW

11

01602-20619

WASHER,SPRING

12

01640-20610

WASHER

13

206-06-41131

RELAY

13

206-06-41130

RELAY

14

01220-40616

SCREW

15

01602-20619

WASHER,SPRING

16

01643-30623

WASHER

17

20G-06-12510

FLASHER

18

01220-40616

SCREW

19

01602-20619

WASHER,SPRING

20

01643-30623

WASHER

21

08077-22401

FLASHER

22

01220-40616

SCREW

23

01602-20619

WASHER,SPRING

24

01643-30623

WASHER

25

205-06-72181

COVER

26

01220-40410

SCREW

27

01601-20410

WASHER,SPRING

28

01641-20405

WASHER

29

142-06-13530

CLIP

30

01010-81220

BOLT

30

01010-51220

BOLT

31

01643-31232

WASHER

32

195-06-41830

CLIP

32

08036-02514

CLIP

33

01010-81220

BOLT

33

01010-51220

BOLT

34

01643-31232

WASHER

35

205-06-72211

COVER

36

01010-81025

BOLT

36

01010-51025

BOLT

37

01643-31032

WASHER

38

205-06-72410

GROMMET

39

205-54-72710

CLIP

40

20G-06-12350

SWITCH ASS'Y

41

20G-06-19940

SWITCH

42

01220-40430

SCREW

43

362-43-15360

BAND
