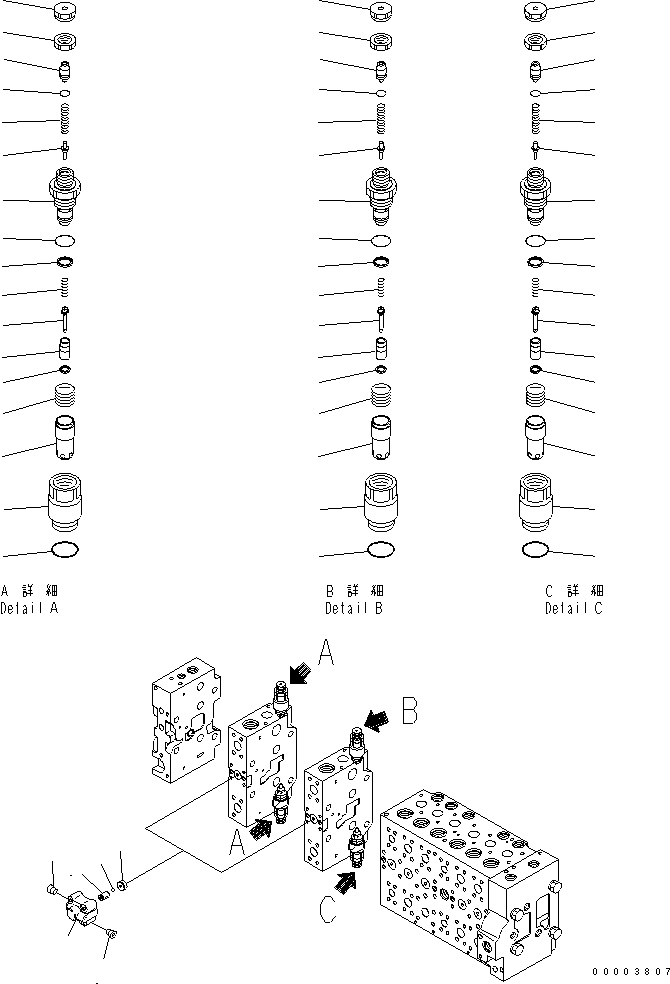

Запчасти Komatsu PW200-7K ОСНОВН. КЛАПАН (8-СЕКЦИОНН.) (/) (ДЛЯ 2-СЕКЦИОНН. СТРЕЛЫ) Y ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

723-48-21101

VALVE ASSEMBLY

|1

723-48-21100

VALVE ASSEMBLY

|1

723-40-66300

VALVE ASSEMBLY

1

CASE

2

SEAT

3

SEAT

4

BALL

5

PLUG

|6

723-40-91300

VALVE ASSEMBLY, SUCTION AND SAFETY

6

SLEEVE

7

SLEEVE

8

POPPET

9

PISTON

10

PLUG

11

POPPET

12

SPACER

13

SPRING

14

SPRING

15

SPRING

16

SEAL

17

SEAL

18

709-25-11390

O-RING

19

O-RING

20

O-RING

21

NUT

22

NUT

|23

723-90-62100

VALVE ASSEMBLY, SUCTION AND SAFETY

23

SLEEVE

24

SLEEVE

25

POPPET

26

PISTON

27

PLUG

28

POPPET

29

SPACER

30

SPRING

31

SPRING

32

SPRING

33

SEAL

34

SEAL

35

07000-13024

O-RING

36

O-RING

37

O-RING

38

NUT

39

NUT

|40

723-40-91200

VALVE ASSEMBLY, SUCTION AND SAFETY

40

SLEEVE

41

SLEEVE

42

POPPET

43

PISTON

44

PLUG

45

POPPET

46

SPACER

47

SPRING

48

SPRING

49

SPRING

50

SEAL

51

SEAL

52

709-25-11390

O-RING

53

O-RING

54

O-RING

55

NUT

56

NUT
