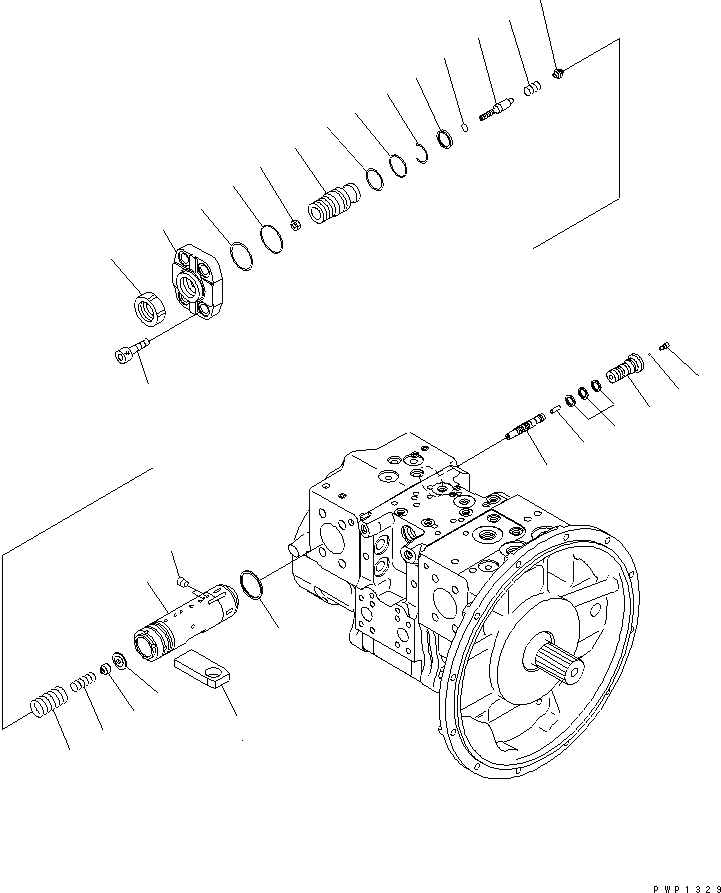

Запчасти Komatsu PW200-7K ОСНОВН. НАСОС (8/) Y ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

708-2L-00202

PUMP ASSEMBLY

|1

708-2L-00200

PUMP ASSEMBLY

|1

708-2L-01203

PUMP SUB ASSEMBLY

|1

708-2L-01201

PUMP SUB ASSEMBLY

1

708-2L-44120

SLIDER

|2

708-2L-06542

VALVE ASSEMBLY, PC

|2

708-2L-06551

PISTON ASSEMBLY, SERVO

2

PISTON, SERVO

3

SCREW

4

708-2G-15320

SEAL

5

708-2L-45131

PLUG

6

708-2L-35760

BALL

7

708-2L-35770

PLUG

8

708-2L-35690

SEAL

9

708-2L-35170

PIN

10

708-2L-35860

SPOOL

11

708-2G-15290

RETAINER

12

708-2L-35641

SEAT

13

708-2L-44180

SPRING

14

708-2L-44190

SPRING

15

708-2L-35650

SEAT

16

708-2L-44140

SPRING

17

708-2L-44151

SCREW

18

07000-B3038

O-RING

19

708-2G-15230

RING

20

708-2G-15260

SEAL

21

708-2L-35660

PLUG

22

07000-B2010

O-RING

23

07000-B2050

O-RING

24

708-2G-15310

RING

25

708-2L-44161

COVER

26

01580-10806

NUT

27

708-2L-35540

NUT

28

708-2G-15330

RING, WIRE

29

01252-61645

BOLT
