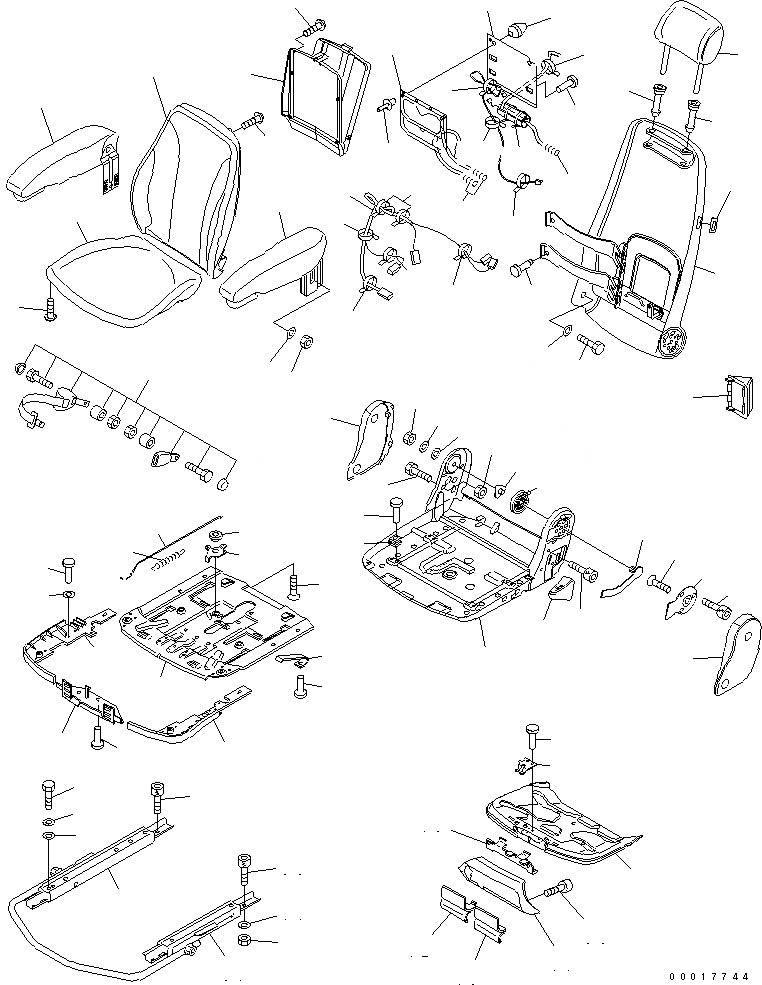

Запчасти Komatsu PW200-7K OPERATORґS СИДЕНЬЕ ASSEMBLY, / (ВОЗД. ПОДВЕСКА) Y ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

20K-57-31160

SEAT ASSEMBLY

1

20K-57-31380

SEAT, CUSHION

2

20K-57-31390

SEAT, CUSHION

3

20K-57-31410

SCREW

4

20K-57-31420

NUT

5

20K-57-31430

SCREW

6

20K-57-31440

REST

7

20K-57-31450

BAND

8

20K-57-31460

WASHER

9

20K-57-31470

SCREW

10

20K-57-31480

RIVET

11

20K-57-31490

WASHER

12

20K-57-31510

WASHER

13

20K-57-31520

SUPPORT

14

20K-57-31530

PLATE

15

20K-57-31540

BUMPER

16

20K-57-31550

SPRING

17

20K-57-31560

PLATE

18

20K-57-31570

RIVET

19

20K-57-31580

SHEET

20

20K-57-31590

BLOCK

21

20K-57-31610

BOX

22

20K-57-31620

COVER KIT

23

20K-57-31630

BRACKET KIT

24

20K-57-31640

RIVET

25

20K-57-31650

WASHER

26

20K-57-31660

COVER

27

20K-57-31670

BEARING

28

20K-57-31680

SPRING

29

20K-57-31690

PLATE

30

20K-57-31710

SCREW

31

20K-57-31720

SCREW

32

20K-57-31730

NUT

33

20K-57-31740

LEVER

34

20K-57-31750

HANDLE

35

20K-57-31760

PLATE

36

20K-57-31770

SCREW

37

20K-57-31780

COVER

38

20K-57-31790

SEAT

39

20K-57-31810

SHEET

40

20K-57-31820

LATCH

41

20K-57-31830

COVER

42

20K-57-31840

HANDLE

43

20K-57-31850

HANDLE

44

20K-57-31860

REST, BACK

45

20K-57-31870

BUSHING

46

20K-57-31880

COVER

47

20K-57-31890

SCREW

48

20K-57-31910

RIVET

50

20K-57-31930

ROD

51

20K-57-31940

SPRING

52

20K-57-31950

BUSHING

53

20K-57-31960

SCREW

54

20K-57-31970

LEVER

55

20K-57-31980

ARM REST

56

20K-57-31990

ARM REST

57

20K-57-32110

RAIL KIT

58

20K-57-32120

SCREW

59

20K-57-32130

SCREW

60

20K-57-32140

SEAT BELT KIT

62

20K-57-32160

BAND

63

20K-57-32170

BAND

64

20K-57-32180

COVER

65

20K-57-32190

CABLE

66

20K-57-32210

SCREW
