Запчасти Komatsu PW200-7E0 СТАРТЕР (.KW) (ВНУТР. ЧАСТИ) AA ДВИГАТЕЛЬ

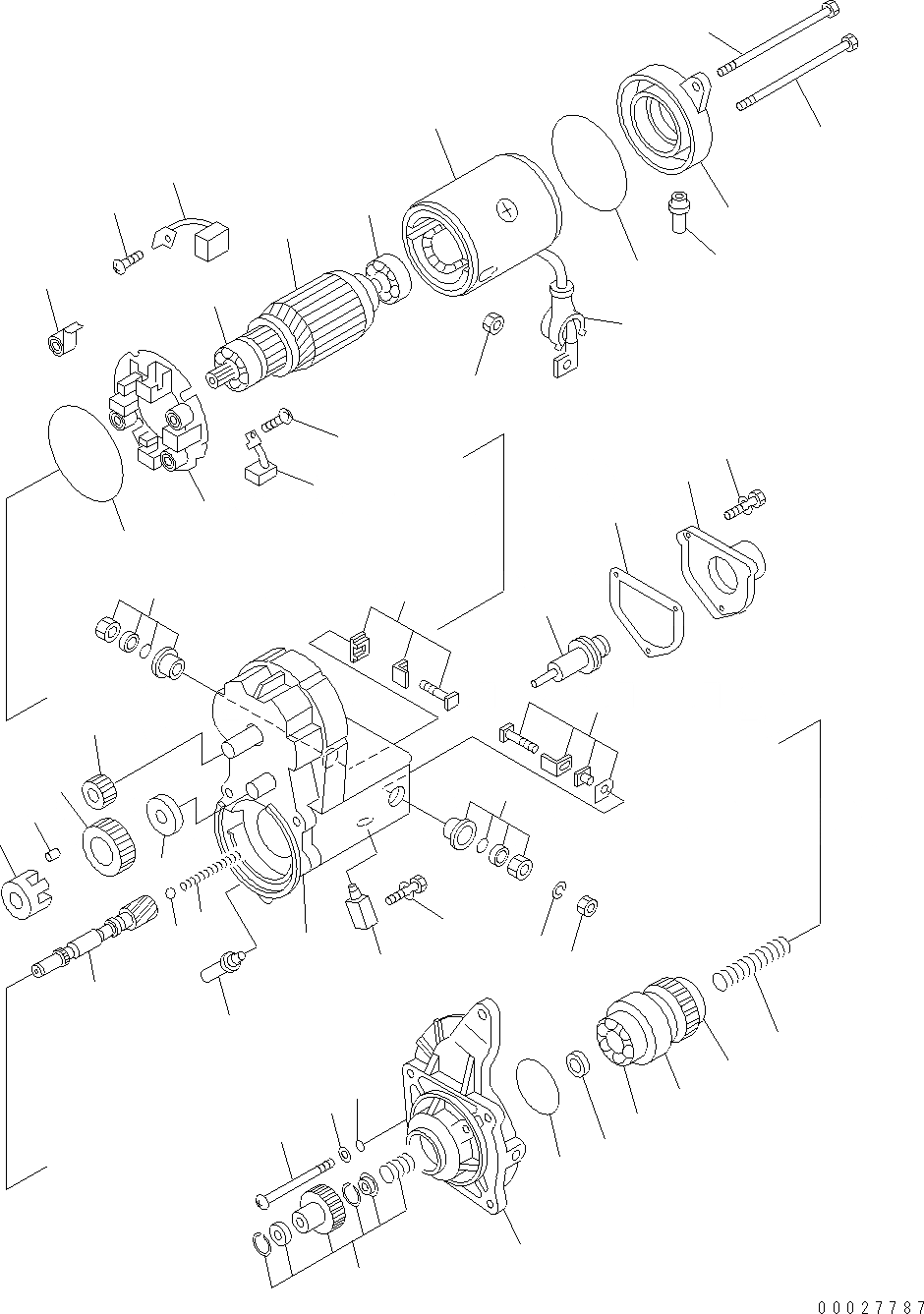

Схема запчастей Komatsu PW200-7E0 - СТАРТЕР (.KW) (ВНУТР. ЧАСТИ) AA ДВИГАТЕЛЬ
32
30
23
43
37
29
34
1
4
2
3
41
39
22
21
40
39
16
17
19
37
14
14
15
13
13
38
26
27
28
35
10
24
25
12
20
18
42
36
44
9
8
6
45
6
7
11
5
33
46
31

Артикул

Название

Примечание

Количество

|$1

600-863-5111

STARTING MOTOR ASSEMBLY

1

ND028100-5410

YOKE ASSEMBLY

2

ND028200-5250

ARMATURE ASSEMBLY

3

ND949100-3161

BEARING{BALL}

|$5

ND949100-5290

BEARING{BALL}

4

ND949100-3540

BEARING{BALL}

|$7

ND028300-6551

CLUTCH ASSEMBLY

5

ND028099-3270

STARTER KIT

6

ND028300-6751

CLUTCH ASSEMBLY

7

ND949100-4500

BEARING{BALL, FRONT}

8

ND949100-1920

BEARING{BALL, REAR}

9

ND949170-4040

SPRING

10

ND028381-0071

SHAFT

11

ND128401-5621

HOUSING

12

ND153400-6740

SWITCH ASSEMBLY{MAGNETIC}

13

ND128099-5770

KIT{STARTER}

14

ND028099-5100

KIT{STARTER}

15

ND053660-0443

PLUNGER

16

ND053404-0240

GASKET

17

ND053505-0290

COVER{SOLENOID}

18

ND053480-7560

BOLT ASSEMBLY{TERMINAL}

19

ND949047-4440

BOLT

20

ND028065-0250

BUSHING{DRAIN}

21

ND028510-0880

HOLDER ASSEMBLY{BRUSH}

22

ND028520-0011

SPRING{BRUSH}

23

ND028501-7711

FRAME

24

ND128961-0010

BALL

25

ND949170-4070

SPRING

26

ND028371-3210

PINION{STARTER}

27

ND028306-0070

ROLLER{CLUTCH}

28

ND028063-0030

RETAINER

29

ND028062-0130

CAP

30

ND949042-3680

BOLT

31

ND90801-10050

O-RING

32

ND949042-3690

BOLT

33

ND949006-4720

SCREW

34

ND949056-4480

NUT

35

ND028327-0171

RETAINER{SNAP}

36

ND90258-10001

WASHER{SPRING}

37

ND028901-0361

SEAL

38

ND028371-3200

PINION

39

ND949007-6530

SCREW

40

ND028530-1090

BRUSH ASSEMBLY

41

ND028530-1100

BRUSH ASSEMBLY

42

ND949007-6850

SCREW

43

ND028062-5790

COVER

44

ND90170-10061

NUT

45

ND028901-5190

SEAL

46

ND90200-06241

WASHER

Выбрано товаров: 49
