Запчасти Komatsu PW200-7E0 CENTRAL СМАЗКА (ФИДЕР TWO-ЧАСТИ-СТРЕЛА) W РАЗНОЕ

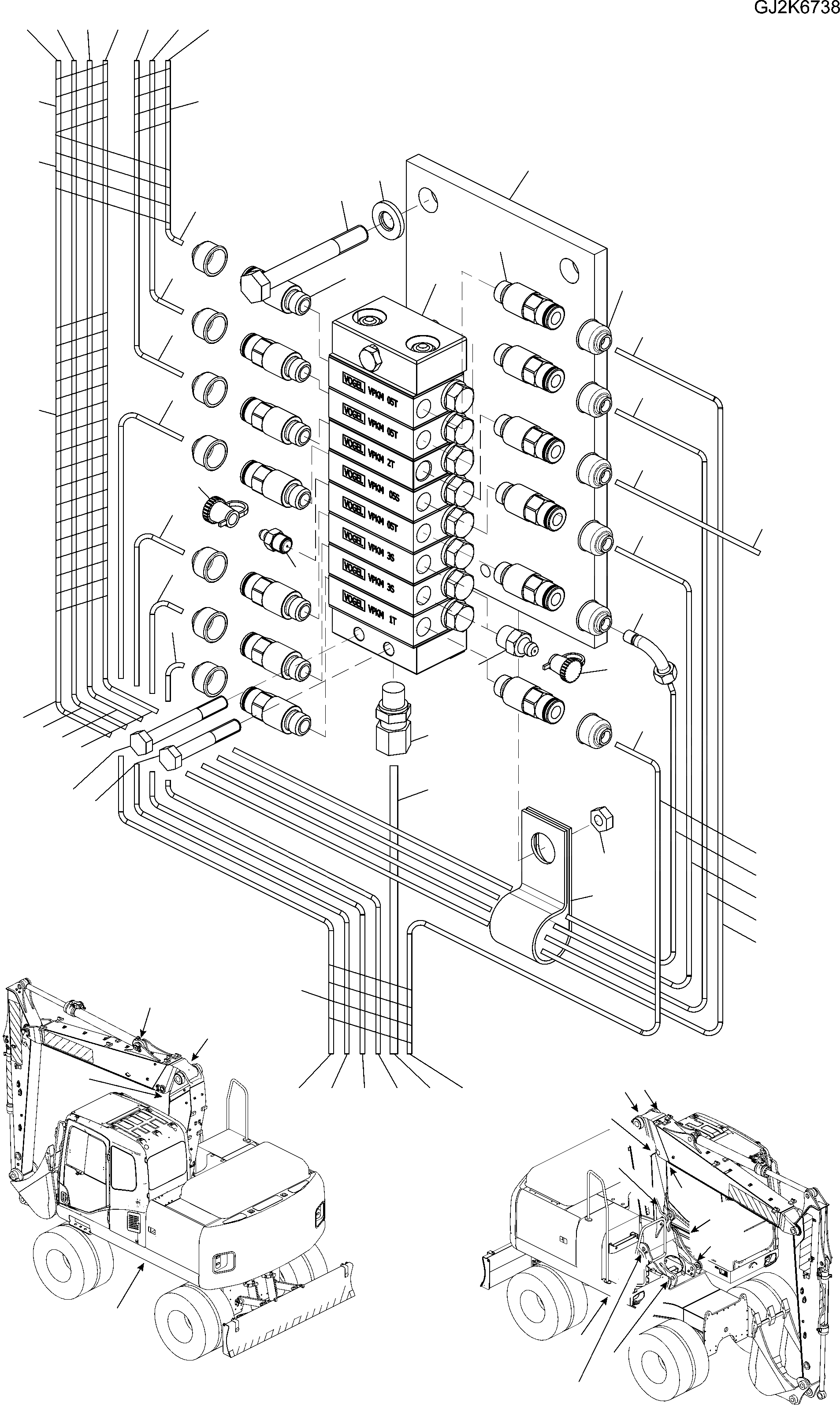

Схема запчастей Komatsu PW200-7E0 - CENTRAL СМАЗКА (ФИДЕР TWO-ЧАСТИ-СТРЕЛА) W РАЗНОЕ
1
2
3
4
5
6
7
25
26
20
27
32
31
7
22
6
22
21
18
5
1
2
8
28
13
24
9
13
3
10
23
4
11
24
23
1
12
2
14
3
4
15
17
19
12
30
4
16
3
2
1
29
1
3
5
6
4
8
9
10
11
15
2
13
7
10
11
8
8
12
9
12

Артикул

Название

Примечание

Количество

|$1

20K-S95-H150

PROGRESSIVE FEEDER

1

418-09-H0640

PLASTIC TUBE, 2.12M (MARK 14)

2

418-09-H0640

PLASTIC TUBE, 2.00M (MARK 11)

3

418-09-H0640

PLASTIC TUBE, 2.70M (MARK 9)

4

42W-09-H4400

HOSE (MARK 8)

5

418-09-H0640

PLASTIC TUBE, 2.35M (MARK 10)

6

418-09-H0640

PLASTIC TUBE, 2.00M (MARK 12)

7

418-09-H0640

PLASTIC TUBE, 3.40M (MARK 13)

8

418-09-H0640

PLASTIC TUBE, 2.75M (MARK1)

9

42W-09-H4290

HOSE (MARK 4)

10

42W-09-H4410

HOSE (MARK 3)

11

418-09-H0640

PLASTIC TUBE, 4.10M (MARK 5)

12

418-09-H0640

PLASTIC TUBE, 4.25M (MARK 6)

13

418-09-H0640

PLASTIC TUBE, 2.00M (MARK 7)

14

42W-09-H2880

UNION

15

42W-09-H4420

HOSE

16

42W-09-H4430

CLIP

17

01010-80650

BOLT

18

42W-09-H2940

CAP

19

01010-80640

BOLT

20

42W-09-H4440

MOUNTING PLATE

21

20K-S95-H200

FEEDER (WITH VALVES)

22

42W-09-H4650

VALVE

23

421-09-H3870

NIPPLE

24

42W-09-H3350

CAP

25

42W-09-H4460

COVER (SPIRAL)

26

42W-09-H4460

COVER (SPIRAL)

27

42W-09-H4470

COVER (SPIRAL)

28

42W-09-H4460

COVER (SPIRAL)

29

42W-09-H4470

COVER (SPIRAL)

30

01580-10605

NUT

31

01010-80865

BOLT

32

01643-30823

WASHER

1

ARM CYLINDER, BOTTOM

2

BOOM CYLINDER, TOP, RHS

3

2ND BOOM FOOT PIN, RHS

4

2ND BOOM FOOT PIN, MIDDLE

5

2ND BOOM FOOT PIN, LHS

6

BOOM CYLINDER, TOP, LHS

7

BOOM ADJUST CYLINDER, TOP

8

SWING CIRCLE

9

1ST BOOM FOOT PIN, RHS

10

1ST BOOM FOOT PIN, LHS

11

BOOM CYLINDER, BOTTOM, LHS

12

BOOM CYLINDER, BOTTOM, RHS

13

BOOM ADJUST CYLINDER, BOTTOM

Выбрано товаров: 46
