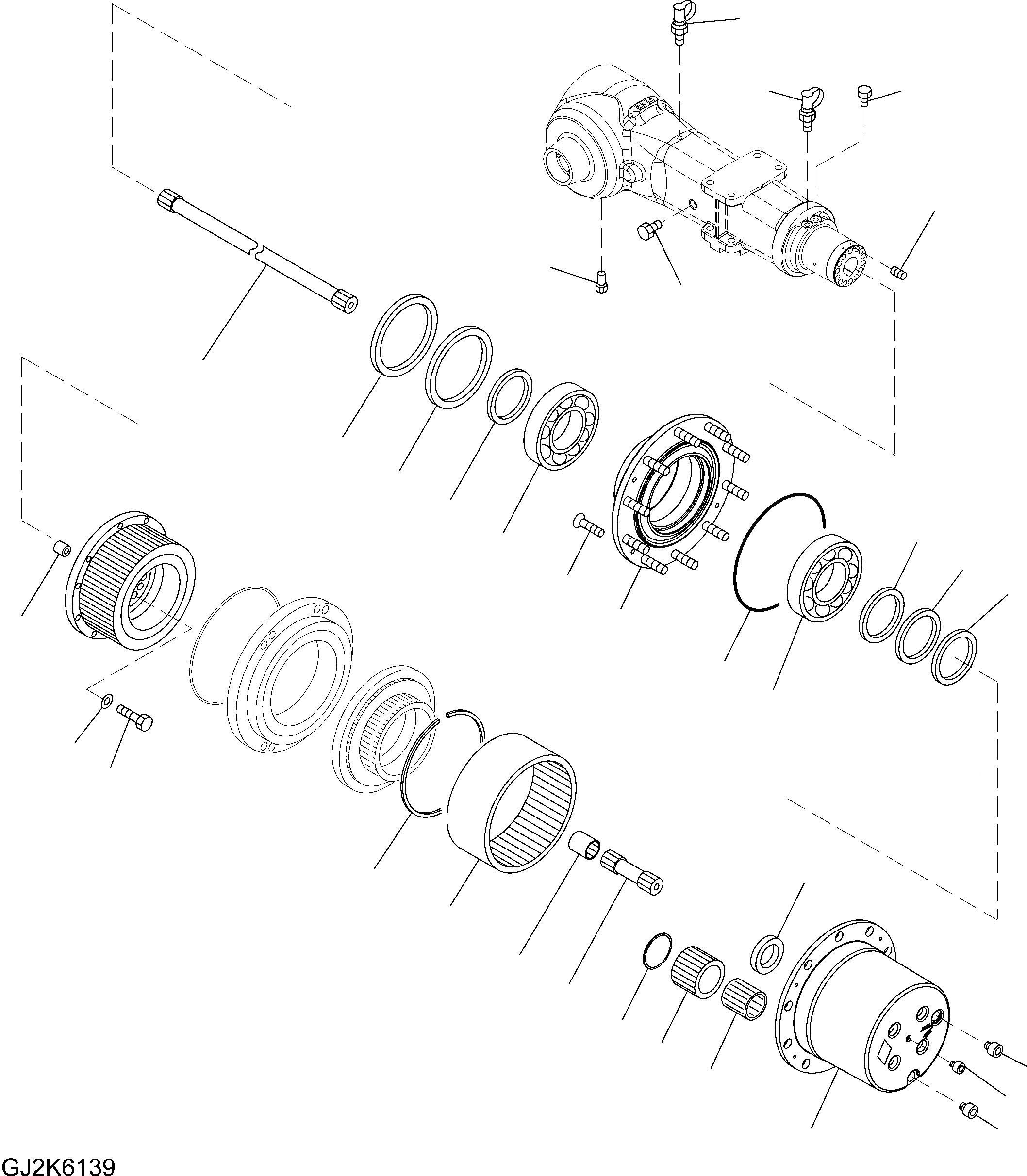

Запчасти Komatsu PW200-7E0 ЗАДН. МОСТ (/) (.M ШИР.) ВТУЛКА И PLANETARY НЕСУЩИЙ ЭЛЕМЕНТ S ПОДВЕСКА И КОЛЕСА

|$1

20K-22-31001

AXLE ASSEMBLY

1

20K-22-31120

HUB

|$4

20K-22-31850

WHEEL STUD

2

20K-22-31130

GEAR

3

20K-22-31140

SLEEVE

|$7

20J-22-11150

PLANETARY CARRIER ASSEMBLY

4

20J-22-11160

PLANETARY CARRIER

5

20K-22-31170

GEAR, SPUR

6

20K-22-31270

PLUG

7

20K-22-31180

WASHER

8

20K-22-31190

BEARING, ROLLER

9

20K-14-32330

PLUG

10

20G-23-31370

CLIP

11

20K-22-31820

SHAFT

12

20K-22-31230

WHEEL

13

20K-22-31240

CIRCLIP

14

20K-22-31250

WASHER

15

20K-22-31260

BUSHING

16

20K-22-31270

PLUG

17

20K-14-32330

PLUG

18

20K-22-31280

PLUG

19

20K-22-31310

GASKET

20

20K-22-31320

SEAL RING

21

20K-22-31330

VALVE

22

20K-22-31340

FITTING

23

20K-22-31350

PLUG

24

20K-22-31360

PLUG

25

20K-22-31370

BEARING

26

20K-22-31380

SCREW

27

20K-22-31390

SCREW

28

20J-22-11200

SHIM

29

20K-22-31410

SHIM, 0.3MM

30

20K-22-31420

SHIM, 0.5MM

31

20K-22-31430

CIRCLIP

32

20K-22-31440

O-RING
