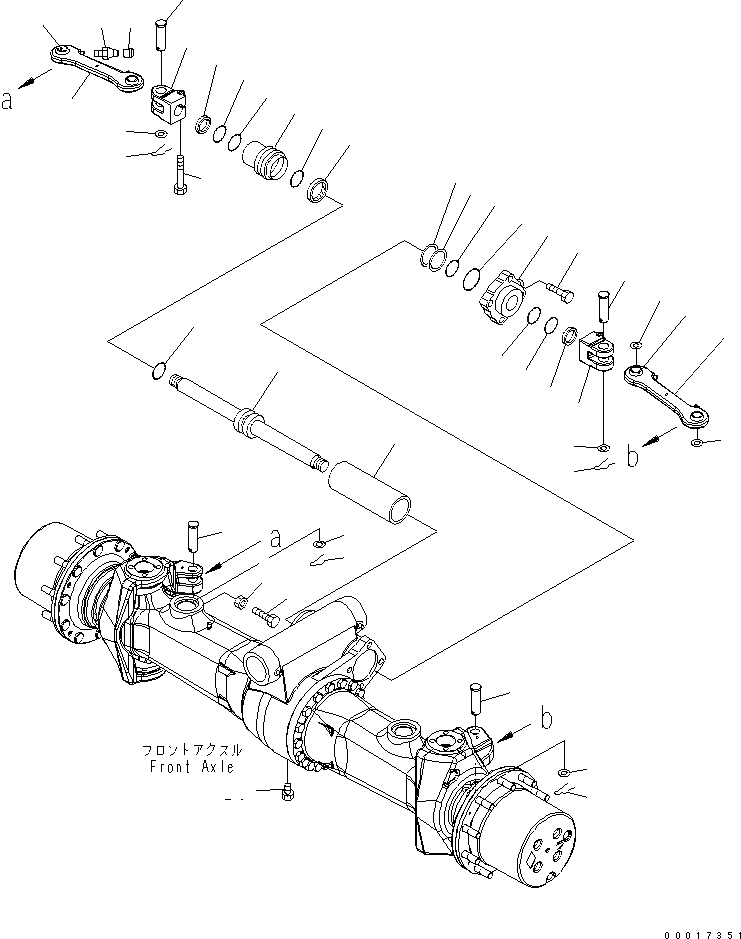

Запчасти Komatsu PW200-7 ПЕРЕДНИЙ МОСТ (/) (.M ШИР.) SUSPENTION И КОЛЕСА

|1

20K-23-31001

AXLE ASS'Y,FRONT

1

20K-23-31220

SHIM

2

20K-22-31620

SHIM

3

20K-23-31250

ROD,CONNECTING

|4

20K-23-31980

TIE ROD ASS'Y

4

20K-23-31990

TIE ROD

5

20K-23-31280

BEARING

6

20K-23-31290

NIPPLE

7

20K-23-31310

CAP,PROTECTION

8

20K-23-31320

COVER

9

20K-23-31330

BUSHING

10

20K-23-31340

HOSE,CYLINDER

11

20K-23-31350

FORK

12

20K-23-31360

PIN

13

20K-23-31370

GASKET,PISTON

14

20K-23-31380

RING,GROOVE

15

20K-23-31390

EXTRACTOR

16

20K-23-31410

O-RING

17

20K-23-31420

O-RING

18

20K-23-31430

SCREW

19

20K-23-31440

SCREW

20

20K-23-31450

PIN,SNAP

21

20K-23-31460

WASHER

22

20K-23-31470

WASHER

23

20K-23-31480

PLUG

24

20K-23-31490

O-RING

25

20K-23-31510

NUT

26

20K-23-31520

SCREW

27

20K-23-31530

GASKET,PISTON
