Запчасти Komatsu PW200-1 ОСНОВН. КЛАПАН (7/7) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

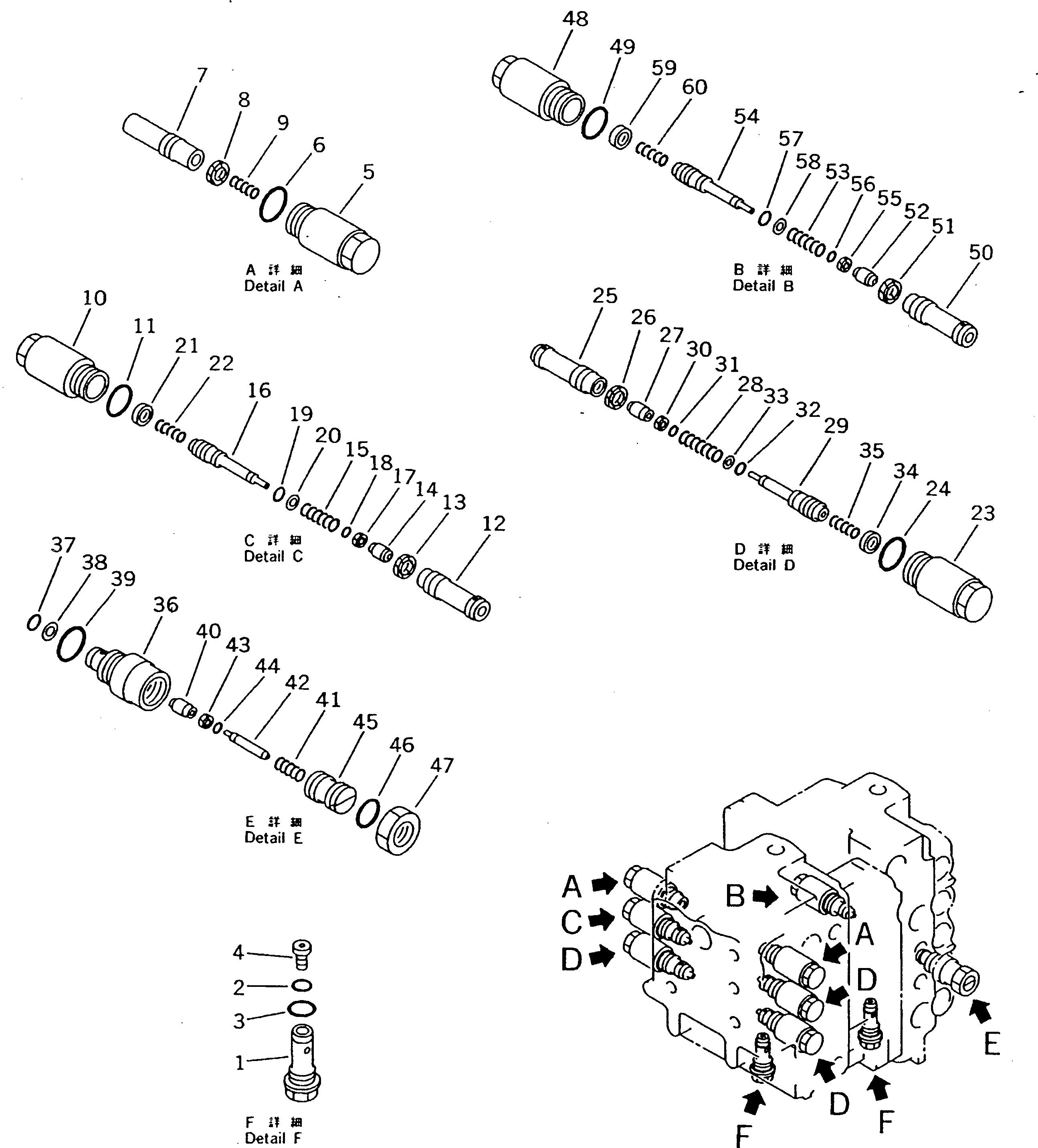

Схема запчастей Komatsu PW200-1 - ОСНОВН. КЛАПАН (7/7) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

Артикул

Название

Примечание

Количество

|1

709-79-12307

CONTROL VALVE ASS'Y

|1

709-79-12306

CONTROL VALVE ASS'Y

|1

709-79-12305

CONTROL VALVE ASS'Y

|1

709-79-12304

CONTROL VALVE ASS'Y

|1

709-79-12303

CONTROL VALVE ASS'Y

|1

709-79-12302

CONTROL VALVE ASS'Y

|1

709-79-12301

CONTROL VALVE ASS'Y

|1

709-70-91300

ORIFICE ASS'Y

1

ORIFICE

2

07000-02014

O-RING

3

07002-02434

O-RING

4

SENSOR

|5

700-81-81000

VALVE ASS'Y,SUCTION

5

SLEEVE

6

07002-03034

O-RING

7

VALVE

8

SEAL

9

SPRING

|10

709-70-61101

VALVE ASS'Y,SUCTION AND SAFETY

|10

709-70-61100

VALVE ASS'Y,SUCTION AND SAFETY

10

SLEEVE

11

07002-03034

O-RING

12

VALVE

13

SEAL

14

POPPET

15

SPRING

16

PISTON

17

SEAL

18

O-RING

19

O-RING

20

RING,BACK-UP

21

NUT

|21

NUT

22

SPRING

|23

709-70-61201

VALVE ASS'Y,SUCTION AND SAFETY

|23

709-70-61200

VALVE ASS'Y,SUCTION AND SAFETY

23

SLEEVE

24

07002-03034

O-RING

25

VALVE

26

SEAL

27

POPPET

28

SPRING

29

PISTON

30

SEAL

31

O-RING

32

O-RING

33

RING,BACK-UP

34

NUT

|34

NUT

35

SPRING

|36

709-70-62200

VALVE ASS'Y,SAFETY

36

SLEEVE

37

700-22-11410

O-RING

38

700-80-64220

RING,BACK-UP

39

07002-03034

O-RING

40

POPPET

41

SPRING

42

PISTON

43

SEAL

44

O-RING

45

SCREW

46

O-RING

47

NUT

|48

709-70-61601

VALVE ASS'Y,SUCTION AND SAFETY

|48

709-70-61600

VALVE ASS'Y,SUCTION AND SAFETY

48

SLEEVE

49

07002-03034

O-RING

50

VALVE

51

SEAL

52

POPPET

53

SPRING

54

PISTON

55

SEAL

56

O-RING

57

O-RING

58

RING,BACK-UP

59

NUT

|59

NUT

60

SPRING

Выбрано товаров: 79
