Запчасти Komatsu PW200-1 ОСНОВН. КЛАПАН (/7) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

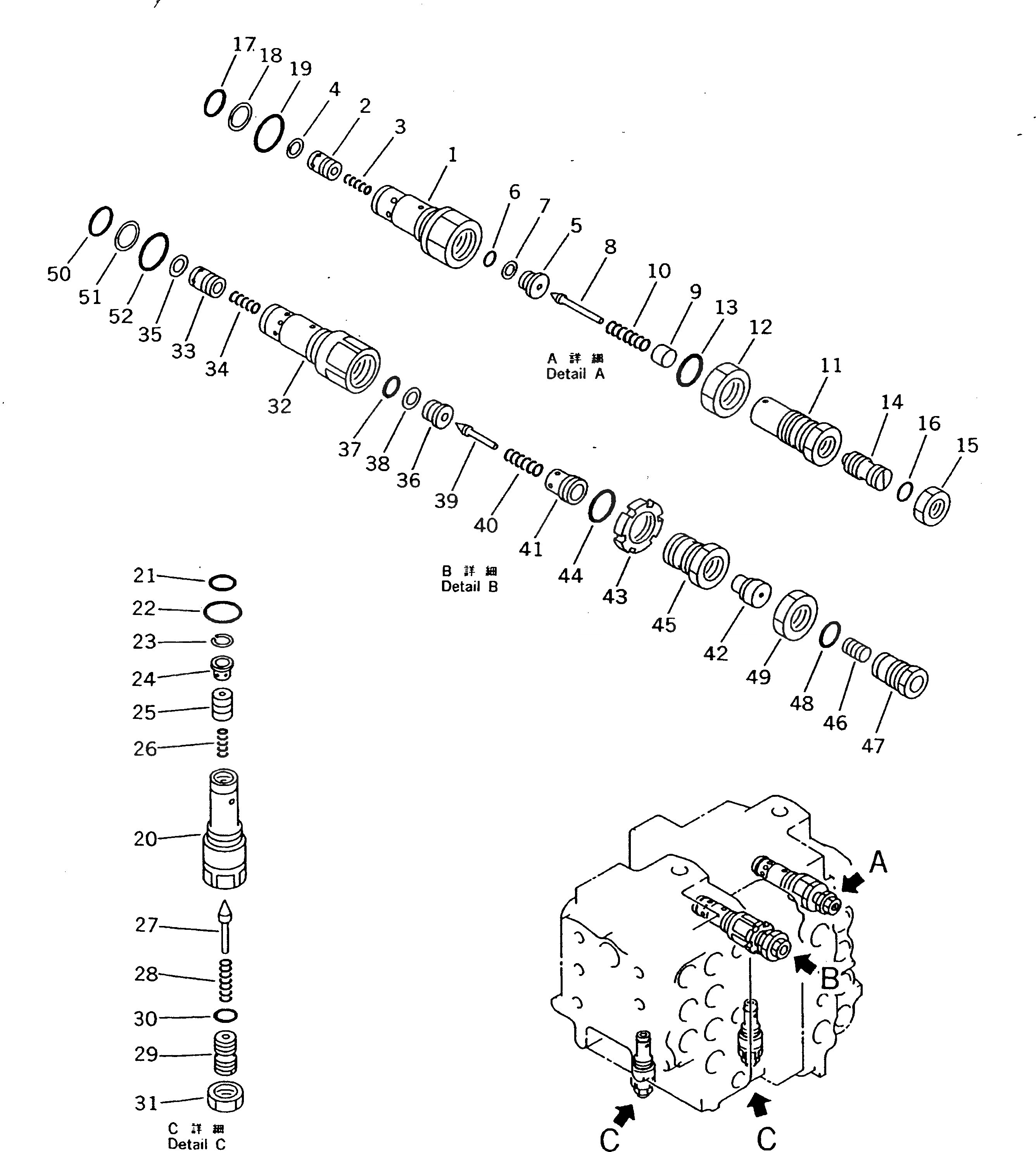

Схема запчастей Komatsu PW200-1 - ОСНОВН. КЛАПАН (/7) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

Артикул

Название

Примечание

Количество

|1

709-79-12307

CONTROL VALVE ASS'Y

|1

709-79-12306

CONTROL VALVE ASS'Y

|1

709-79-12305

CONTROL VALVE ASS'Y

|1

709-79-12304

CONTROL VALVE ASS'Y

|1

709-79-12303

CONTROL VALVE ASS'Y

|1

709-79-12302

CONTROL VALVE ASS'Y

|1

709-79-12301

CONTROL VALVE ASS'Y

|1

709-70-51200

RELIEF VALVE ASS'Y

1

SLEEVE

2

VALVE

3

SPRING

4

RING,SNAP

5

SEAT

6

O-RING

7

RING,BACK-UP

8

POPPET

9

RETAINER

10

SPRING

11

HOLDER

12

NUT

13

O-RING

14

SCREW

15

NUT

16

O-RING

17

700-13-31161

O-RING

18

700-80-51190

RING,BACK-UP

19

07002-03334

O-RING

|20

709-70-55103

RELIEF VALVE ASS'Y

|20

709-70-55102

RELIEF VALVE ASS'Y

|20

709-70-55101

RELIEF VALVE ASS'Y

20

SLEEVE

|20

SLEEVE

|20

SLEEVE

21

700-22-11410

O-RING

22

07002-02434

O-RING

23

RING,SNAP

24

RETAINER

25

VALVE

26

SPRING

27

POPPET

|27

POPPET

28

SPRING

|28

SCREW

|28

SPRING

29

SCREW

|29

SCREW

|29

SCREW

30

O-RING

31

NUT

|32

709-70-51300

RELIEF VALVE ASS'Y

32

SLEEVE

33

VALVE

34

SPRING

35

RING,SNAP

36

SEAT

37

O-RING

38

RING,BACK-UP

39

POPPET

40

SPRING

41

SLEEVE

42

RETAINER

43

NUT

44

O-RING

45

HOLDER

46

PISTON

47

PLUG

48

O-RING

49

NUT

50

700-13-31161

O-RING

51

700-80-51190

RING

52

07002-03334

O-RING

Выбрано товаров: 71
