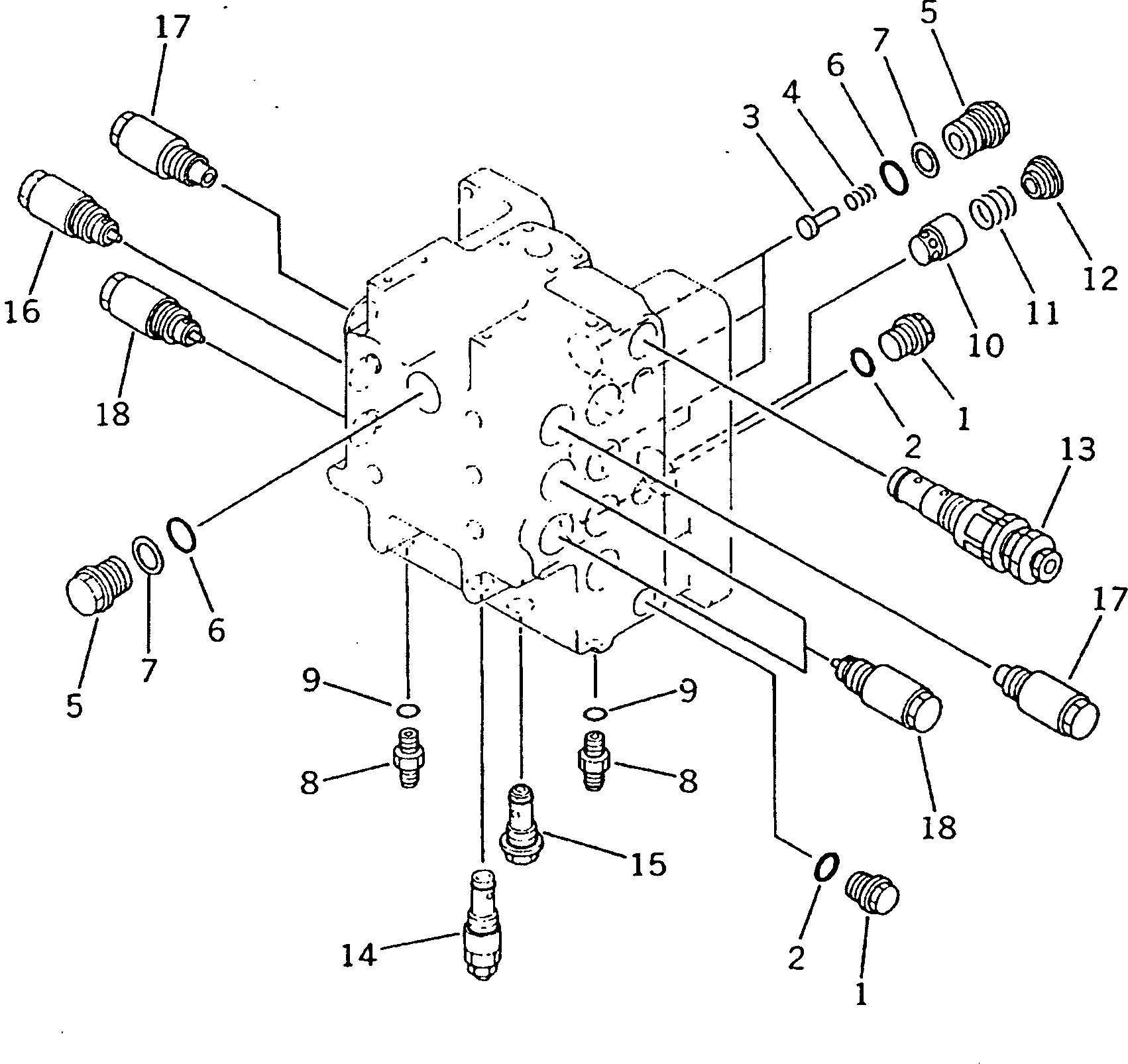

Запчасти Komatsu PW200-1 ОСНОВН. КЛАПАН (/7) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

709-79-12307

CONTROL VALVE ASS'Y

|1

709-79-12306

CONTROL VALVE ASS'Y

|1

709-79-12305

CONTROL VALVE ASS'Y

|1

709-79-12304

CONTROL VALVE ASS'Y

|1

709-79-12303

CONTROL VALVE ASS'Y

|1

709-79-12302

CONTROL VALVE ASS'Y

|1

709-79-12301

CONTROL VALVE ASS'Y

|1

709-74-92304

VALVE ASS'Y

|1

709-74-92303

VALVE ASS'Y

|1

709-74-92302

VALVE ASS'Y

|1

709-74-92301

VALVE ASS'Y

1

700-22-11370

PLUG

2

07002-12434

O-RING

3

709-74-92810

VALVE,CHECK

|3

709-75-92210

VALVE,CHECK

4

709-75-92220

SPRING

5

709-74-92821

PLUG

|5

709-74-92820

PLUG

|5

709-75-92230

PLUG

6

700-93-11320

O-RING

7

700-93-11330

RING,BACK-UP

8

709-75-92240

UNION

9

07002-11623

O-RING

10

709-74-92281

VALVE

|10

709-74-92280

VALVE

11

709-74-92290

SPRING

12

709-74-92310

SEAT

13

709-70-51300

RELIEF VALVE ASS'Y

14

709-70-55103

RELIEF VALVE ASS'Y

|14

709-70-55102

RELIEF VALVE ASS'Y

|14

709-70-55101

RELIEF VALVE ASS'Y

15

709-70-91300

ORIFICE ASS'Y

16

709-70-61101

VALVE ASS'Y,SUCTION AND SAFETY

|16

709-70-61100

VALVE ASS'Y,SUCTION AND SAFETY

17

700-81-81000

VALVE ASS'Y,SUCTION

18

709-70-61201

VALVE ASS'Y,SUCTION AND SAFETY

|18

709-70-61200

VALVE ASS'Y,SUCTION AND SAFETY
