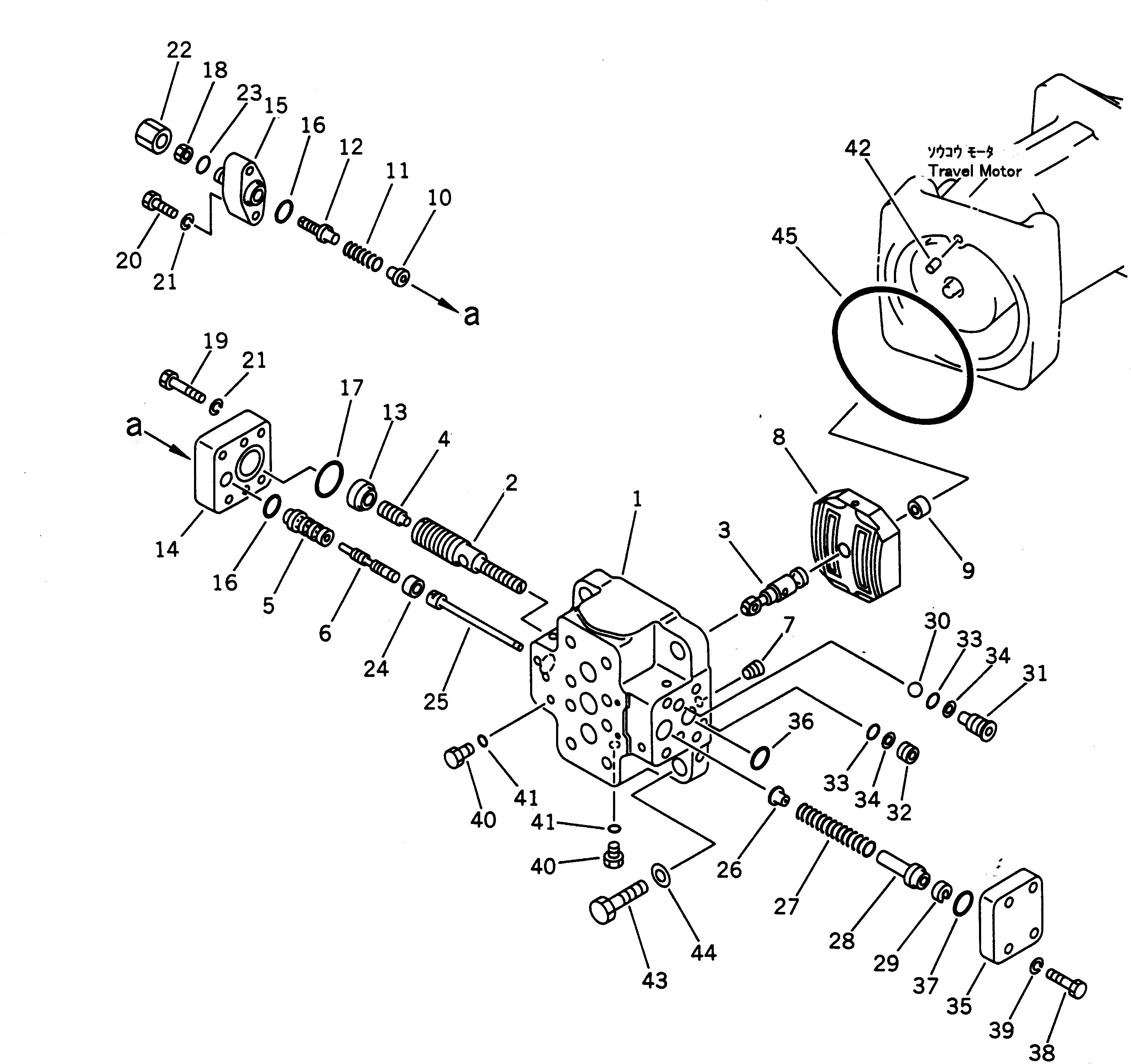

Запчасти Komatsu PW200-1 МОТОР ХОДА (/) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

706-87-01103

MOTOR ASS'Y

|1

706-87-01102

MOTOR ASS'Y

|1

706-87-03201

MOTOR ASS'Y

|1

706-87-03200

MOTOR ASS'Y

|1

706-87-00020

END COVER SUB ASS'Y

|1

706-87-00120

END COVER SUB ASS'Y

1

COVER,END

2

PISTON

3

PIN

4

SCREW

5

SLEEVE

6

SPOOL

7

PLUG

8

706-87-40845

PLATE,VALVE

9

706-77-42071

BUSHING

10

706-86-50121

SEAT,SPRING

11

706-86-50130

SPRING

12

706-87-50141

SCREW

13

706-87-51510

SPACER

14

706-87-50041

PLATE

15

706-87-51220

PLATE

16

07000-13025

O-RING

17

07000-13042

O-RING

18

01580-10806

NUT

19

01010-81055

BOLT

20

01010-81065

BOLT

21

01602-21030

WASHER

22

706-87-50081

CAP

23

07002-01823

O-RING

24

706-87-51270

RETAINER

25

706-87-51230

ROD

26

706-87-51240

RETAINER

27

706-87-51170

SPRING

28

706-87-51250

RETAINER

29

706-87-51260

PLATE

30

04260-00793

BALL

31

706-85-50340

SEAT

32

706-86-51160

PLUG

33

07000-11008

O-RING

34

07001-01008

RING

35

706-87-50411

PLATE

36

07000-13025

O-RING

37

07000-03028

O-RING

38

01010-81045

BOLT

39

01602-21030

WASHER

40

706-75-71420

PLUG

41

07002-10823

O-RING

42

04020-01024

PIN

43

01010-52065

BOLT

44

01643-32060

WASHER

45

07000-05200

O-RING
