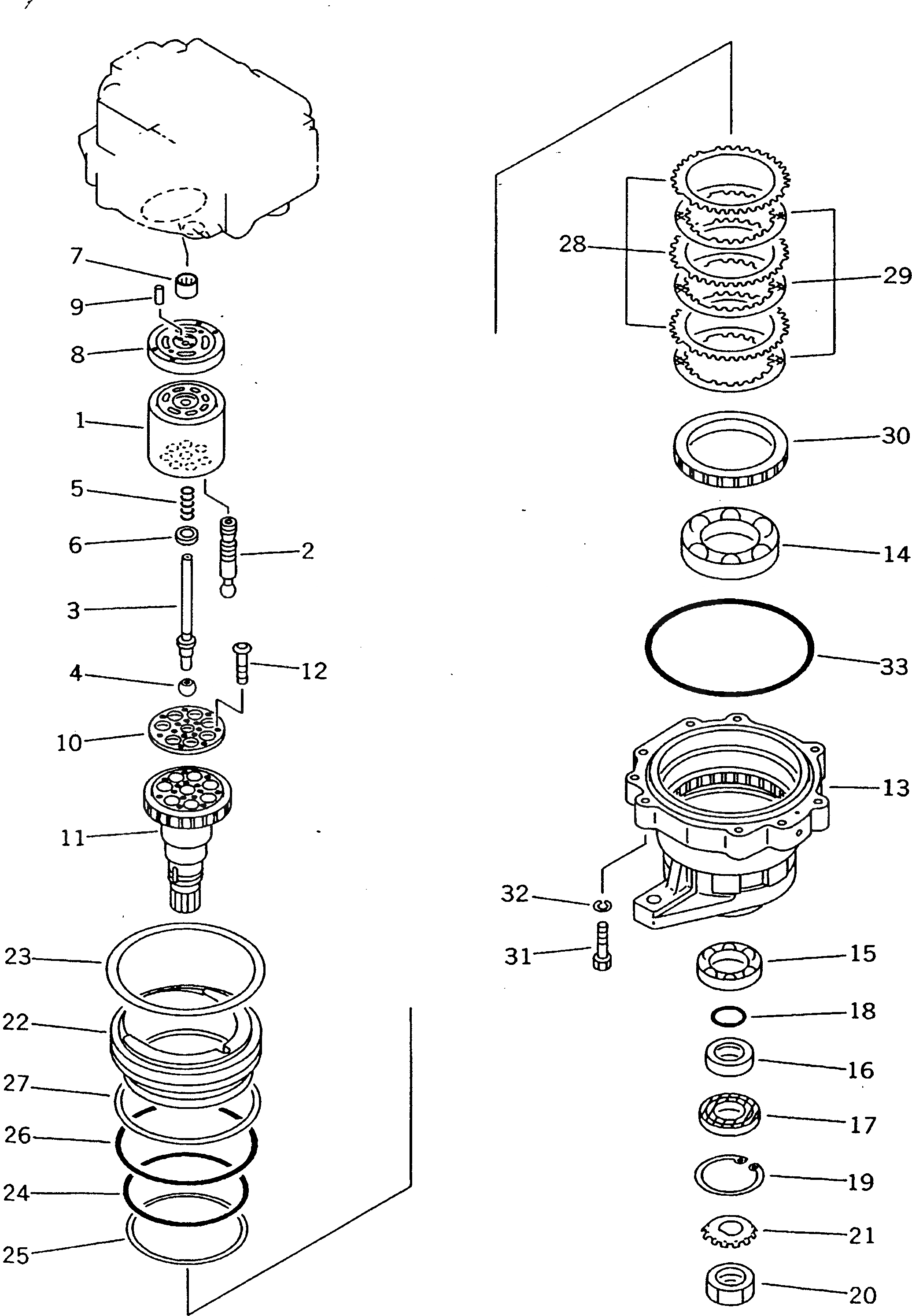

Запчасти Komatsu PW200-1 МОТОР ПОВОРОТА (/) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

706-75-11304

MOTOR ASS'Y

|1

706-75-11303

MOTOR ASS'Y

|1

706-75-11302

MOTOR ASS'Y

1

..BLOCK,CYLINDER

2

..PISTON SUB ASS'Y

3

..SHAFT,CENTER

4

..BALL,CENTER

5

..SPRING

6

..RING,CENTER

7

..BEARING

8

..PLATE,VALVE

9

..PIN,DOWEL

|10

706-75-05020

..RETAINER KIT

10

...RETAINER

11

..SHAFT,DRIVE

|11

..SHAFT,DRIVE

12

...SCREW

13

..CASE,BRAKE

14

..BEARING

15

..BEARING

16

..RING

17

706-76-41931

..SEAL,OIL

|17

706-76-40920

..SEAL,OIL

18

..O-RING

19

04065-09030

..RING,SNAP

20

..NUT

21

..WASHER

22

..PISTON,BRAKE

23

..SPRING

24

..O-RING

25

..RING,BACK-UP

26

..O-RING

27

..RING,BACK-UP

28

..PLATE

29

..DISC

30

..PLATE

31

..BOLT

32

..WASHER,SPRING

33

..O-RING
