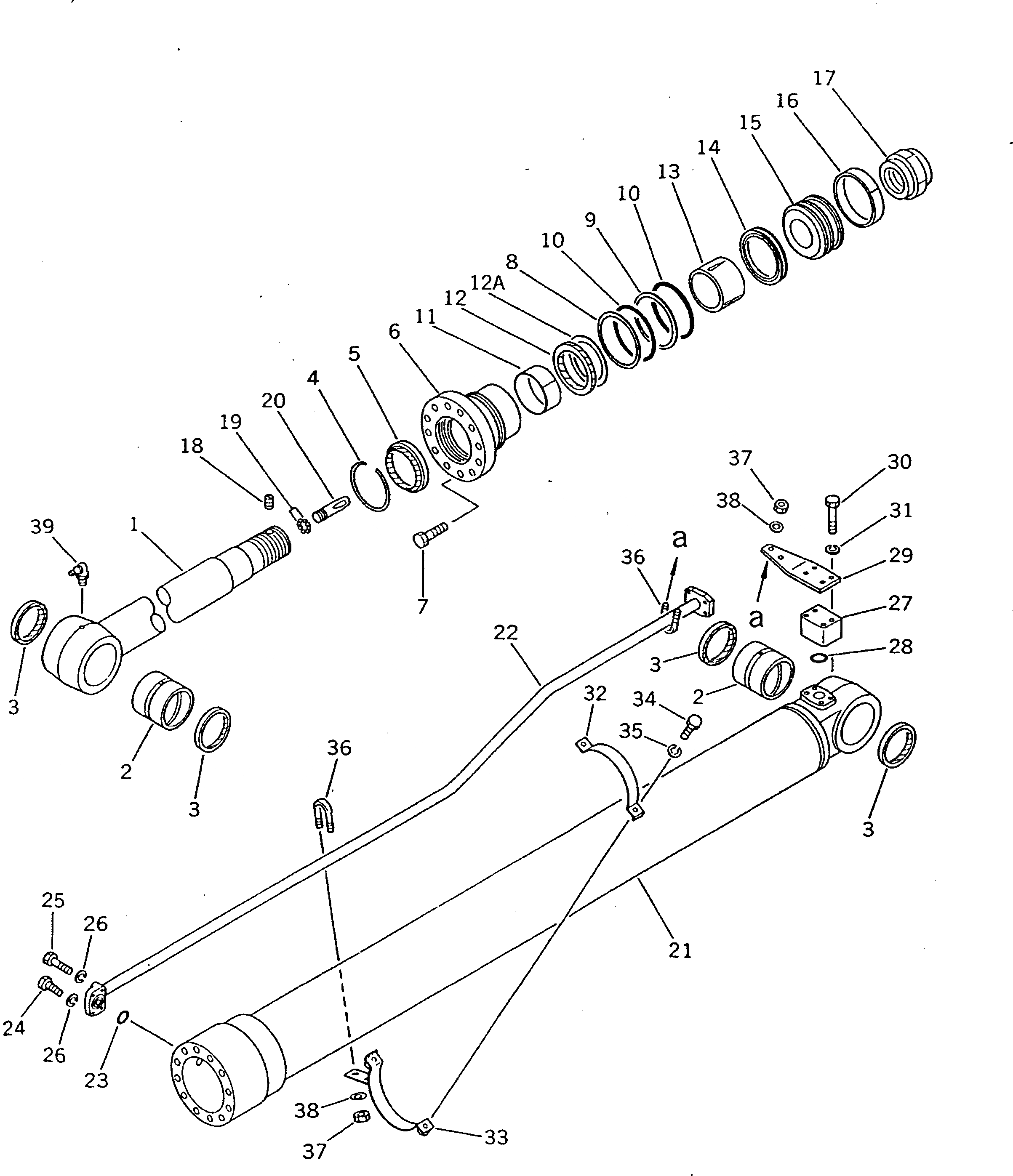

Запчасти Komatsu PW200-1 ЦИЛИНДР РУКОЯТИ(№-) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

205-63-62101

ARM CYLINDER ASS'Y

1

205-63-62122

ROD,PISTON

2

707-76-80010

BUSHING

3

07145-00080

SEAL,DUST (KIT)

4

707-75-10030

RING,SNAP

5

707-56-95510

SEAL,DUST (KIT)

6

707-28-13270

HEAD,CYLINDER

7

01010-81655

BOLT

8

07146-02126

RING,BACK-UP (KIT)

9

707-35-91310

RING,BACK-UP (KIT)

10

07000-12125

O-RING (KIT)

11

707-52-10950

BUSHING

12

707-51-95211

PACKING,ROD (KIT)

13

707-71-50011

PLUNGER

14

707-44-13180

RING,PISTON (KIT)

15

707-36-13460

PISTON

16

07155-01330

RING,WEAR (KIT)

17

707-68-10680

NUT

18

707-71-91250

SCREW

19

04260-00635

BALL

20

707-71-50252

PLUNGER

21

205-63-62141

CYLINDER

22

205-63-62170

TUBE

23

07000-13030

O-RING (KIT)

24

01010-50845

BOLT

25

01010-50855

BOLT

26

01602-20825

WASHER,SPRING

27

20D-62-17860

ELBOW

28

07000-13035

O-RING (KIT)

29

707-88-10820

PLATE

30

01010-51080

BOLT

31

01602-21030

WASHER,SPRING

32

707-88-99360

BAND

33

707-88-99310

BAND

34

01010-51035

BOLT

35

01602-21030

WASHER,SPRING

36

07283-22738

CLIP

37

01599-01011

NUT

38

01643-31032

WASHER

39

07020-00900

FITTING,GREASE
