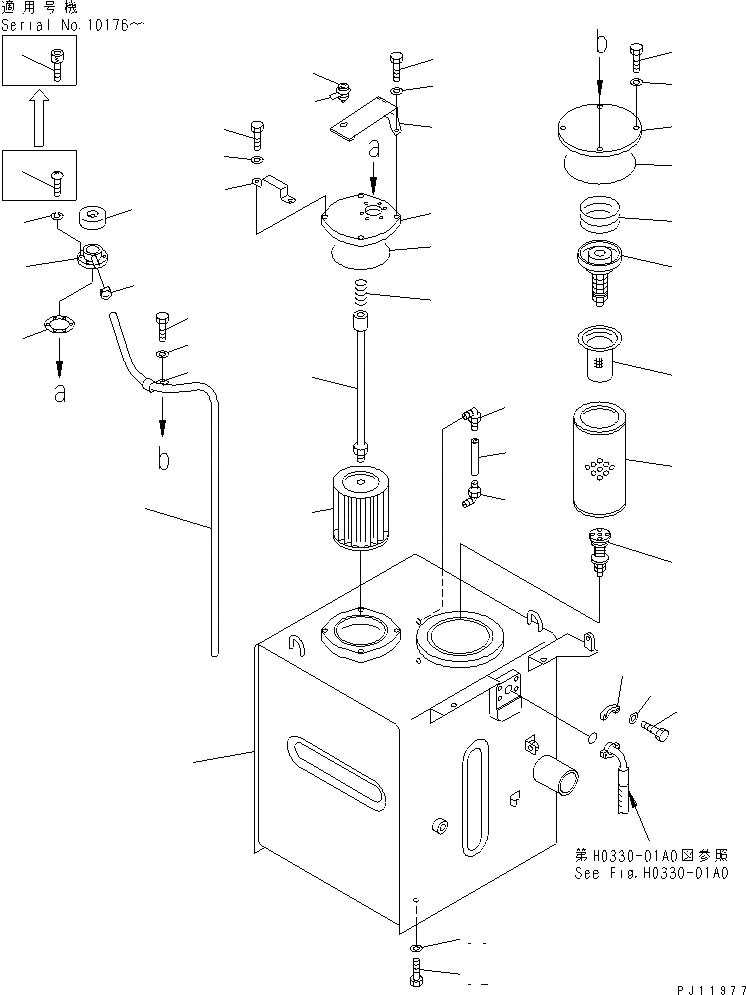

Запчасти Komatsu PW200-1 ГИДРАВЛ МАСЛ. БАК ГИДРАВЛИКА

|1

20K-60-00012

HYDRAULIC TANK ASS'Y

|1

20K-60-00011

HYDRAULIC TANK ASS'Y

|1

20K-60-00010

HYDRAULIC TANK ASS'Y

1

TANK,HYDRAULIC

2

203-60-31100

ELBOW ASS'Y

3

203-60-31160

TUBE

4

201-60-12190

CAP ASS'Y

5

201-60-12171

FILLER

6

01252-70516

BOLT

|6

01220-40516

SCREW

7

01601-20513

WASHER,SPRING

8

20Y-60-21340

GASKET

|8

205-60-51460

GASKET

9

205-60-71190

COVER

10

205-60-71220

LOCK ASS'Y

11

205-54-76280

ROTOR ASS'Y

12

205-60-71210

BRACKET

13

01010-81035

BOLT

|13

01010-51035

BOLT

14

01643-31032

WASHER

15

203-60-31192

COVER

16

07000-15180

O-RING

|16

07000-05180

O-RING

17

12R-60-11230

SPRING

18

205-60-71170

SUPPORT

19

205-60-51450

STRAINER

20

205-60-71270

VALVE

21

07063-01142

ELEMENT

|21

195-60-16320

ELEMENT

22

206-60-41221

STRAINER

|22

206-60-41220

STRAINER

23

12R-60-11300

VALVE ASS'Y

24

12R-60-11390

SPRING

25

205-60-71141

COVER

26

07000-15180

O-RING

|26

07000-05180

O-RING

27

01010-81230

BOLT

|27

01010-51230

BOLT

28

01643-31232

WASHER

29

207-60-11350

TUBE

30

07285-00100

CLIP

31

08036-11214

CLIP

32

01010-81635

BOLT

|32

01010-51635

BOLT

33

01643-31645

WASHER

34

07371-31465

FLANGE

35

07372-21235

BOLT

36

01643-51232

WASHER
