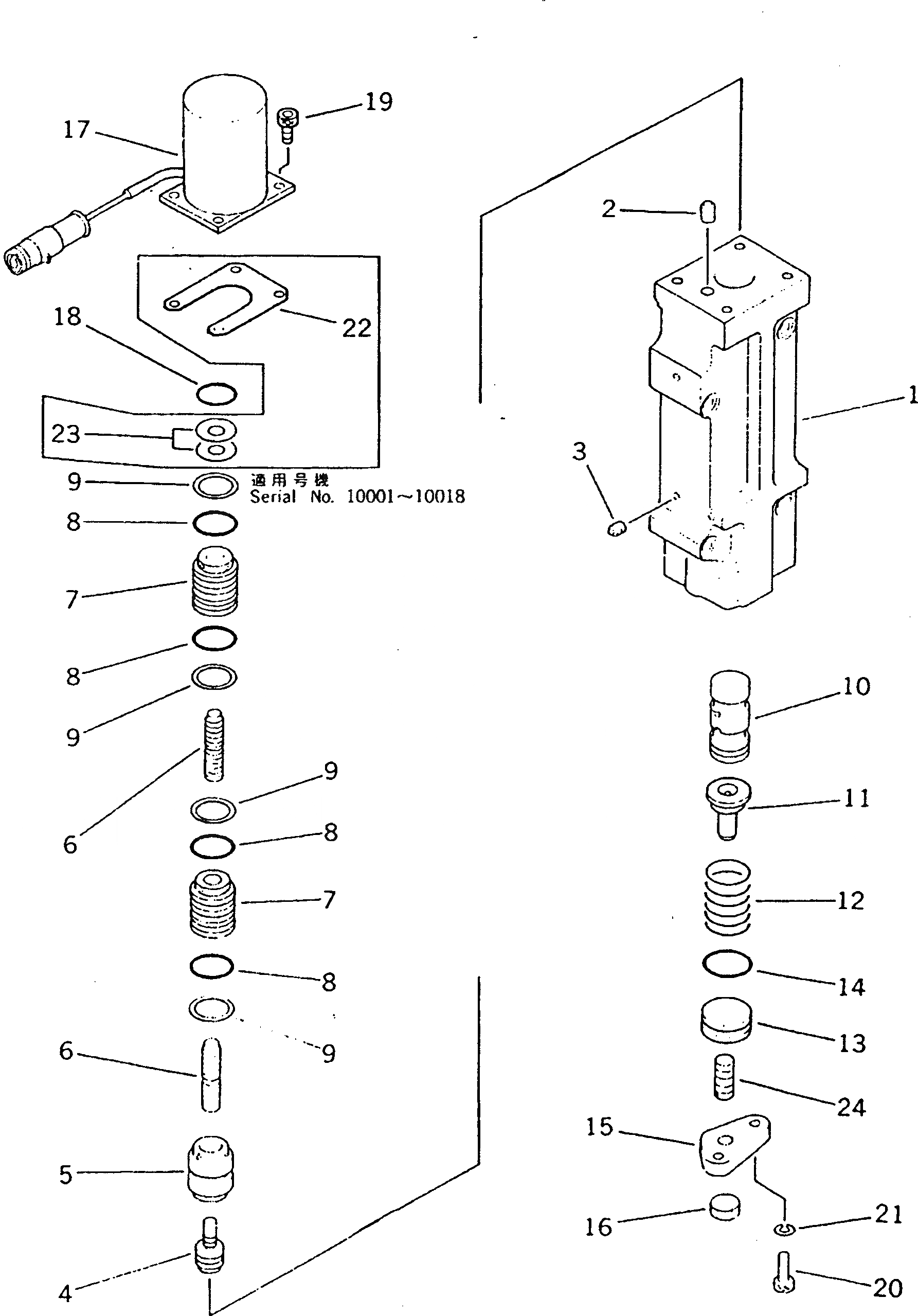

Запчасти Komatsu PW200-1 ОСНОВН. НАСОС (/) ОСНОВН. КОМПОНЕНТЫ И РЕМКОМПЛЕКТЫ

|1

708-25-02071

PUMP ASS'Y

|1

708-25-02070

PUMP ASS'Y

|1

708-25-07421

SERVO VALVE ASS'Y

|1

708-25-07420

SERVO VALVE ASS'Y

|1

708-25-07720

VALVE ASS'Y

|1

708-25-18100

VALVE ASS'Y

|1

708-23-07090

BODY ASS'Y

|1

708-23-07051

BODY ASS'Y

1

BODY

|1

BODY

2

PLUG

3

EXPANDER

4

708-23-18120

PISTON

5

708-25-18130

BOLT

6

708-25-18120

PISTON

|6

708-23-18140

PISTON

7

708-23-18150

SLEEVE

8

07000-12016

O-RING

9

07001-02016

RING,BACK-UP

10

708-23-18161

SPOOL

11

708-23-18170

SEAT

12

708-23-18181

SPRING

13

708-23-15160

PLUG

14

07000-02018

O-RING

15

708-23-18210

COVER

16

01580-10806

NUT

17

708-23-18221

SOLENOID ASS'Y

18

07000-02016

O-RING

19

708-23-18250

BOLT

20

708-25-15320

BOLT

21

01602-20619

WASHER,SPRING

22

708-25-18571

SHIM¤ 0.50MM

23

708-25-18580

SHIM¤ 0.50MM

24

708-25-15340

SCREW
