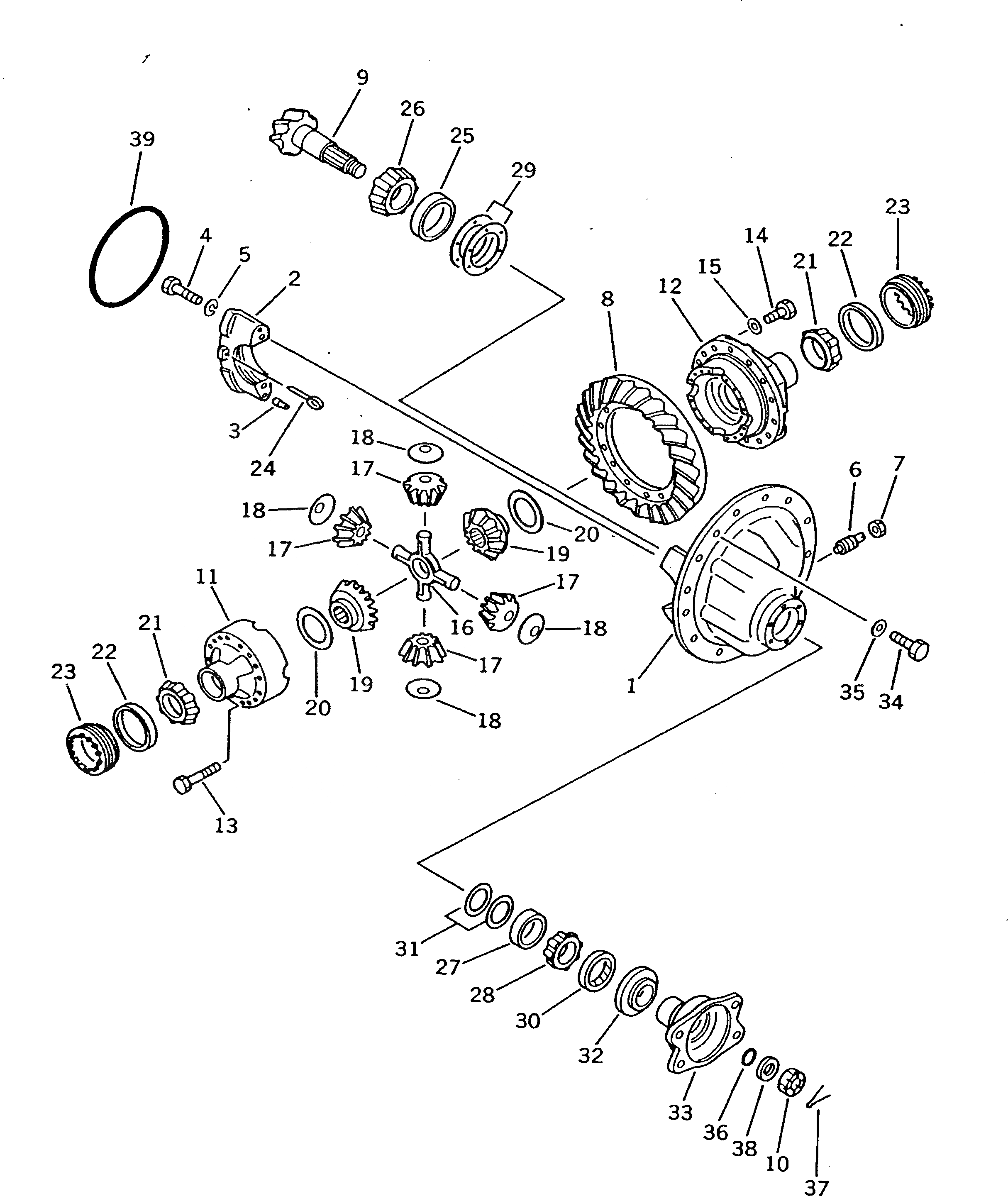

Запчасти Komatsu PW200-1 ПЕРЕДНИЙ МОСТ (ДИФФЕРЕНЦ.) НИЖНЯЯ ГИДРОЛИНИЯ И ЛИНИЯ ХОДА

|1

20K-22-10006

FRONT AXLE ASS'Y

|1

20K-22-10005

FRONT AXLE ASS'Y

|1

20K-22-10004

FRONT AXLE ASS'Y

|1

20K-22-10002

FRONT AXLE ASS'Y

|1

20K-22-11100

CARRIER ASS'Y

1

CARRIER

2

CAP

3

423-22-11161

PIN,DOWEL

4

01010-61485

BOLT

5

20G-22-11180

WASHER

6

20G-22-11710

SCREW,THRUST

7

01583-12012

NUT

|8

20G-22-11202

GEAR ASS'Y

|8

20G-22-11201

GEAR ASS'Y

8

GEAR,BEVEL

9

PINION

|9

PINION

10

01593-12213

NUT

|11

20K-22-11150

CASE ASS'Y

11

CASE

12

CASE

13

01010-31070

BOLT

14

01010-61435

BOLT

|14

01010-31435

BOLT

15

01643-31445

WASHER

16

20G-22-11420

SPIDER

17

20G-22-11410

PINION

18

20G-22-11440

WASHER,THRUST

19

20G-22-11430

GEAR

20

20G-22-11450

WASHER,THRUST

|21

20G-22-11510

BEARING

21

20G-22-11520

CONE,BEARING

22

20G-22-11530

CUP,BEARING

23

20G-22-11160

RING,ADJUST

24

04050-06050

PIN,COTTER

|25

20G-22-11610

BEARING

25

20G-22-11630

CUP,BEARING

26

20G-22-11620

CONE,BEARING

|27

20G-22-11640

BEARING

27

20G-22-11660

CUP,BEARING

28

20G-22-11650

CONE,BEARING

29

20G-22-11310

SHIM¤ 0.10MM

|29

20G-22-11320

SHIM¤ 0.15MM

|29

20G-22-11330

SHIM¤ 0.20MM

30

20G-22-11270

SEAL,OIL

31

20G-22-21370

SHIM¤ 0.18MM

|31

20G-22-11340

SHIM¤ 0.10MM

|31

20G-22-11370

SHIM¤ 0.13MM

|31

20G-22-11351

SHIM¤ 0.15MM

|31

20G-22-11350

SHIM¤ 0.15MM

|31

20G-22-11361

SHIM¤ 0.20MM

|31

20G-22-11360

SHIM¤ 0.20MM

32

20G-22-11240

SLINGER

33

20G-22-11230

YOKE

34

01010-31440

BOLT

35

01643-31445

WASHER

36

07000-13028

O-RING

37

04050-15030

PIN,COTTER

38

20G-22-11260

WASHER

39

20G-22-11190

O-RING
