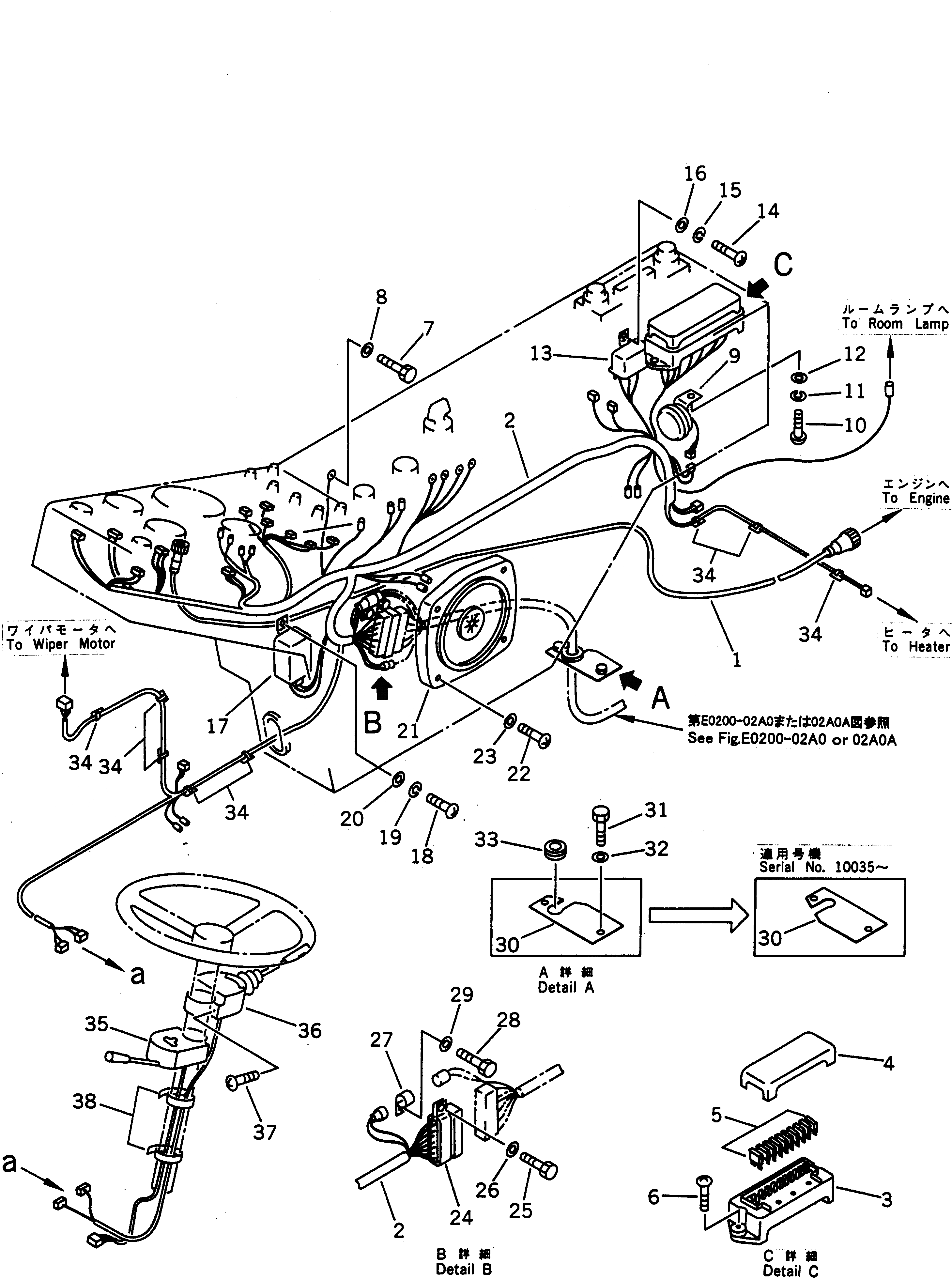

Запчасти Komatsu PW200-1 ПАНЕЛЬ ПРИБОРОВ (ЭЛЕКТРОПРОВОДКА)(№-) КАБИНА ОПЕРАТОРА И СИСТЕМА УПРАВЛЕНИЯ

1

08604-45043

CABLE

2

20K-06-13111

WIRING HARNESS

3

195-Z11-2280

BODY

4

195-Z11-2290

COVER

5

205-06-73180

FUSE¤ 15A

6

01220-40616

SCREW

7

01010-50614

BOLT

8

01643-30623

WASHER

9

175-06-51210

BUZZER

10

01220-40612

SCREW

11

01602-20619

WASHER,SPRING

12

01640-20610

WASHER

13

206-06-41130

RELAY

14

01220-40616

SCREW

15

01602-20619

WASHER

16

01643-30623

WASHER

17

08077-22401

FLASHER

18

01220-40616

SCREW

19

01602-20619

WASHER

20

01643-30623

WASHER

21

20G-06-15120

SPEAKER

22

01220-40420

SCREW

23

01641-20405

WASHER

24

142-06-13530

CLIP

25

01010-51220

BOLT

26

01643-31232

WASHER

27

195-06-41830

CLIP

|27

08036-02514

CLIP

28

01010-51220

BOLT

29

01643-31232

WASHER

30

205-06-72211

COVER

31

01010-51025

BOLT

32

01643-31032

WASHER

33

205-06-72410

GROMMET

34

205-54-72710

CLIP

35

20G-06-12350

SWITCH ASS'Y

36

20G-06-19940

SWITCH

37

01220-40430

SCREW

38

362-43-15360

BAND
